| Prod Model: |
Cartridge Heater |
| Lead Wire Materiallead Wire Material: |
Teflon,Silicone,Fiberglass |
| Tube Materia: |
SS304,SS316,Ss321,Nicoloy600/800/840 |
| Voltage&Wattag: |
Customized |
Product Description
- Product Details
Cartridge heater of Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.
superb heater manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater applications. Whilst a standard range of Cartridge heaters are available, we specialise in designing and manufacturing cartridge heaters to our customers requirements. It is important to choose the correct construction heater to suit your application.
Recommended for temperatures up to 927°C
All Cartridge Heaters are available with a built in Thermocouple Type J or K
Diameter (Metric) [mm]:2.50mm;2.80mm; 3mm; 3.2mm;3.5mm;3.8mm;4mm;4.5mm;5mm; 6mm;;6.5mm;7mm;7.5mm; 8.0mm;9mm;9.53mm; 10mm;10.5mm; 11mm;12mm;12.50mm; 12.7mm; 13mm;13.50,mm;14mm; 15mm;15.88mm;16mm; 18mm; 19mm;20mm;22mm;25mm;28mm;30mm;32mm;35mm
(Non-standard can be customized)
Diameter (Inch) ["]: 1/8; 1/4; 3/8; 1/2; 5/8; 3/4 (non-standard can be customized)
Jacket Material: A stainless steel 304 321 316L B. 310S C. INCOLOY 625 ;INCOLOY 800;NCF800 INCOLOY 840.
The maximum temperature of the heating element jacket: 927 ºC
Resistive material: NiCr8020
High voltage stability (temperature) Rated voltage ≤24V -500V-DC> 24V 1500V-AC
Insulation resistance (500 [V-DC] unheated): ≥50MΩ
The maximum leakage current (253 [V-AC] unheated): ≤0.5mA
Length error: ± 0.5mm
Wattage Tolerance
+5% - 10% (closer tolerances are available upon special request)
Specification Requirements for Ordering
Input voltage: 12V-440V (non-standard can be customized)
Terminal unheated length: <3mm-20mm
Non-terminal unheated length: <3mm-20mm
Technical parameter:| Tube diameter | φ2mm-φ35mm |
| Tolerance | -0.02mm-0.08mm |
| Tube material | SS321, SS316L, INCOLY840, Titanium |
| Insulation material | high-purity Mgo imported from USA |
| Resistance wire | Ni80Cr20 |
| Density | Max 40W/CM² |
| Operating temperature | Max 927ºC |
| Wattage tolerance | +5%,-10% |
| Electrical property | leak current is less than 0.5mA |
| Input voltage and wattage | customized as request. |
Connecting cable:
a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon line (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)
d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)
Please note that our manufacture to customer specification. There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred. If you would like some assistance or advise on the correct lead to use, please do not hesitate to ask.
When ordering Cartridge Heaters, please specify the following information :-
1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Ø of Cartridge Heater.
3.Overall length for a straight Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.

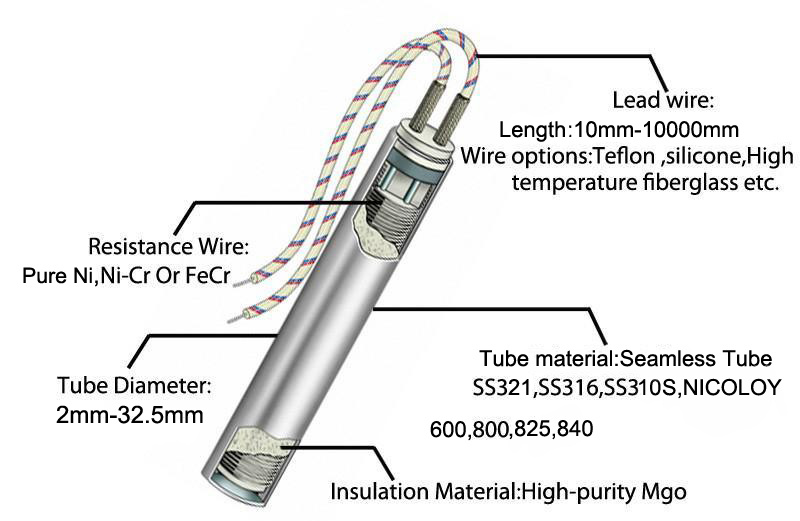

Element component

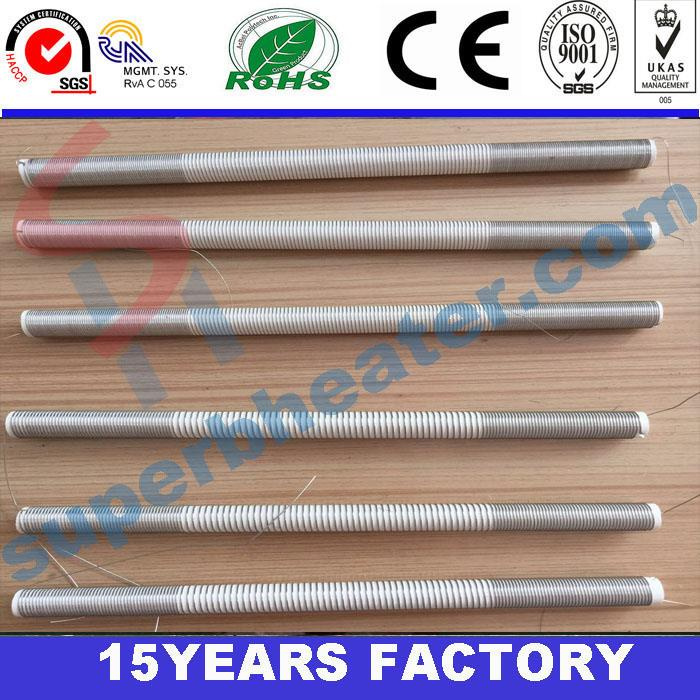

1. China and Europe BGH and KANTHAL High-grade nickel chromium resistance heating wire,
2. Japan and USA MgO core,
3. Seamless Stainless steel tube
4. Built in cable, or swaged in
• Special sizes, wattages, and materials are available upon request;
• Custom-designed to meet your specifications.
• Pin leads are available
Why Choose US:
High-quality materials

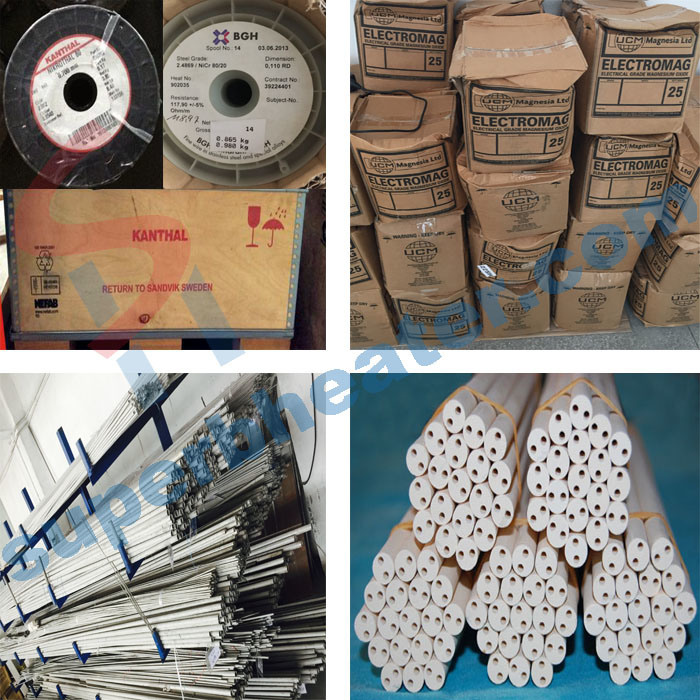

Insulation: UCM(UK) Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...
OUR ADVANTAGES:
1.Minimum order: 5pcs
2.Delivery time: in stock 1-2days ,out stock 3-7days

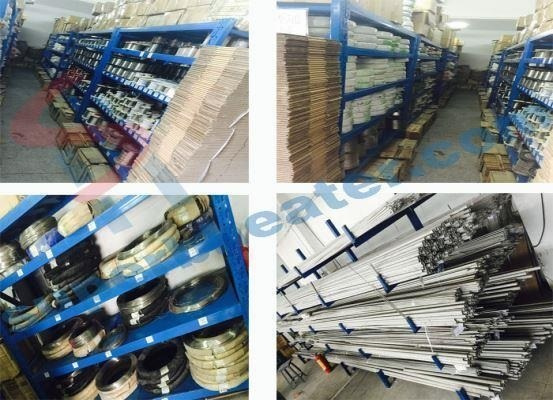

3.More than 100 different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180days
Superb Heater Technology Co.,Ltd
has been focused on the production of 2mm to 40mm China manufacturer high density electric heating element cartridge heater 12v since 1985, which is well-known as one of the leading manufacturers and suppliers of 6.35mm to 23mm standard cartridge heaters Lilin cartridge heaters. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
