Cast Resin Split Core Current Transformer 100/5

Prod Model:	LZCK 310-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Split Core Current Transformer 100/5
Weight:	1kg
Dimension:	50mm X 100mm X 32mm
Rated Load:	<5va
Primary Current:	100A-600A
Accuracy Class:	0.5s or 0.5, 1
Safety Factor Rating(Fs):	< 5
Rated Secondary Current:	1A or 5A
Rated Frequency:	50/60 Hz
The Height Of Above Sea Level:	0-3000m
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Gfuve

Product Description

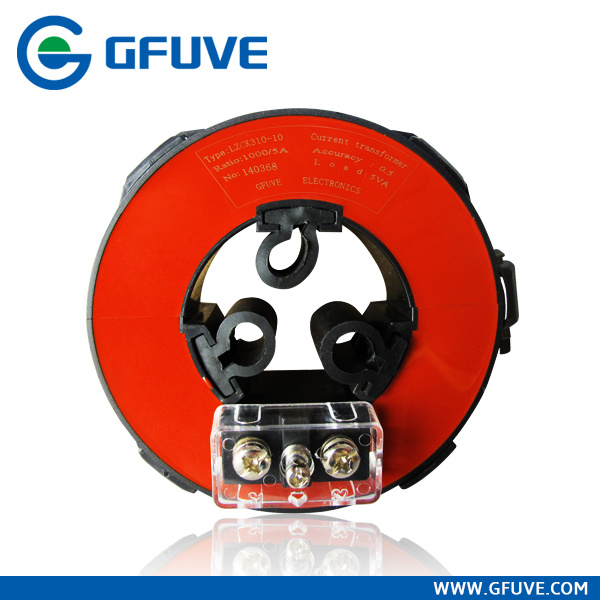

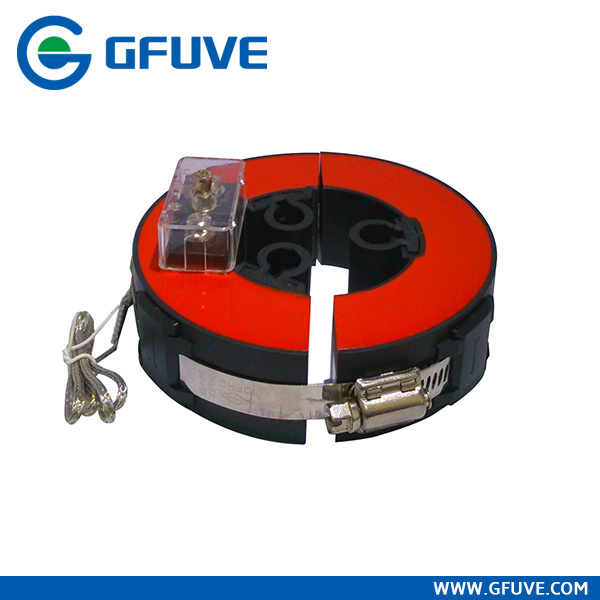

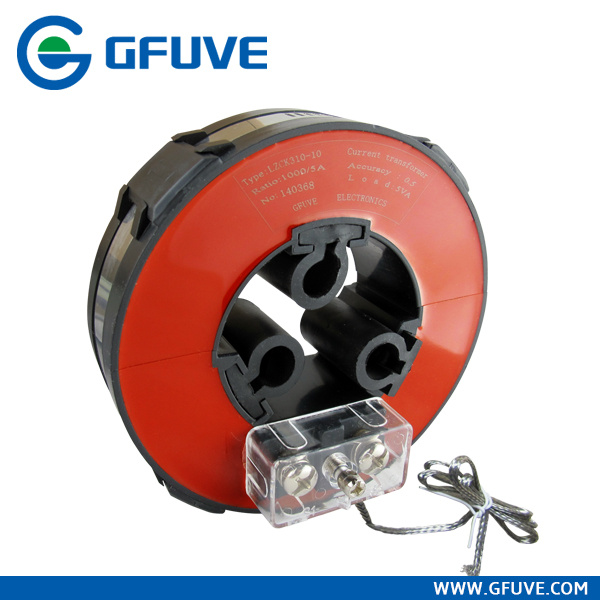

LZCK310-10 100/5A Cast Resin Split Core Current Transformer


LZCK310-10 Cast Resin Split Core Current Transformer 100/5 applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV, and microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.

PARAMETERS
Technical parametersMechanical parametersOperating conditions

Standards	IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Rated primary current	300-600A
Rated load	≤10VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated continuous thermal current	120%I1n
Secondary winding power-frequency voltage	3kV, 1min
Instrument security factor	FS≤10
Dimensions (W×D×H) (mm)	φ50xφ110x32
Weight (kg)	1
Operating temperature	-35°C to +55°C
Daily average temp	<+40°C
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

SELECTION GUIDE
TypeLZCK310-10LZCK310-10PurposeMeasuring current transformerProtection current transformerRatioAccuracy class and rated load(VA)Accuracy class and rated load(VA)

I1/I2	0.5	1	3	10P15	10P10	10P5
300/1	1.5	2.5	2.5		1.5	2.5
400/1	2.5	3.75	3.75		1.5	2.5
500/1	2.5	5	5	1.5	2.5	5
600/1	2.5	5	5	1.5	2.5	5
300/5	2.5	3.75	3.75		1	2.5
400/5	5	7.5	7.5		1.5	3.75
500/5	5	7.5	7.5		2.5	5
600/5	5	7.5	10		2.5	5

SELECTION GUIDE
ModelPrimary rated currentRated loadAperture (mm)Description (mm)Weight (kg)MaterialWater-proof

LMCK055-10	300-1200A	≤10VA	φ55	180×138×52	2	PC	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	PC	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	Resin	silicon case (option)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	Resin	silicon case (option)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	Resin	silicon case (option)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	2.1	Resin	silicon case (option)

ORDERING INFORMATION
be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized.All kinds of different specifications and parameters current transformers can be made according to your needs.
