| Prod Model: |
CAT 6 CABLE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Gray, Black, Yellow, Brown |
| Insulation: |
PE(HDPE) |
| Jacket: |
PVC(Lszh) |
| Nominal Outer Diameter: |
5.2mm |
| Operating Temperature Installation: |
: 0~50/Operation: -30~+75 |
| Brand Name: |
OEM |
| Number Of Conductors: |
8 |
| Usage: |
Computer |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
ISO |
| Condition: |
New |
Product Description

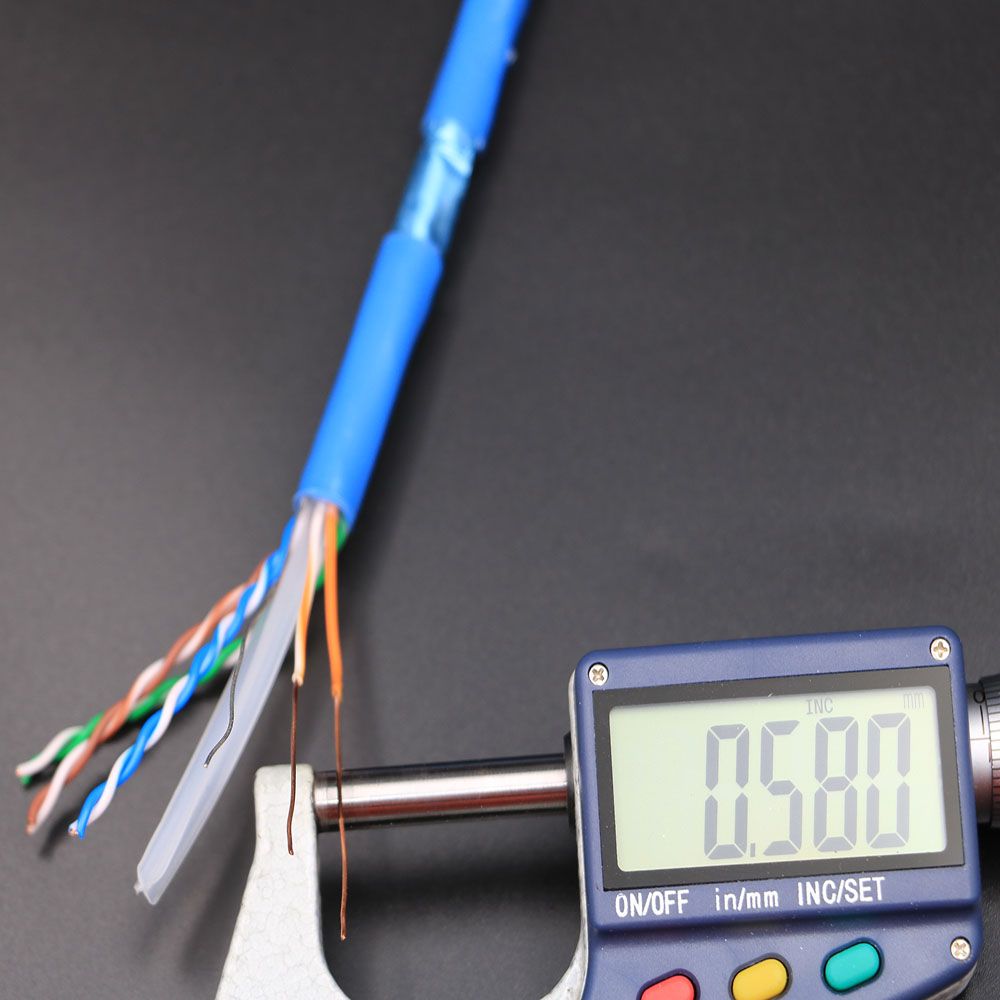

Cat6 ethernet cable
Specifications:
Cat6 Lan Network Cable Construction: Cat6 UTP CableItem | Conductor | Number Of Pairs | Shielding | Drain Wire | O.D. |
Cat6 UTP | 0.57mm BC/CCA | 4 | Non | Non | 6.2mmPVC ROHS,UV,LSZH,UL,Reach |
Cat6 FTP | 0.57mm BC/CCA | 4 | Aluminum Foil | Yes | 6.8mm PVC ROHS,UV,LSZH,UL,Reach |
Cat6 SFTP | 0.57mm BC/CCA | 4 | Aluminum Foil + Alloy Braiding | Yes | 7.2mm PVC ROHS,UV,LSZH,UL,Reach |
UTP Cat6 Outdoor | 0.57mm BC/CCA | 4 | Non | Non | PVC+PE PVC ROHS,UV,LSZH,UL,Reach |
FTP Cat6 Messenger | 0.57mm BC/CCA | 4 | Aluminum Foil | Yes | PVC+Messenger ROHS,UV,LSZH,UL,Reach |
*Application
1.Mainly Used in the Building Correspondence Synthesis Wiring System the Work Area
Correspondence Leading-out Terminal and between the Connection Distribution Frame Wiring.
2. As Well As the Housing Synthesis Wiring System's User Correspondence Leading-out
Terminal Arrives at Place of Exile between Coils'wiring.
*Trade terms
Payment: T/T,L/C,D/P,D/A,Paypal,Western Union,MoneyGram,based on the quantity
Delivery time : Within 7 days,finally based on your quantity
Sample : Sample is free,we cooperate with
Port : Guangzhou/Shenzhen
MOQ : 1 Box
Discount : We can offer when your order is over 100 boxes
*Why do you choose us as your supplier partner ?
1. Professional manufacturer: Professional in making various cables.
2. Products: Using high quality raw material.
3. Win-win Price: Factory price with high quality.
4. Premium custom service: Fast response within 24hours for any requirements.
5. We offer OEM, ODM services.
CONSTRUCTION:
1. Conductor: Solid Bare Copper
2. AWG: 23
3. Conductor Dia(mm): 0.51
4. Insulation: PE
5. Average Thickness(mm): 0.21
6. Min. Point Thickness(mm): 0.17
7. Insulation Dia(± 0.02mm): 0.91
8. Twisting Lay Length(± 20mm): 140
9. Jacket: PVC
10. Average Thickness(± 0.5mm)
11. Min. Point Thickness: 0.43mm
12. Outer Dia(± 0.2MM): 5.0
13. Rip Cord: Yes
14. Weight(kg/km): 32
APPLICATION:
100Base-TX, 100Base-T4, 100VG-AnyLAN, 1000Base-T, (Gigabit Ethernet), ATM
| Frequency MHz | Impedance ohm | RL | Attenuation dB/100m | Next Db/100m | ELFEXT dB/100m | PS NEXT Db/100m | PS FLFEXT Db/100M | Propagation speed m/s |
| db |
| 1 | 100± 15 | 20 | 2 | 65.3 | 63.8 | 62.3 | 60.8 | 0.65C |
| 4 | 23 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
| 8 | 25 | 5.8 | 51.8 | 45.7 | 48.8 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
| 16 | 25 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
| 20 | 25 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
| 25 | 24 | 10.4 | 44.3 | 35.8 | 41.3 | 32.8 |
| 31.25 | 24 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
| 62.5 | 22 | 17 | 38.4 | 27.8 | 35.4 | 24.8 |
| 100 | 20 | 22 | 35.3 | 23.8 | 32.3 | 20.8 |
| 155 | 10± 18 | 19 | 28.1 | 33 | 20 | 29 | 17 |
| 200 | 19 | 32.4 | 31 | 18 | 28 | 15 |
| 310 | 100± 22 | 18 | 41.8 | 28 | 14 | 25 | 11 |
| 350 | 17 | 44.9 | 27 | 13 | 24 | 10 |
