Cat 6 Ethernet Cable Black 100FT (At a Cat5e Price but Higher Bandwidth) Flat Internet Network Cable - CAT6 Ethernet Patch Cable Short - CAT6 Computer Cable

Name: Cat 6 Ethernet Cable Black 100FT (At a Cat5e Price but Higher Bandwidth) Flat Internet Network Cable - CAT6 Ethernet Patch Cable Short - CAT6 Computer Cable
Brand: all-electronics-online.com
SKU: 717106652
Availability: InStock
Rating: 4.5 (42 reviews)

Cat 6 Ethernet Cable Black 100FT (At a Cat5e Price but Higher Bandwidth) Flat Internet Network Cable - CAT6 Ethernet Patch Cable Short - CAT6 Computer Cable

Price:	US $ 0.14-0.5/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT6
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	CCC
Brand:	Sansen

Product Description

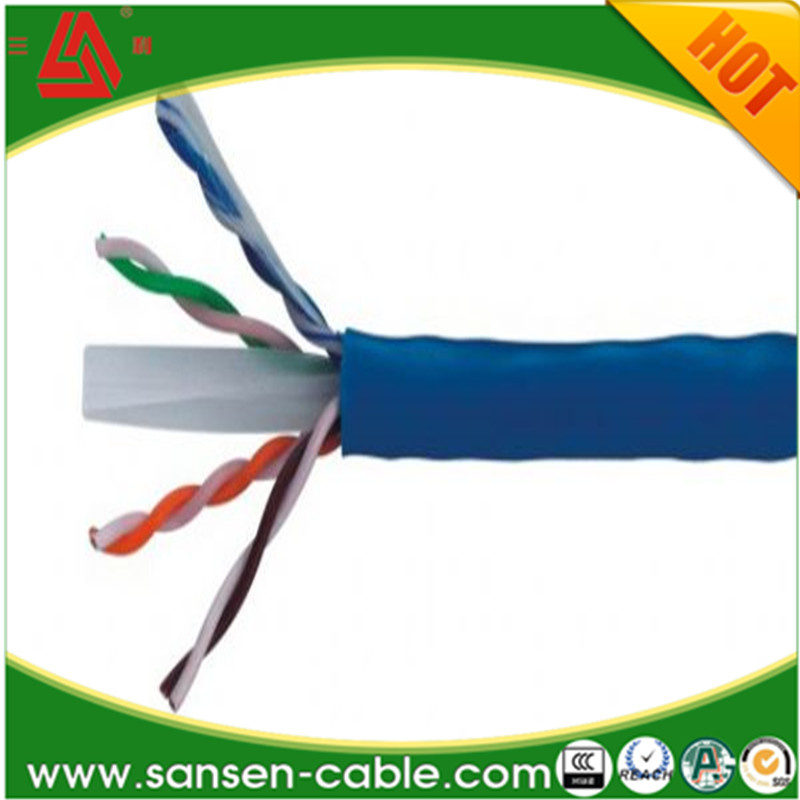

UL, CE, RoHS Listed UTP LSZH CAT6 Network Cable

Specifications:
Meets ANSI/EIA/TIA 568-B. 2-1 requirements
Fire protection CM
The cable meets UL 1581 VW-1 fire safety standard

Description:
Unshielded Copper cable, 4 pairs, category 6
Cable is used for indoor installation

Materials:
Conductive material: Copper
Conductor insulation: HDPE, film-porous-film structure
The cable jacket: PVC

Technical characteristics:
Conductor diameter: 0.55+/-0.002mm
Insulated conductor diameter: 1.03 ± 0.2 mm
Outer cable diameter: 5.3 ± 0.2 mm

Performance Parameters
FREQUENCY	ATTENUATION		NEXT		PSNEXT		ELFEXT		PSELFEXT		RL
(Mhz)	(dB/100m)		(dB)		(dB)		(dB)		(dB)		(dB)
	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum
1	2	1.8	74.3	83.3	72.3	79.3	67.8	77.1	64.8	74.4	20	27
4	3.8	3.5	65.3	76	63.3	72	55.8	65.3	52.8	62	23	34.5
8	5.3	5	60.8	74.1	58.8	69.3	49.7	60.6	46.7	57.6	24.5	37.2
10	6	5.7	59.3	70.8	57.3	67.5	47.8	58.8	44.8	55.9	25	38.1
16	7.6	7.2	56.2	61.3	54.2	58.7	43.7	47.3	40.7	45.8	25	37.7
20	8.5	8.1	54.8	62.1	52.8	58.2	41.8	45	38.8	44.1	25	36.8
25	9.5	9.1	53.3	64.8	51.3	61.8	39.8	43.4	36.8	42.6	24.3	37
31.25	10.7	10.2	51.9	57.4	49.9	55.8	37.9	41	34.9	40.4	23.6	31
62.5	15.4	14.8	47.4	55.5	45.4	54.2	31.9	37.8	28.9	36.2	21.5	30.2
100	19.8	18.8	44.3	58.8	42.3	55.5	27.8	35.4	24.8	33.6	20.1	30.4
150	24.7	23.2	41.7	51.1	39.7	48.4	24.3	34.9	21.3	31.8	18.9	24
200	29	26.7	39.8	48.3	37.8	46.8	21.8	31.5	18.8	29	18	23.4
250	32.8	30.4	38.3	49.4	36.3	47.8	19.8	32.9	16.8	29.7	17.3	21.9

Jacket thickness:	0.4 mm
Weight per 1000 ft (304.8 m):	13.7 kg
Standard package:	305 m (1000 ft)

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

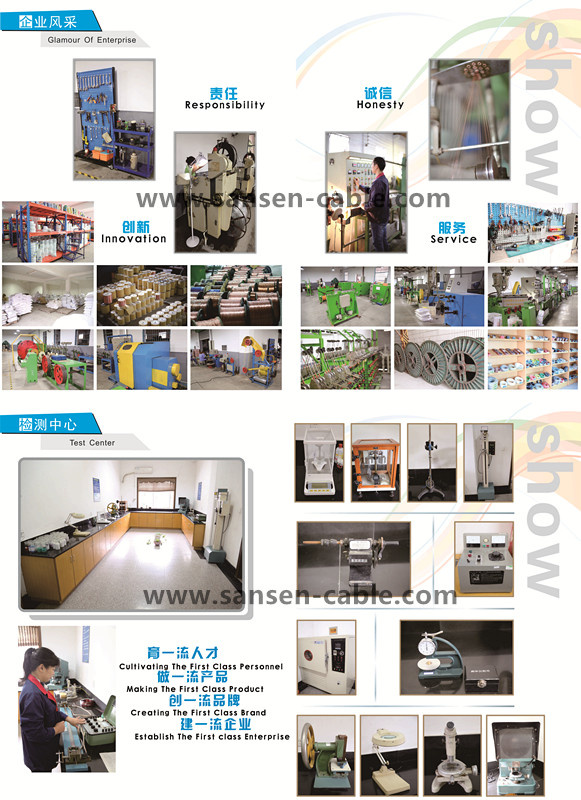

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
