| Prod Model: |
WB-LC-32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Solid Bare Copper |
| AWG: |
24 |
| Insulation: |
HDPE |
| Jacket: |
PVC |
| Application: |
Submarine Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
CCC |
Product Description

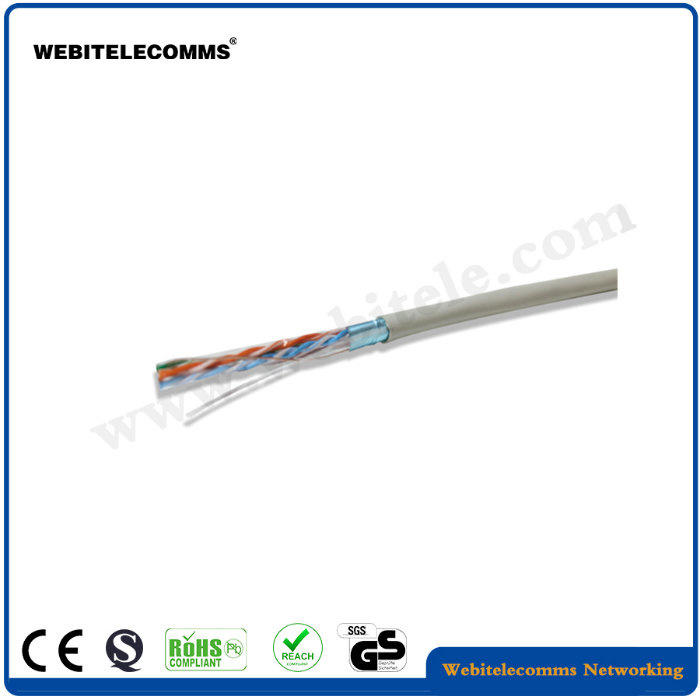

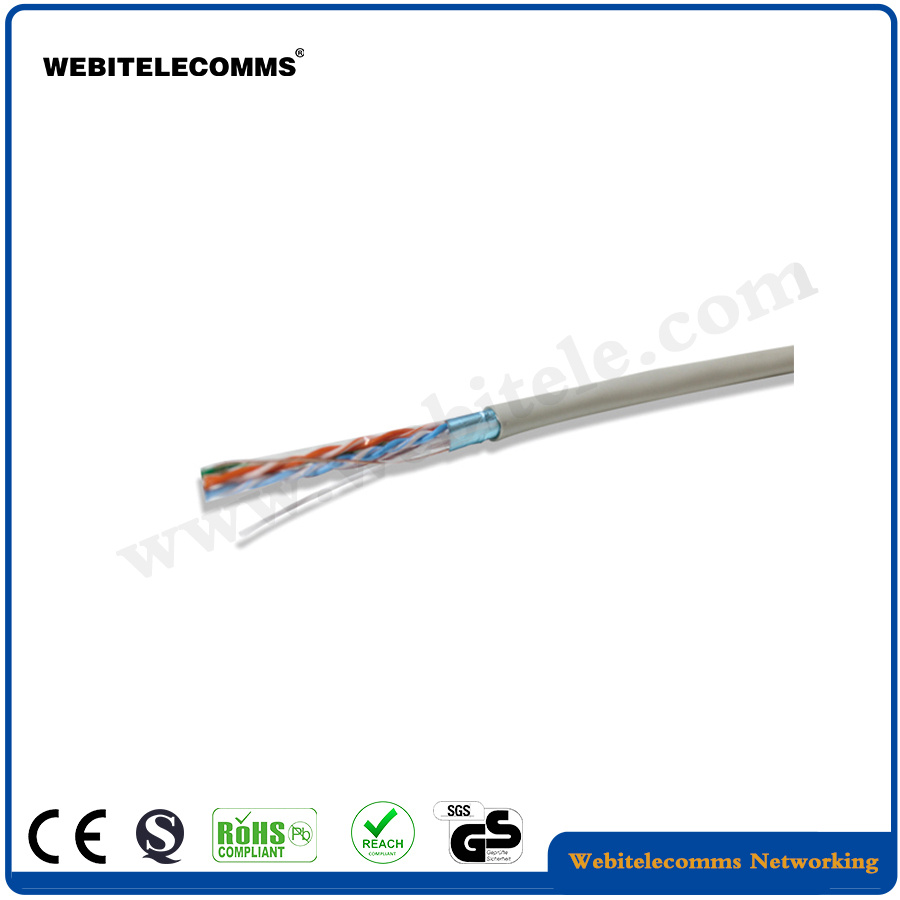

24AWG FTP Cat5e Lan Cable comply with the UL requirements
Specifications
- 24AWG ftp Cat5e Lan Cable,4 twisted pair,0.5-0.512mm
- Conductor:solid or stranded BC,CU,CCA,CCAU,CCS,etc
- New and environmental-friendly PVC jacket(minimum thickness of the shell 0.4 mm)
- The external cable diameter of 5.1 ± 0.2 mm
- bending radius: 8xO during installation, 6xO with vertical Cabling, 4xO the horizontal cabling
- Standard packing: 18.5 x 37.5 x 36.5 cm (W x H x D) - 305 m
- Weight 1 km of cable: 31.8 kg
- Operating temperature: -20 ° C - +75 ° C
- Fire: CM
Electrical Characteristics
Features
- 24AWG ftp Cat5e Lan Cable Comply with the UL requirements
- Transmission velocity:200Mbps
- Premium quality
- Guaranteed working year for 10~15 year
- Pass ISO 9001:2000,UL,CE Standard,ROHS,FLUKE,etc
- All cables far exceed the cable requirements TIA/EIA 568B & ISO/IEC11801 , UL444/UL1581,etc
- Far exceed the cable requirements for NEXT,attenuation,structural renturn loss,attenuation-to-crosstalk ratio (ARC) and impedance
- Application: 100 Base-TX, 100 Base-T4, 100VG-AnyLAN, 1000Base-T, ATM
- Reasonable price and good service for you
PACKAGE & DELIVERY:
20 feet container: 1050 boxes
40 feet container: 2100 boxes
40 hq container : 2500 boxes
Packing detail:
inner box:305M/1000ft cable-size: 34.5*34.5*19.5 CM ;carton: 61.5*35.8*36.5(3 boxes in a carton)
wooden drum can be supplied.
Delivery Detail: after checking the box and printing detail, 7-15 days for delivery
| Parameter | Cat5 lan cable
and Class D
with additional
requirements TSB95
and FDAM 2 | Cat5e lan cable ('568-A-5) |
Cat6 lan cable Class E
(Performance at
250 MHz shown
in parentheses) |
| Specified frequency range | 1-100 MHz | 1-100 MHz | 1-250 MHz |
| Attenuation | 24 dB | 24 dB | 21.7 dB
(36 dB) |
| NEXT | 27.1 dB | 30.1 dB | 39.9 dB
(33.1 dB) |
| Power-sum NEXT | N/A* | 27.1 dB | 37.1 dB
(30.2 dB) |
| ACR | 3.1 dB | 6.1 dB | 18.2 dB
(-2.9 dB) |
| Power-sum ACR | N/A | 3.1 dB | 15.4 dB
(-5.8 dB) |
| ELFEXT | 17 dB
(new requirement) | 17.4 dB | 23.2 dB
(15.3 dB) |
| Power-sum ELFEXT | 14.4 dB
(new requirement) | 14.4 dB | 20.2 dB
(12.3 dB) |
| Return loss | 8 dB*
(new requirement) | 10 dB | 12 dB
(8 dB) |
| Propagation delay | 548 nsec | 548 nsec | 548 nsec
(546 nsec) |
| Delay skew | 50 nsec | 50 nsec | 50 nsec |
