Cat5e LAN Cable for High Quality 305m

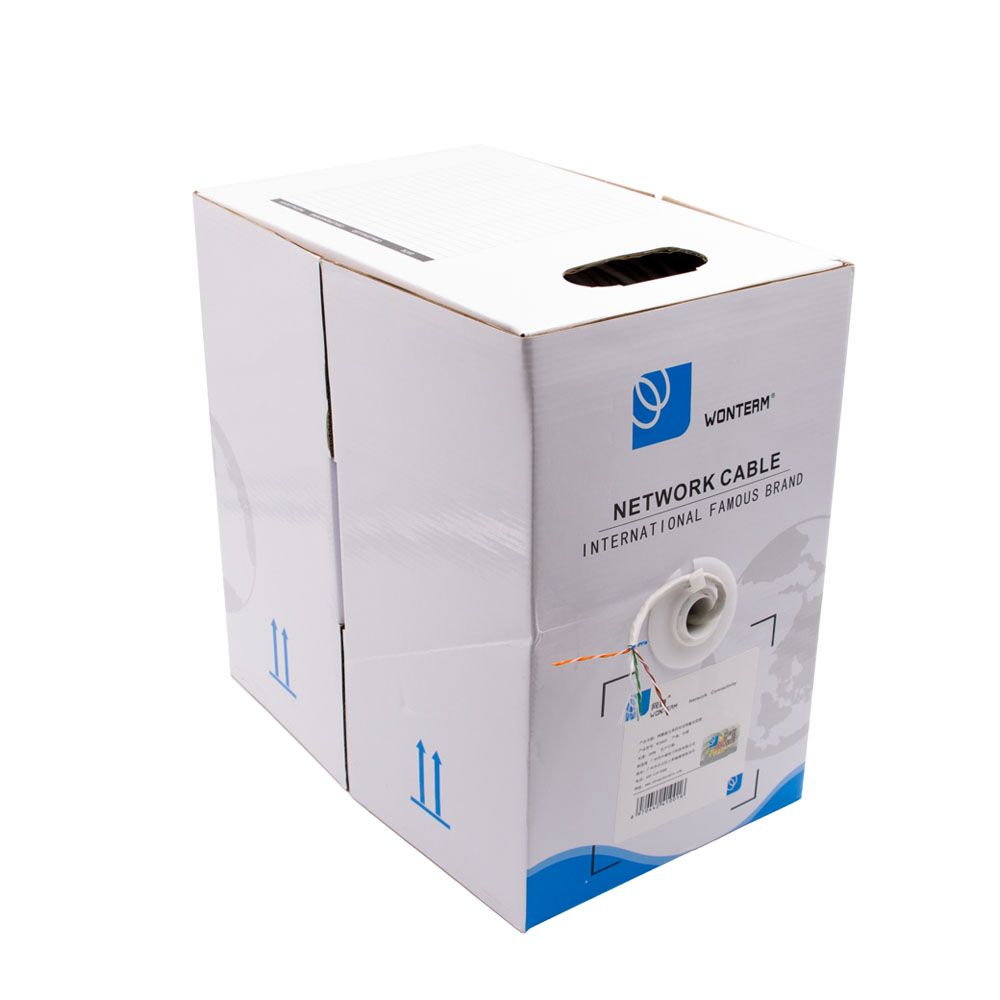

Name: Cat5e LAN Cable for High Quality 305m
Brand: all-electronics-online.com
SKU: 670185075
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	US $ 15-50/Box
Trade Terms:	FOB,CIF,EXW
Min Order:	200/Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	high quality cat5e lan cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Option
Insulation:	PE
Nominal Outer Diameter:	5.2mm
Operating Temperature Installation:	0~50/Operation: -30~+75
Application:	Networking
Conductor Material:	Copper
Type:	Cat 5
Certification:	RoHS
Brand:	Howpower

Product Description

High quality cat5e LAN cable
Communication Cable and Wires

CHARACTERISTICS
Cat5 cat5e cat6 LAN cable

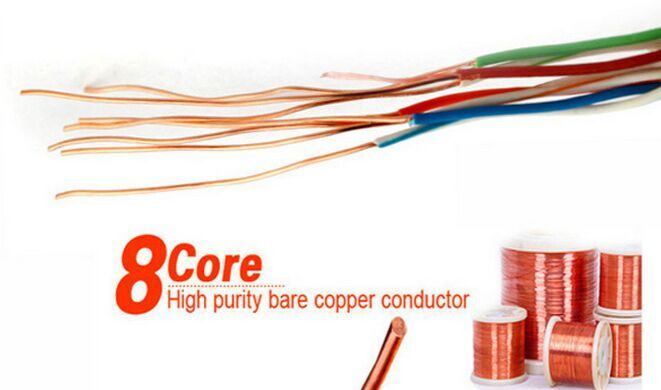

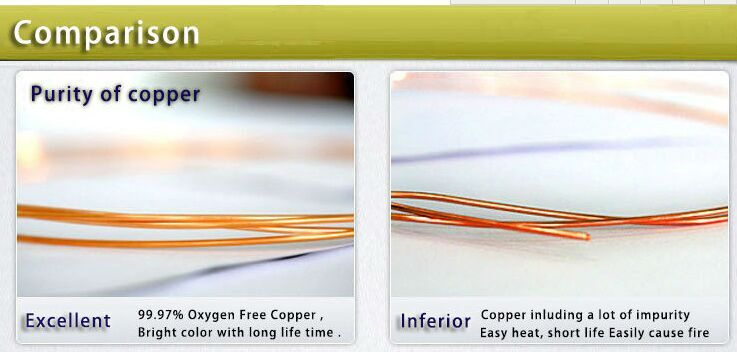

1. Cable Inner material: OFC/PURE COPPER/CCA/CCA/AL/Aluminum Foil Shielded twisted pairs, FRPE cable
2. LAN cableConductor: 24AWG/26/28(0.57mm)
3. Insulation: PE
4. Jacket: PVC FT4
5. Certification: UL. CE. RoHS Compliant
6. Compliance: ETL verified ANSI TIA/EIA568-2, UL, Subject 444, (UL)c(UL) type CMR/CMG, Type CM/CMH. NEC Srticle 800Type CMP or CM. ISO/IEC 11801. RoHS Compliant.
7. Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
8. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc, Cat3, cat5e, cat6 are avilable, and cat5e and cat6 are already.

We can produce network cable as per customer's request.

Frequency MHz	Impedance ohm	RL	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
Frequency MHz	Impedance ohm	db	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
1	100±15	20	2	65.3	63.8	62.3	60.8	0.65C
4		23	4.1	56.3	51.7	53.3	48.7
8		25	5.8	51.8	45.7	48.8	42.7
10		25	6.5	50.3	43.8	47.3	40.8
16		25	8.2	47.3	39.7	44.2	36.7
20		25	9.3	48.5	37.7	42.8	34.7
25		24	10.4	44.3	35.8	41.3	32.8
31.25		24	11.6	42.9	33.9	39.9	30.9
62.5		22	17	38.4	27.8	35.4	24.8
100		20	22	35.3	23.8	32.3	20.8
155	10±18	19	28.1	33	20	29	17
200	10±18	19	32.4	31	18	28	15
310	100±22	18	41.8	28	14	25	11
350	100±22	17	44.9	27	13	24	10

FAQ

Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 10000m, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Shenzhen Taiyue Communication Cable Co., Ltd., is specialized in producing & exporting LAN cable for 10 years,

Our main products including:LAN cables, Patch cord, USB cables, power cords, computer cables, optical fiber cables, coaxial cables, etc.

With years of development, Taiyue has built up 3 factories, 2 shops and 2 branch office, and has built up good relationship with numerous famous enterprises in domestic and aboard, Our products are selling well among Europe, America, Asia, Australia, Egyptian and other countries.

Our factory is located in Guangzhou, China, which covers more than 8, 000 square meters with more than 200 energetic staff.By taking advantage of the latest technology in domestic and overseas fields, and combining our professional manufacturing experience, Taiyue has been an entity with large-scale production ability.

The ever-pioneering TAIYUE people has set up the solid philosophy "promote and innovate, quality-oriented, win competition by quality, set up PULI brand", in order to detect the future trend of information intellectualization with our unique expertise in the industry.Based in Guangdong, with vision toward the market covering China and the world, cherishing confidence and releasing enthusiasm, we will make up our way to a glorious future.
