Cat5e LAN Cable UTP Cable 100m Grey

Name: Cat5e LAN Cable UTP Cable 100m Grey
Brand: all-electronics-online.com
SKU: 799548715
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 18.8-68.42/Box
Min Order:	50/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WT5803
Color:	White, Gray, Black, Yellow, Brown
Insulation:	PE(HDPE)
Jacket:	PVC(LSZH)
Nominal Outer Diameter:	5.2mm
Operating Temperature Installation:	: 0~50/Operation: -30~+75
Shield:	Aluminum-Mylar Tape/Polyester Tape
Brand Name:	OEM
Number Of Conductors:	8
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Short Message
Certification:	RoHS
Condition:	New

Product Description

UTP Cat5e 4Pair 24AWG 0.45mmCCA PVC

Product Description

1. Conductor: Solid Bare Copper
2. AWG: 24
3. Conductor Dia(mm): 0.51
4. Insulation: PE
5. Average Thickness(mm): 0.21
6. Min. Point Thickness(mm): 0.17
7. Insulation Dia(± 0.02mm): 0.91
8. Twisting Lay Length(± 20mm): 140
9. Jacket: PVC
10. Average Thickness(± 0.5mm)
11. Min. Point Thickness: 0.43mm
12. Outer Dia(± 0.2MM): 5.0
13. Rip Cord: Yes
14. Weight(kg/km): 32

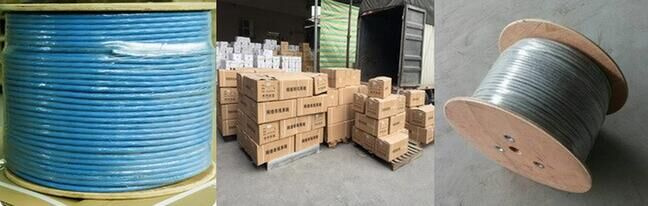

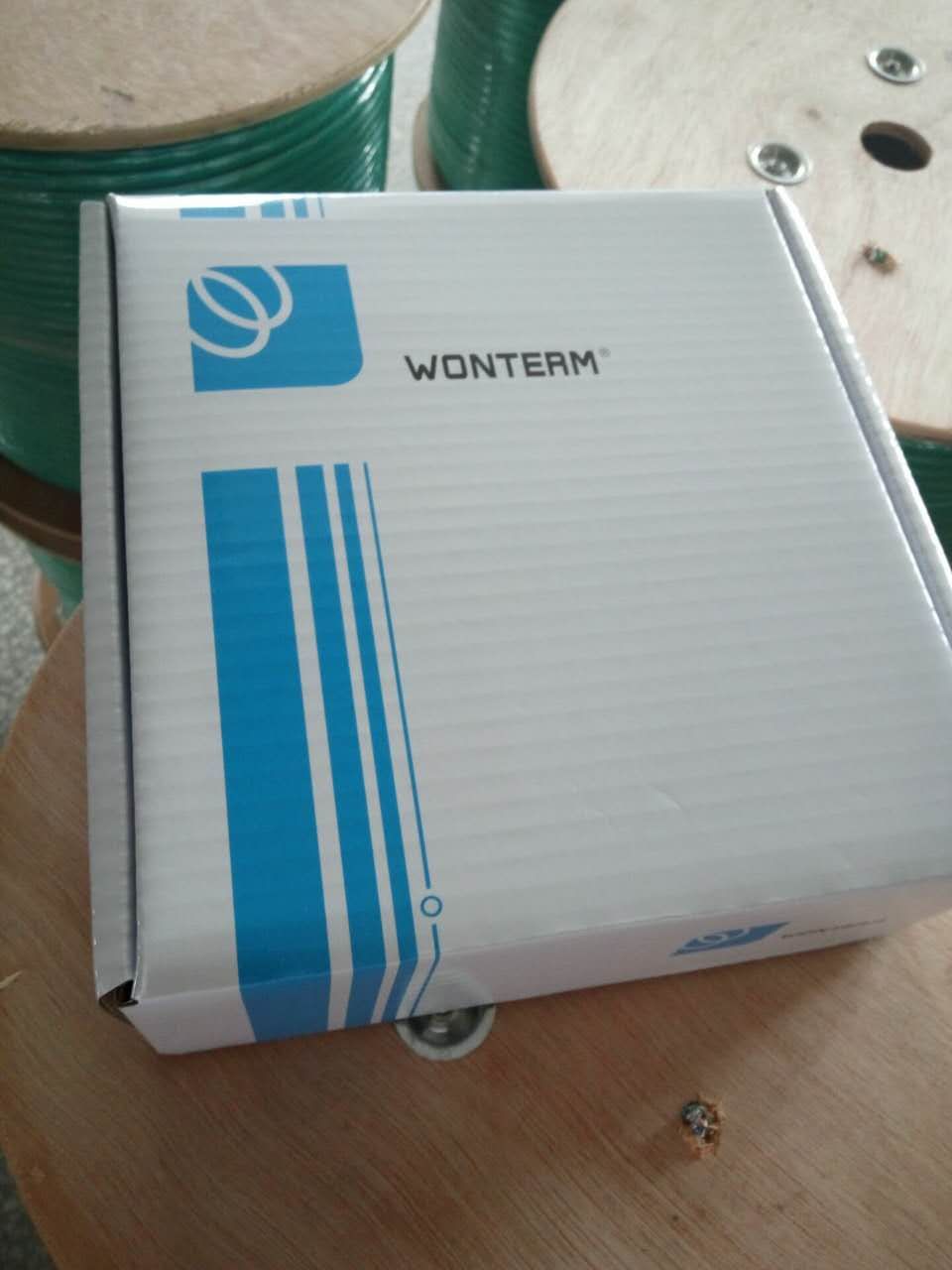

Cat5e Cable Packing:

Goods Name	Packing Type	Pack (Cm)		Packing		Dimension(Cm)			Unit.CBM	Qty/Container
Goods Name	Packing Type	Gift Box	Carton	Gift Box	Carton	L	W	H	Unit.CBM	20GP	40HQ
UTP Cat5e	Gift Box	193535	423434.5	305M/Roll	2Rolls/Carton	42	34	34.5	0.049	1060	2774
FTP/SFTP Cat5e	Gift Box	213535	454040	305M/Roll	2Rolls/ Carton	45	40	40	0.072	722	1880
Cat5e Outdoor	Wooden Reel	323222.5	663524	305m/Reel	2ReelS/Carton	66	35	24	0.055	1000	2400

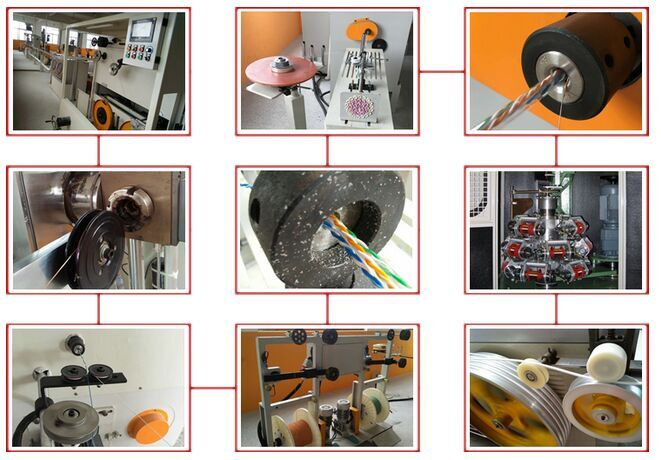

Production line:

Advantage:

1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Well-trained and experienced staffs to answer all your inquires in fluent English.

3. Distributorship are offered for your unique design and some our current models.

4. Protection of your sales area, ideas of design and all your private information.

5.Strictly conform to CE,ROHS,ISO certificate

6.Quick delivery time(20ft,7~15days)
