Cat5e RJ45 Punch Down Keystone for Cat5e UTP Cables

Name: Cat5e RJ45 Punch Down Keystone for Cat5e UTP Cables
Brand: all-electronics-online.com
SKU: 791339345
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 0.4-1.5/Piece
Min Order:	2000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5e-90/10p
Standard:	T568-B
Usage:	Workstation
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

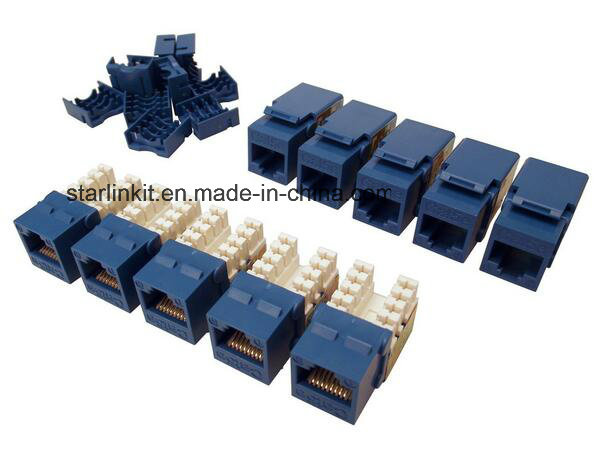

Category 5E Keystone Jack UTP 90 degree, 10pcs/bag, Blue

RJ45 to 110 Category 5E Keystone Jack is designed to support 1000 Base-T Ethernet over copper. Category 5E Keystone jacks snap into a wall plate, surface mount box or keystone patch panel to provide a termination point for backbone/horizontal network wiring. Keystone style jacks are designed to snap into any standard keystone port with no tools required. Color coded 110 clips make wire termination fast and simple and feature the appropriate color code for either 568A or 568B terminations. Category 5E is a high speed networking standard, providing a backbone for transmission speeds up to 1000 Base-T and is backwards compatible with both 10 Base-T and 100 Base-T.

Compatible with Shaxon and industry standard keystone plates and surface mount boxes
Dual 568 A/B color coded
10/100/1000 Base-T Ethernet compliant
10 pack in easy open bag for multiple outlet installation
Easy snap-in installation

Housing	PC UL94V-0
PCB	1.FR4 1.6mm(0.04") thickness. 2.4 layers.
Contact	1.PC Ul94V-0 2.Phosphor bronze: 0.45mm(0.018") Diameter 3.Gold plating: 3 U"/0.0762um ~ 50 U"/1.27um
Electrical	1.According to UL 1863. 2.Current rating: 1.5 Amp Max. 3.Voltage rating: 150 Volts. 4.Contact resistance: 20 m-ohm. 5.Insulation Resistance: 500M-ohm. 6.Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min.
Overall Diameter	1.Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements. 2.Meet TIA/EIA TSB-40. 3.Meet ISO/IEC Generic Cabling Standard 11801. 4.Meet CENELEC Generic Cabling Standard EN50173.
Performance	Pass FLUKE test
