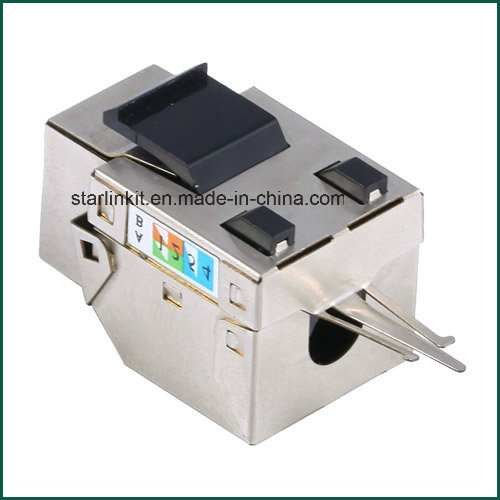

Cat5e Shielded Metal Punch Down Keystone for Cat5e STP Cables

Name: Cat5e Shielded Metal Punch Down Keystone for Cat5e STP Cables
Brand: all-electronics-online.com
SKU: 791336935
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 0.4-1.5/Piece
Min Order:	2000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-5EJACK+FTP90
Standard:	T568-B
Usage:	Workstation
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

Shielded FTP Cat5e Keystone Jack 90 degree

ELECTRICAL:

1. Voltage rating: 125 VAC RMS

2. Current rating: 1.5 AMP

3. Contact resistance: 100 Milliohms MAX

4. Insulation resistance: 1000 Megohms MIN @ 500 VDC

5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL:

1. Storage: -40°TO +85°

2. Operation: 0°TO 70°

Compliant to TIA/EIA 568B Category 5e

Mates with modular plug conforming to FCC part 68, Subpart F.

MECHANICAL:

1. Shield material: Brass T=0.30mm Nickel plating

2. Housing material: PC UL94V-0

3. Insert material: Flame retardancy ABS UL94V-0

4. PCB material: FR-4 Thickness:1.6mm

5. Contact material: Phosphor bronze stamp PIN T=0.35mm

6. IDC Contact material: Phosphor bronze T=0.50mm with nickel plating

7. Wire: AWG 24-26

ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
SL-5EJACK+FTP90	FTP Cat.5e Keystone Jack	500 PCS	402953 cm	11 kg

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
