CAT6 FTP Copper Jump Wire, RJ45 High Speed Patch Cord, Network Patch Cable

Name: CAT6 FTP Copper Jump Wire, RJ45 High Speed Patch Cord, Network Patch Cable
Brand: all-electronics-online.com
SKU: 827364265
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 1-5/Meter
Min Order:	305/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LK-S7PCCB002
Sample:	Avaliable
Color:	Blue
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 6
Certification:	UL

Product Description

UTP/FTP CAT5E CAT6 CAT6A Patch Cable Patch Cord

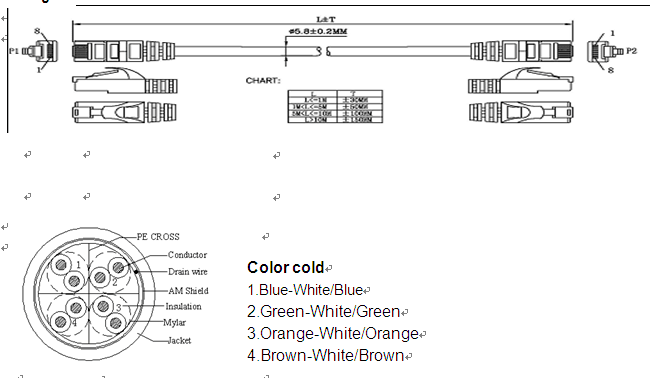

Drawing:

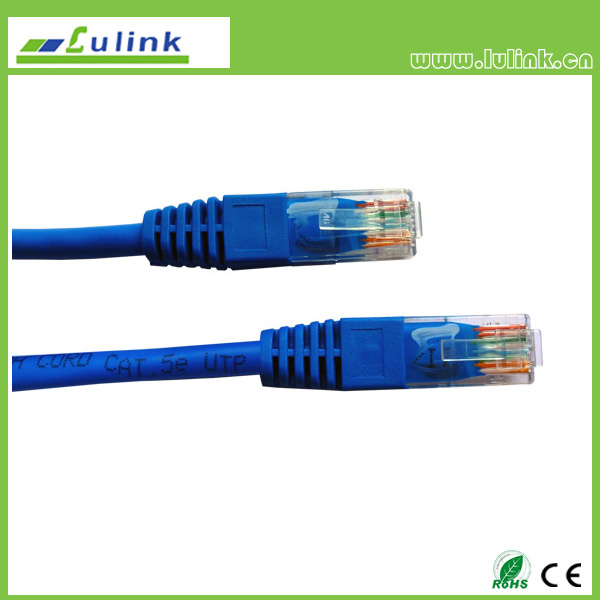

Cat5e UTP Patch Cable:

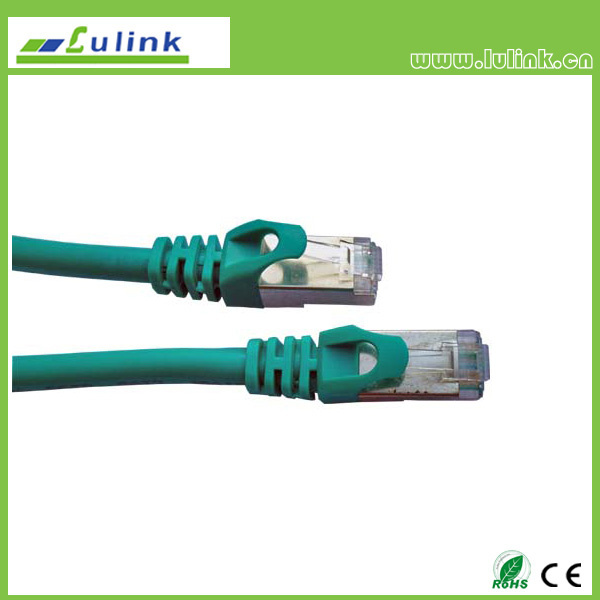

Cat5e FTP Patch Cable:

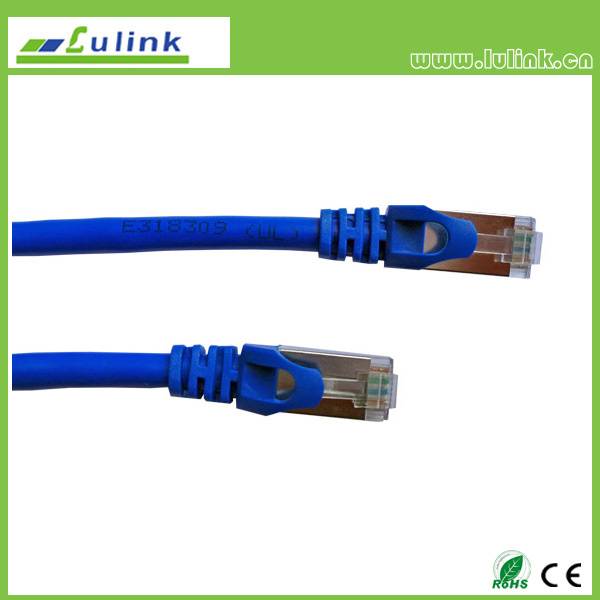

Cat6 FTP Cable:

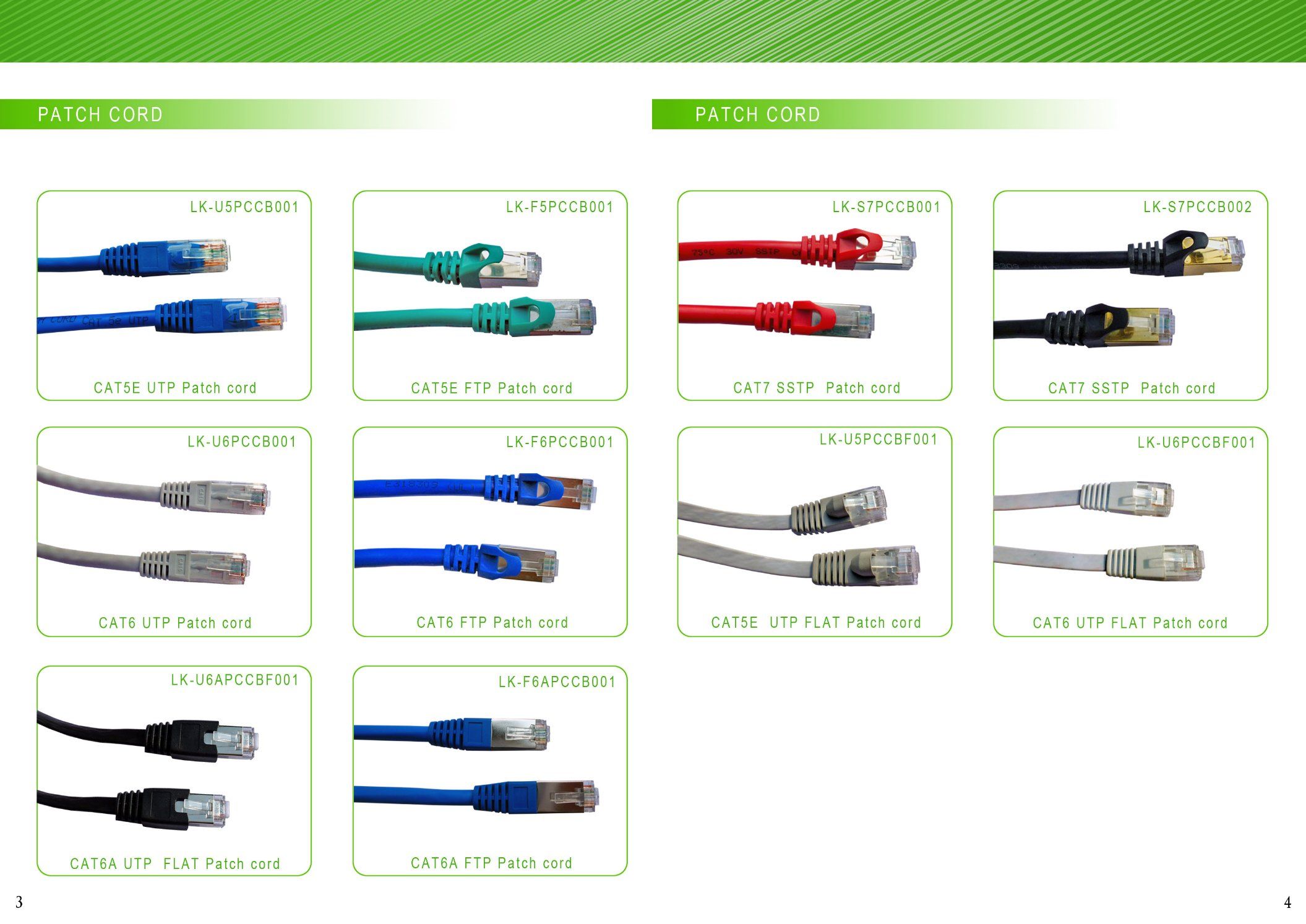

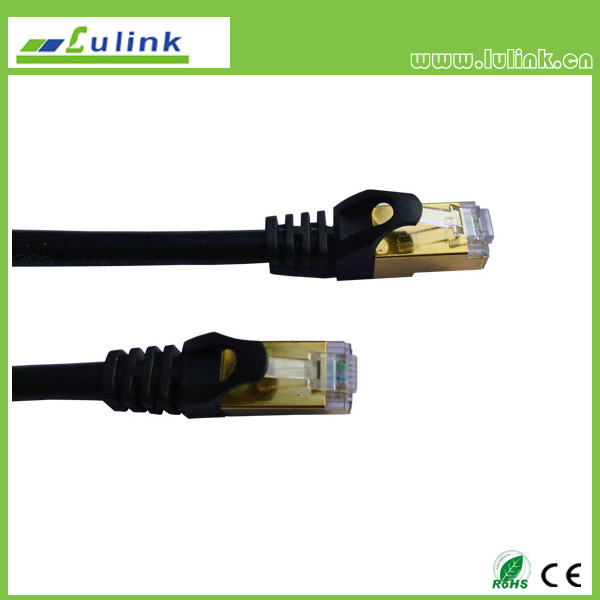

Similar Cables:

Specification: cat6, FTP, 4PX24AWG+PVC+Foil+RJ45X2PCS, gold plated pins, pass fluke test, different length for choose.

ITEM		CAT6 FTP 7/0.20 patch cable
No. of Cond.		4 Pair
Conductor	Material	Bare Copper Wire Stranded
	Construction	24AWG; 7 / 0.20 ± 0.008 mm
Insulation	Material	Polyethylene
	thickness	0.19±0.02 mm
	Diameter	0.98 ± 0.05 mm
Inner Layer	Direction	S
	Pitch REF	30mm underneath
Outside Layer	Direction	S
	Pitch REF	100±10mm
Cross	Material	Polyethylene
	Diameter	4.0×4.0 ± 0.1 mm
Shielding1	Material	Mylar Spirally Wrapped
	Coverage	100% coverage with 25% overlapping
Drain Wire	Material	Aluminum Magnesium metal
	Construction	1 / 0.40 ± 0.008 mm or 7/0.12± 0.008 mm
Shielding2	Material	Aluminum Mylar Spirally Wrapped
	Coverage	100% coverage with 25% overlapping,face inside
	Material	PVC
Jacket	thickness	0.50 mm(Min. Thichness: 0.40mm)
	Diameter	6.3 ± 0.20 mm
	Color	optional
marking	optional
ELECTRICAL PROPERTIES
Insulation Resistance		Min. 5000 mega ohms-km at 20ºC
Dielectric Test		1000V DC /1 min ; No Breakdown
Temperature Rating		60ºC
Voltage Rating		30V
