| Prod Model: |
cat6 cable |
| Cable Use For: |
Computer |
| Cable Conductor: |
28AWG Bare Copper |
| Cable Material: |
PVC and Copper |
| Cable Length: |
as Customer's Request |
| Cable Color: |
Black ,Blue Color |
| Cable Warranty: |
12 Months |
| Cable Packing: |
Poly Bag,Blister ,Gift Box |
| Cable Certification: |
Ce,RoHS |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 6 |
| Certification: |
VDE |
| Model: |
Lbcable |
| Brand: |
Lbcable |
Product Description

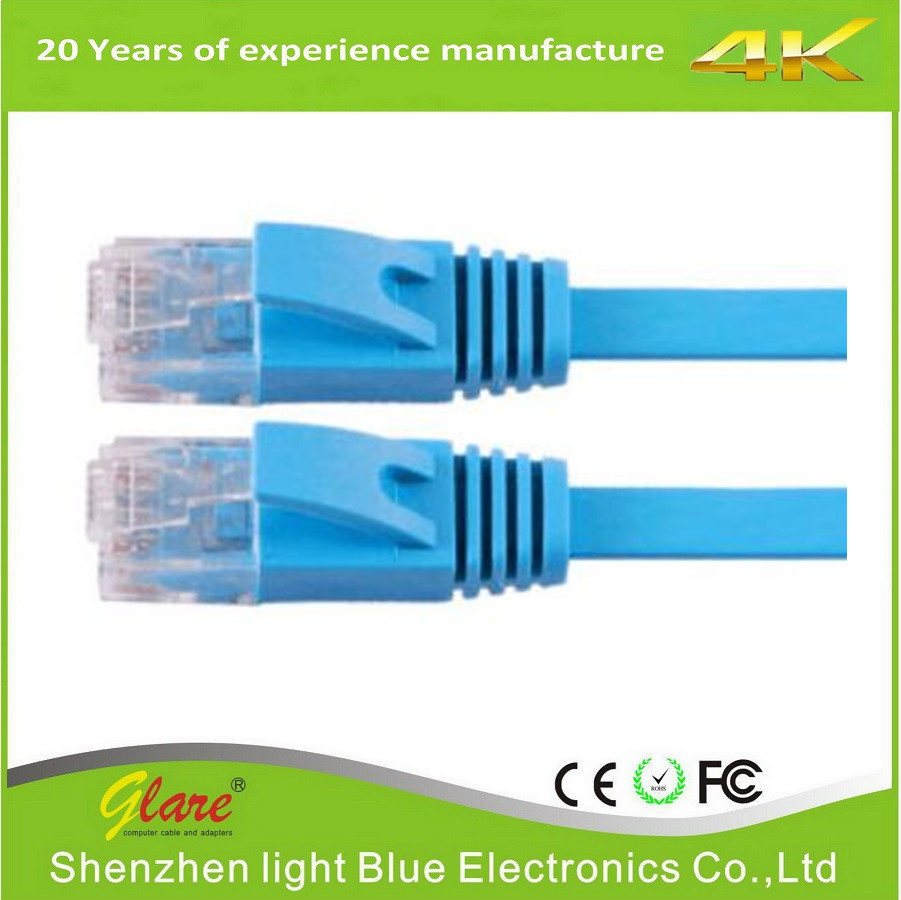

CAT6 Shielded Jumper cables
Cable Construction:
| Item | Conductor AWG | Number Of Pairs | Shielding | Drain Wire | O.D. |
| Cat5e UTP | 24 (0.51mm) | 4 | Non | Non | 5.4mm |
| Cat5e FTP | 24 (0.51mm) | 4 | Aluminum Foil | Yes | 6.0mm |
| Cat5e SFTP | 24 (0.51mm) | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.5mm |
| Electrical Characteristics: | | |
| Property | | Value | Units |
| DC Conductor Resistance Max. | | 9.38 | Ω/100m |
| Resistance Unbalance Max. | | 2% | |
| Mutual Capacitance Nom. | @1kHz | 5.6 | nF/100m |
| Capacitance Unbalance pair/ground Max. | @1kHz | 160 | pF/100m |
| Characteristic Impedance | 0.772 -100 MHz | 100+15 | Ω |
| Maximum Delay Skew | 1.0-100 MHz | 45 | ns/100m |
| Velocity of Propagation | | 68% | Speed of Light |
| Maximum Propagation Delay | 10 MHz | 545 | ns/100m |
| Application: |
| Suitable for both voice and high speed data applications in Local Area Network | Compliances | AS/NZS 3080:2003 (Cat 5e) |
| | ISO/IEC 11801 Ed.2 (Cat 5e) |
| 10 Base-T (IEEE 802.3)_ | | ANSI/TIA 568-C.2 (Cat 5e) |
| 100 Base-T (IEEE 802.3)_ | | AS/CA S008:2010 |
| 4/16 Mbps Token Ring (IEEE 802.5)_ | | UL Verified (Cat 5e) |
| 52/155 Mbps ATM_ | | IEC 60332-1 |
| 100 VG-AnyLan | Conductor | Plain Annealed Copper Wire (24 AWG) |
| 100 Mbps TP-PMD (ANSI X3T9.5)_ | Insulation | High Speed Data Grade Polyolefin |
| 1000 Base-T (Gigabit Ethernet)_ | | Pair 1 - White/Blue & Blue |
| Broadband and baseband analogue video_ | | Pair 2 - White/Orange & Orange |
| Digital video_ | | Pair 3 - White/Green & Green |
| Environmental Performance | | Pair 4 - White/Brown & Brown. |
| Installation Temperature -10°C to 40°C | Sheath | Flame Retardant PVC |
| Operating Temperature -20°C to 60°C | | Cable printed with metre marking |
| Frequency: |
| MHz | dB/100m (max.) | dB (min.) | dB (min.) | dB/100m (min.) | dB/100m (min.) | dB (min.) |
| 0.772 | 1.8 | 67 | 64 | - | - | - |
| 1 | 2.04 | 65.3 | 62.3 | 64 | 61 | 20 |
| 4 | 4.05 | 56.3 | 53.3 | 52 | 49 | 23 |
| 8 | 5.77 | 51.8 | 48.8 | 45.9 | 42.9 | 24.5 |
| 10 | 6.47 | 50.3 | 47.3 | 44 | 41 | 25 |
| 16 | 8.25 | 47.2 | 44.2 | 39.9 | 36.9 | 25 |
| 20 | 9.27 | 45.8 | 42.8 | 38 | 35 | 25 |
| 25 | 10.42 | 44.3 | 41.3 | 36 | 33 | 24.3 |
| 31.25 | 11.72 | 42.9 | 39.9 | 34.1 | 31.1 | 23.6 |
| 62.5 | 16.99 | 38.4 | 35.4 | 28.1 | 25.1 | 21.5 |
| 100 | 21.98 | 35.3 | 32.3 | 24 | 21 | 20.1
|
Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.
Package information
1pcs/poly bag
250pcs/carton
carton size:46*30*25cm
FAQ
With years of export experience along with excellent quality, advanced services and competitive prices, YITAILI has won numerous customers' trust and support.More detail please contact us.
Payment term?
(1)Payment:T/T only,30%deposit,the balance before delivery.
(2)Production leading time:10-15days,see qty to confirm.
(3)Shipping out:Guangzhou or Shenzhen
Certification
CE,ROHS,FCC
