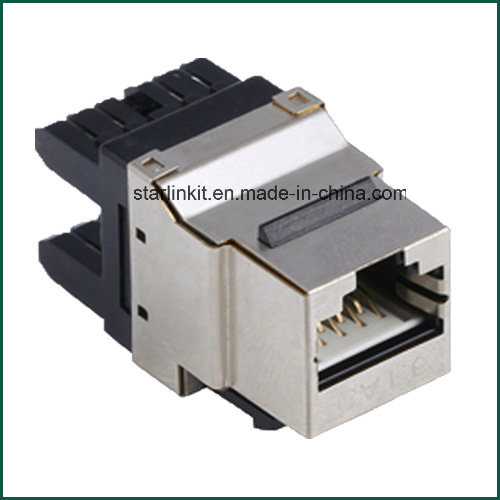

CAT6 Shielded Metal Punch Down Keystone for CAT6 STP Cables

Name: CAT6 Shielded Metal Punch Down Keystone for CAT6 STP Cables
Brand: all-electronics-online.com
SKU: 791334965
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 0.4-1.5/Piece
Min Order:	2000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-6JACK+FTP180
Standard:	T568-B
Usage:	Workstation
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

Shielded FTP Cat6 Keystone Jack

1. Shielded KJ. The products are used in the equipment rooms & work area as
communication connectors of the intelligent buildings.

2. The product can resists the electro magnetic interference (EMI) effectively with
the compact full-closed shielding structure.

3. According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1
CAT.6 standard.

4.  According the regnirement of T568A & T568B. The T568A & T568B labels are sticked
      on the both sides of the product to give a exact guide when a engineer punches
      the cables.

Technique Characteristics:

1. Housing and other plastic parts' material: PC UL94V-0

2. 8 pin of the RJ45 jack: Phosphor bronze with golden plated 3U,6U,15U,30U,50U
option. Inserting duration: 750 times.

3. IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables.
Punching duration: 250 times.

4. Punching tool: Standard 110 punching tool.

5. Testing condition of transmitting capability: 250MHz

ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
SKJ-270001	FTP Cat.6 Keystone Jack	500 PCS	402953 cm	11 kg
