CAT6 UTP/FTP/SFTP Communication Cable

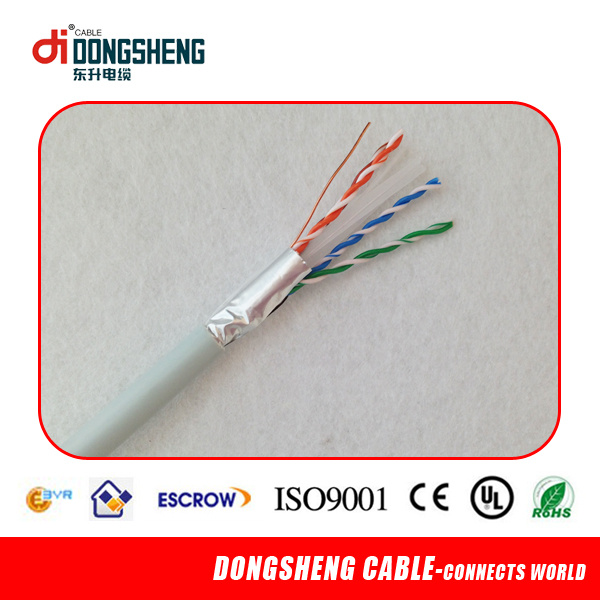

Name: CAT6 UTP/FTP/SFTP Communication Cable
Brand: all-electronics-online.com
SKU: 763234675
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 31-40/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Box
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Conductor Size:	28AWG, 26AWG, 24AWG, 23AWG, 22AWG
Size:	305m/Box
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 6
Certification:	UL

Product Description

Cat6 Lan Cable Categoria
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high performance in your Cabling solution, or project.
1. Certification: CE. RoHS,REACH,ISO Listed.
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment.
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc.

Specifications:
Cat6 Lan Network Cable Construction: Cat6 UTP Cable

Item	Conductor	Number Of Pairs	Shielding	Drain Wire	O.D.
Cat6 UTP	0.57mm BC/CCA	4	Non	Non	6.2mmPVC ROHS,UV,LSZH,UL,Reach
Cat6 FTP	0.57mm BC/CCA	4	Aluminum Foil	Yes	6.8mm PVC ROHS,UV,LSZH,UL,Reach
Cat6 SFTP	0.57mm BC/CCA	4	Aluminum Foil + Alloy Braiding	Yes	7.2mm PVC ROHS,UV,LSZH,UL,Reach
UTP Cat6 Outdoor	0.57mm BC/CCA	4	Non	Non	PVC+PE PVC ROHS,UV,LSZH,UL,Reach
FTP Cat6 Messenger	0.57mm BC/CCA	4	Aluminum Foil	Yes	PVC+Messenger ROHS,UV,LSZH,UL,Reach

Cat6 Lan Network Cable Technical Performance(100m)UTP Cat6 AMP

Frequency MHz	ATT ≤dB/100m	NEXT ≥dB/100m	ELFEXT ≥dB/100m
0.772	1.80	76.1	70
1	2.00	74.2	67.8
4	3.80	64.9	55.8
8	5.30	60.3	49.7
10	6.00	58.8	47.8
16	7.60	55.3	43.7
20	8.50	54.1	41.8
25	9.50	52.9	39.8
31.25	10.70	49.5	37.9
62.5	15.40	47.4	31.9
100	19.80	44.1	27.8
200	29.00	38.6	21.8
250	32.80	38.9	19.8

Applications:UTP Cat6 AMP
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network.
4.Ethernet Network.
5.Audio and Data Transmission.
