CAT6 UTP Shutted Keystone Jack 180 Degree for Information Outlet

Name: CAT6 UTP Shutted Keystone Jack 180 Degree for Information Outlet
Brand: all-electronics-online.com
SKU: 791308285
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 0.4-1.5/Piece
Min Order:	2000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-6JACKST+UTP180
Standard:	T568b
Usage:	Workstation
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

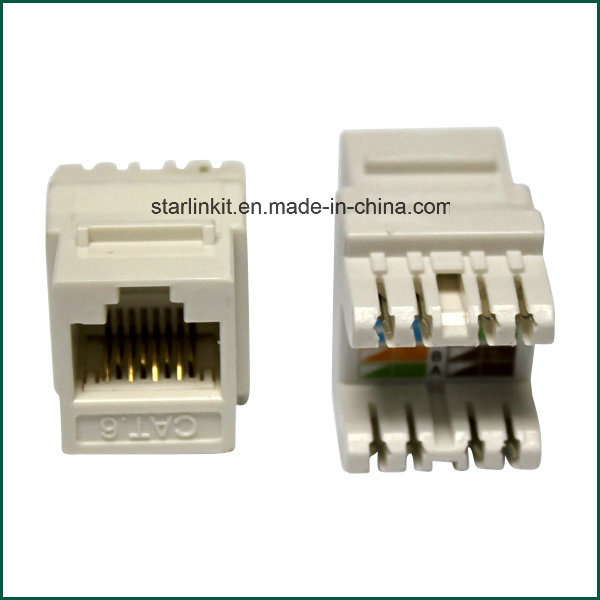

Cat.6 UTP Shutted Keystone Jack 180 degree

Description:

1. Keystone Jack, Cat. Class E, UTP Type, 180°punching direction, fit for connecting application of communication ports in working area.

2. A compact & ingenious designing, with the punching sequence direction marks on the sides of keystone jack, which can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.

3. According to the standard of the ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA568-B.2 Cat.6, T568A punching sequence and T568B punching sequence are both compatible.

4. Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 cables.

5. Fitting for the Cat.6 general cable distribution system. Compatible for Cat.5 and Cat.5e systems.

Technique Characteristics:

1. Material of plastic parts: PC UL94V-0

2. Material of the FCC connectors'8 pin: Phosphor bronze with golden plated 3U,6U,15U,30U,50U at option. Inserting duration: 750 times.

3. Material of the IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.

4. Standard 110 punching tool.

Remark: Cat.5E is optional.

Housing	PC UL94V-0
PCB	1.FR4 1.6mm(0.04") thickness. 2.4 layers.
Contact	1.PC Ul94V-0 2.Phosphor bronze: 0.45mm(0.018") Diameter 3.Gold plating: 3 U"/0.0762um ~ 50 U"/1.27um
Electrical	1.According to UL 1863. 2.Current rating: 1.5 Amp Max. 3.Voltage rating: 150 Volts. 4.Contact resistance: 20 m-ohm. 5.Insulation Resistance: 500M-ohm. 6.Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min.
Overall Diameter	1.Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements. 2.Meet TIA/EIA TSB-40. 3.Meet ISO/IEC Generic Cabling Standard 11801. 4.Meet CENELEC Generic Cabling Standard EN50173.
Performance	Pass FLUKE test

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
