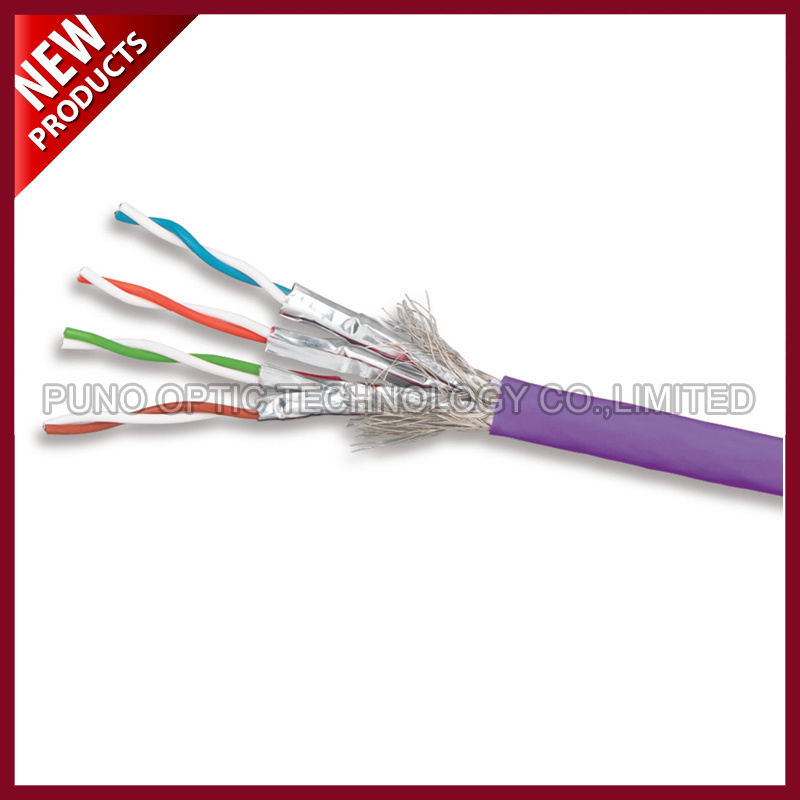

Cat7 Shielded Foiled SFTP Solid LAN Bulk Ethernet Cable

Name: Cat7 Shielded Foiled SFTP Solid LAN Bulk Ethernet Cable
Brand: all-electronics-online.com
SKU: 818106965
Availability: InStock
Rating: 5 (63 reviews)

Price:	US $ 67-68/Roll
Min Order:	1/Roll
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-001
Color:	Purple
Cable Jacket:	LSZH
Wire Gauge:	22AWG
Frequency Bandwidth:	600MHz
Application:	Communication
Certification:	CCC
Type:	LAN Cable
Connection Structure:	SFP
Core:	8

Product Description

Products Description:

Cat7 has been designed as a standard for Gigabit Ethernet over 100m of copper cabling. It has a higher bandwidth of up to 600 MHz and backwards compatible with traditional Cat5e, Cat6 and Cat6a Ethernet. This cable offers extensive shielding to reduce signal attenuation and is relatively stiff in comparison to previous generations of cabling. It is great for data centers, server rooms, and telecommunications rooms.

Product Details:

Cable Type	Cat7	Shielding Type	SFTP
Wire Gauge	22AWG	Cable Color	Purple
Cable Jacket	LSZH	Cable Length	100m(328ft)
Conductor	Solid bare copper	Twisted Pairs	4 pair
Frequency Bandwidth	600MHz	Max. Data Rate	10000Mbps
Operating Temperature	-40ºC to 75ºC (-40˚F to 167˚F)	Installation Temperature	-10ºC to 50ºC (-14˚F to 122˚F)
Insulation Dia.	1.45±0.005mm	Average Thickness	0.4325 mm
Outer Diameter	7.9+/- 0.5mm	Weight	10.5kg/kft

Product Highlights - Cat7 SFTP Solid LSZH Cable, Spool:

Rated for any 10GBase-T, 1000Base-T, and 10/100Base-T network

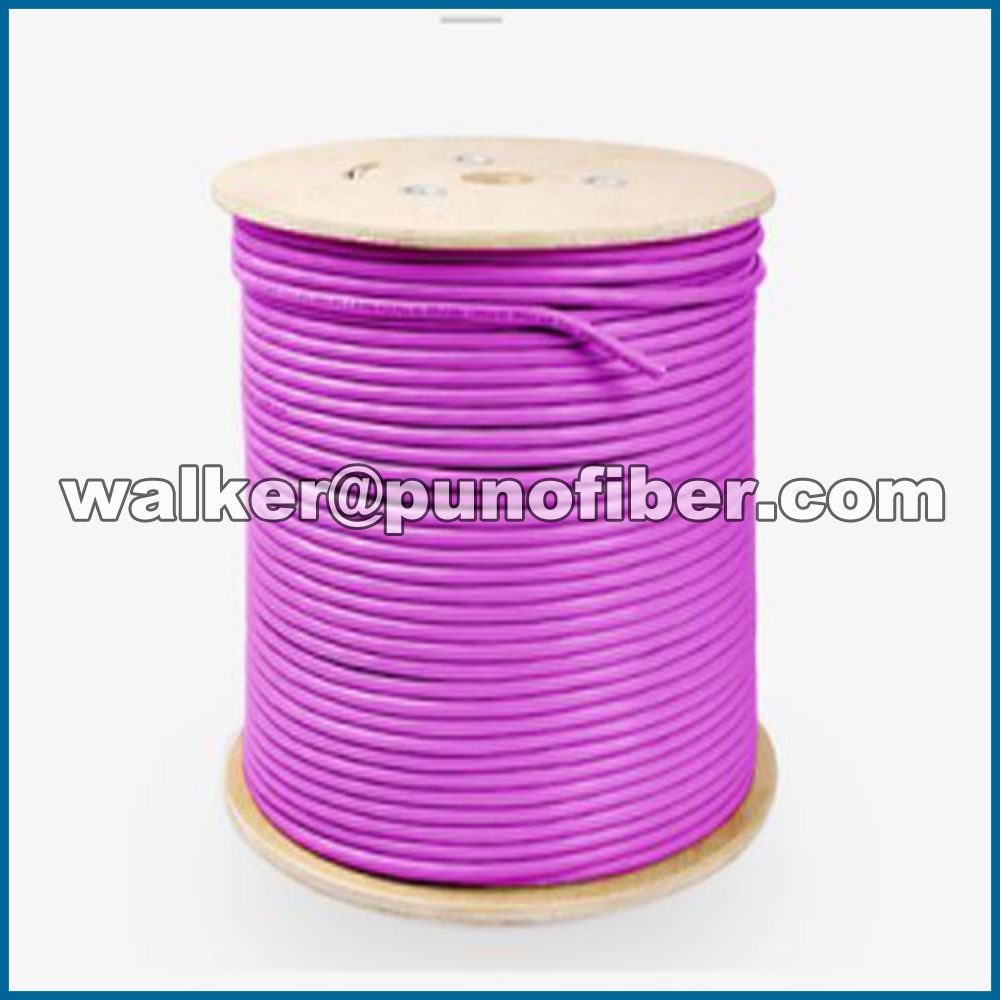

Comes in a convenient spool with length of 100m(328ft)

Meets IEEE 802.3af and IEEE 802.3at for PoE applications

Purple, Orange, Black are available

Wide range color options for easy network identification

Descending length cable markings

Easy identification of cable length for easy installation

Innovative Craftsmanship for Maximum Performance and Security:

Solid Cable Design	Simple installation, durable when it comes to impact and abrasion
4-Pair 8-Core Twisted Pair	High-precision twisted cable, guaranting the stability of signal and supporting a better flow of electrons
Overall Braided Shielded Layer	Providing superior structural integrity, and reducing low frequency external interference to ensure exceptional cable performance
LSZH Jacket	Extensional rigidity, flame-retardance and thermal endurance for diversified application environment

PUNO Service:
Perfect custom service varying from different lengths and different colors for easily network installation can be provided.

Cat7 Network Cable:
In compliance with TIA/EIA-568-B.2-10 specifications, the PUNO Cat 7 network cable delivers blazing fast speed to address evolving requirements of today's equipment and application.

Excellent Construction:
The strain relief prevents the cable from bending at sharp angle at the connector to reduce the risk of cable damage. The clip protector keeps the RJ45 connector from unwanted snags while routing the cable. The Screened Shielded Twisted Pair (S/STP) cable shielding and gold plated RJ45 connector block out external interference for high quality, error-free signal transfer.
