Prod Model:	MC109
Theory:	Catalytic Gas Sensor
Measuring Range:	0-100% Lel
Application:	Home Automation
Item:	Sensor Mould
Accuracy:	0.5% Fs
Samples Available:	Shipped in 5 Days After Payment

Product Description

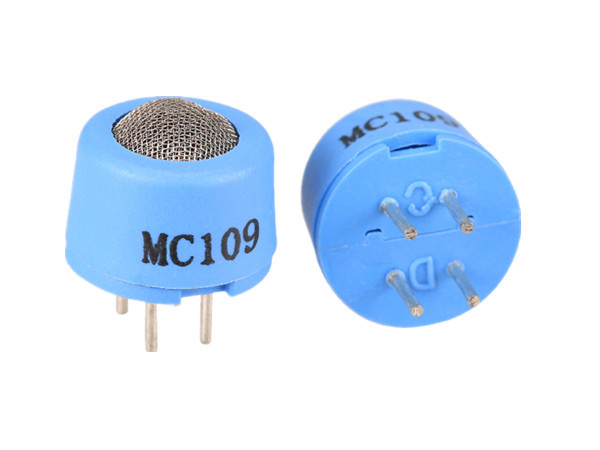

MC109 Catalytic Flammable Gas Sensor

• Detection range: 0-100%LEL combustible gas
• Gas: natural gas, LPG, CO and alkanes ects flammable gas
• Application: combustible gas leakage alarm system, combustible gas detector and gas concentration meter.

Principle Introduction:
MC109 catalytic combustion/flammable gas sensor, 0~100%LEL detection range gas sensor.

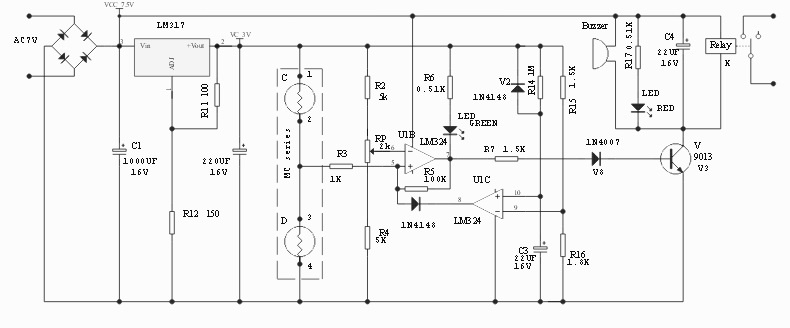

MC109 adopts catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element. The resistance of the test element rises once it meets the combustible gases, in the same time, the output voltage of the bridge changes and the voltage variation rises in direct proportion to the gas concentration. The compensate element, as a conference, has the function of compensating temperature and humidity.

Applications :
It is widely used in industrial occasion to detect the concentration of hydrogen, ethyne, gasoline, VOC such as alcohol, ketone, benzene.

Technical parameters :

Model		MC109
Sensor Type		Catalytic
Standard Encapsulation		Metal, Metallurgy powder mesh
Working voltage(V)		2.5±0.1
Working current(mA)		100±10
Sensitivity (mV)	1% H2	20~50
	1% C2H4	40~90
Linearity		≤5%
Measuring range(%LEL)		0~100
Response Time (90%)		≤10s
Recovery Time (90%)		≤30s
Working Environment		-40~+70ºC,less than 95%RH
Storage Environment		-20~+70ºC,less than 95%RH
Anti-explosion Mark		Exdib I
