| Prod Model: |

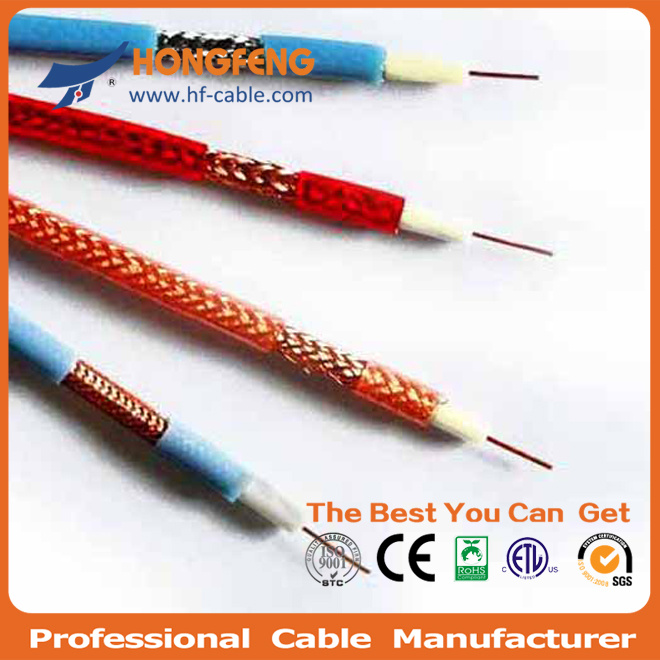

Rg59 CCTV Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1.CCTV Camera Visual Extension Cable: |
2.Easy Use |
| 3.Anti-Aging Capability: |
4.Soft and Flexible |
| Application: |
Coaxial Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
Coaxial |
Product Description
1. Our services:
1, Good quality guarantee
2, CE. RoHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time
2. Specifications
Inner Conductor- - - - 0.81± 0.01mm Copper Clad Steel 21%
Dielectric - - - - - - -- 3.66± 0.05mm Foam PE
Shield - - - - - - - - - - - - Bonded Aluminum PET Aluminum
Braid Coverage- - -- - - 0.12mm *16*6 (60%)AL-Mg Alloy
Shield- - - - - - - - - -- - - Aluminum PET Aluminum
Jacket- - - - - - - - - - - - 6.1± 0.05 mm PVC
Jelly/APD - - - - -- - - - - Per Customized
3. Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
4. Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
5. Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz) Maximum (dB/100ft) Maximum (dB/100m)
6. Main products:
1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
Note: If the specification is not you need, please tell me and I will offer you price according your requirements.
| Attenuation Performance [@68 ° F. (20 ° C)] |
| Frequency(MHz) | Maximum (dB/100ft) | Maximum (dB/100m) |
| 5 | 0.86 | 2.82 |
| 55 | 1.95 | 6.39 |
| 211 | 3.59 | 11.77 |
| 250 | 4.00 | 13.11 |
| 300 | 4.27 | 14.00 |
| 350 | 4.64 | 15.21 |
| 400 | 4.88 | 16.00 |
| 450 | 5.30 | 17.38 |
| 500 | 5.60 | 18.36 |
| 550 | 5.90 | 19.34 |
| 600 | 6.05 | 19.84 |
| 750 | 6.96 | 22.82 |
| 865 | 7.50 | 24.59 |
| 1000 | 8.09 | 26.52 |
Mr. Leo
Hangzhou Hongfeng Cable Co., Ltd.
www.hf-cable.com
www.hf-cable.com.cn
Tel: +86-571-58615552
Fax: +86-571-63816227
Mb: +86-18268847560
Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.
We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.
We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
