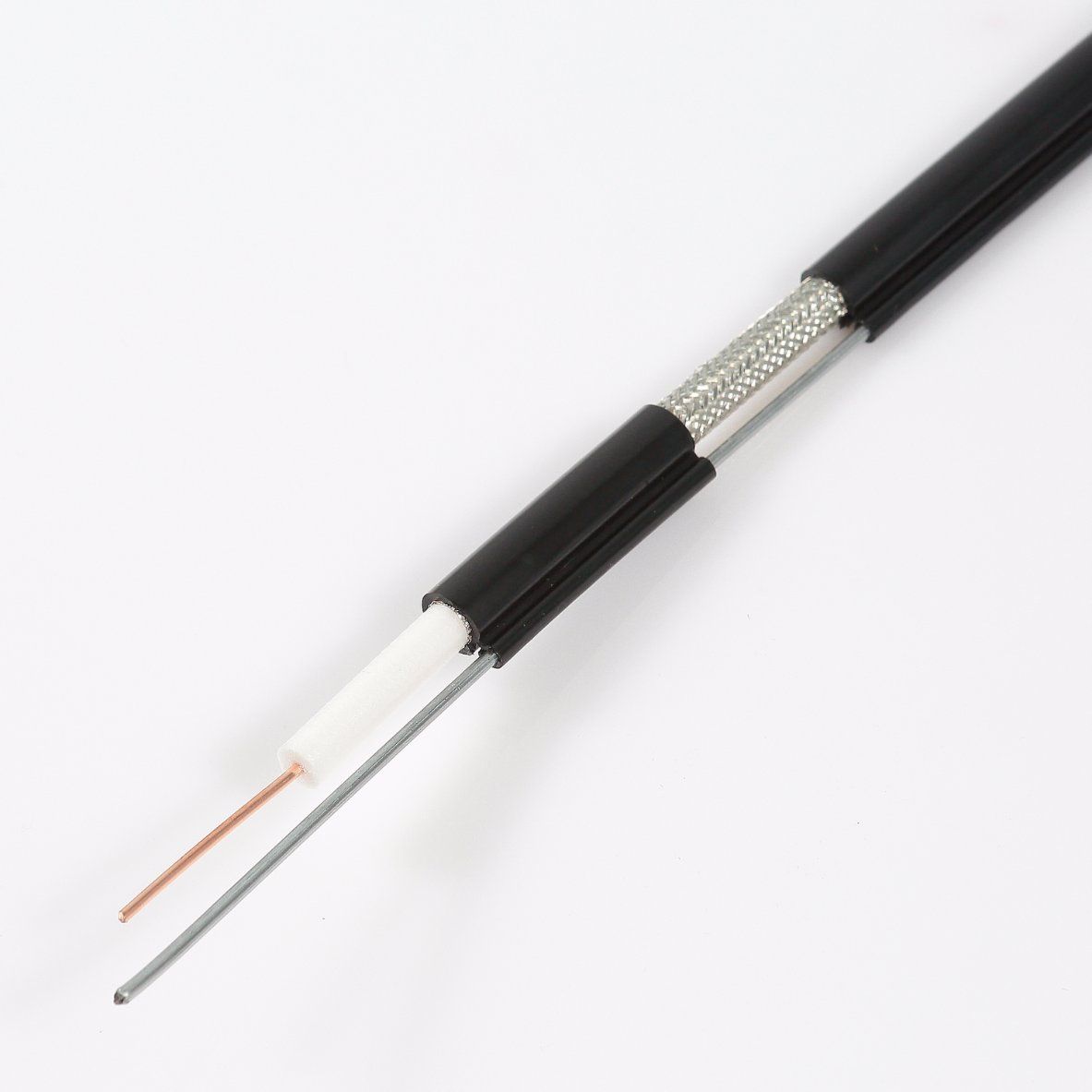

CATV Cable/Coaxial Cable Rg11 with Messenger

Name: CATV Cable/Coaxial Cable Rg11 with Messenger
Brand: all-electronics-online.com
SKU: 828473955
Availability: InStock
Rating: 4.8 (103 reviews)

Price:	US $ 1-55KM
Min Order:	1000KM
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable RG11
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Brand:	Jiuxin

Product Description

RG11 : 1.63CCS+7.11FPE + Al Foil/blue/bonded +128*0.12AL+10.03PVC(Black)
RG11 +M:
1.63CCS+7.11FPE + Al Foil/blue/bonded +128*0.12AL+10.03PVC(Black)+1.83stell

Note: 96-144 net braiding available, 0.12-0.16mm braid wire available
Inner Conductor (mm): 1.63± 0.02
Dielectric (mm): 7.11± 0.10
Jacket (mm): 10.03± 0.10

Electrical Characteristics [@68°F. ( 20°C)]
	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)
Attenuation	5MHZ	1.25	330MHZ	7.71	550MHZ	9.97
	55MHZ	3.15	350MHZ	7.94	600MHZ	10.43
	211MHZ	6.23	400MHZ	8.53	750MHZ	11.97
	250MHZ	6.72	450MHZ	9.02	870MHZ	13.31
	300MHZ	7.38	500MHZ	9.51	1000MHZ	14.27
Min Return Loss(dB)	≥22
Impedance(Ω )	75± 3
Velocity Rate(%)	85

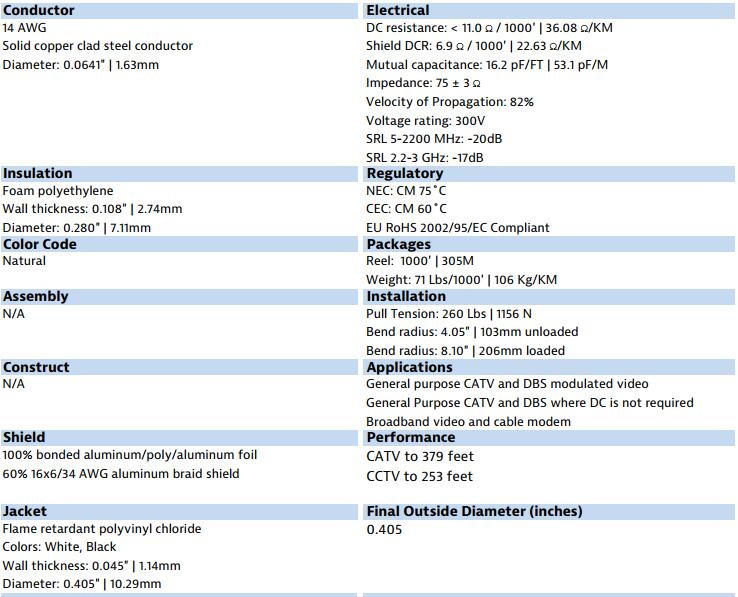

Structure:
14 AWG solid copper clad steel conductor
Gas-injected cellular polyethylene dielectric
Dual shield foil + 60% aluminum
Flame rated PVC jacket
3.0 GHz sweep for all CATV through DBS needs
NEC CM, CEC CM FT4, RoHS compliant
1000 foot spools

Applications:
CATV/MATV and Direct Broadcast Satellite (DBS)
Cable Modem, Non-DC pass circuits
High Frequency RF Modulated Signals

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. Is a professional manufacture of coaxial cable. Located in Qidu town, Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.

The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got SARFT registration certificate and ISO quality system certification.

Providing excellent service to all customers is the basic policy of Jiuxin. With excellence in quality control and the responsibility of management, we will continuously devote to company future and staff well-beings.
