CATV Coaxial Cable P3.500 with Messenger

Name: CATV Coaxial Cable P3.500 with Messenger
Brand: all-electronics-online.com
SKU: 768571925
Availability: InStock
Rating: 4.6 (54 reviews)

Price:	US $ 900-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DSC-Commscope QR500 Messenger
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Commscope Qr500 Coaxial Cable:	P3.500 Trunk Cable
Belden 500 Cable:	P3.500 Messenger
Trunk Cable Qr500:	Trunk Cable Qr500 Messenger
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Trunk Coaxial Cable P3.500
Model:	Commscope Qr500 Coaxial Cable

Product Description

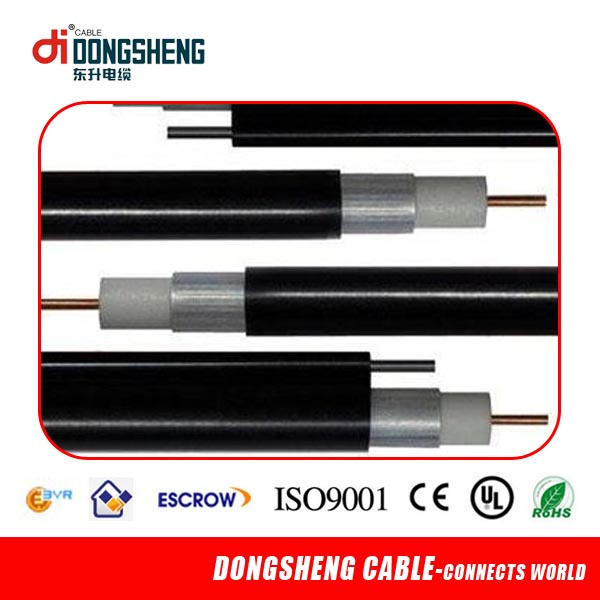

CATV Coaxial Cable P3.500 with Messenger

Coaxial Cable P3.500

Commscope QR500 Coaxial Cable,Cable Coaxial P3.500 Belden

Product specification:

Coaxial Cable P3.500 with Messenger		TYPE	QR500 Coaxial Cable
Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Aluminum			2.77
Dielectric	Foam PE			11.43
Outer Shield	Solid Aluminum Tube			0.61thickness
Jacket	PE			14.22
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				50±3
Velocity of Propagation(%)				87.0
DC Loop Resistance(Ω/km)				5.64
Maximum Pulling Tension(kgf)				136
Return Loss
5-1000MHZ(dB)				≥22

@Frequency(Mhz)	Max Attenuation(dB/100m)
5	0.52
55	1.77
83	2.17
211	3.58
250	3.94
300	4.30
350	4.69
400	5.02
550	5.97
600	6.27
750	7.09
865	7.68
1000	8.27

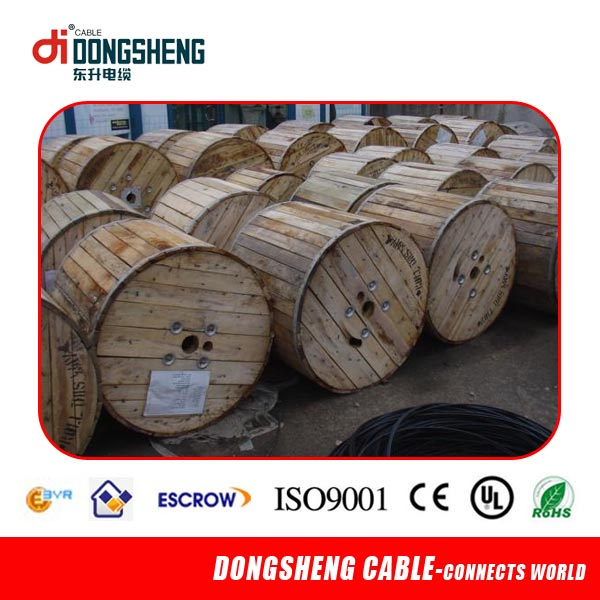

Packaging: 1)1000m/wooden reel
Applications

(1) CATV-community antenna television.

(2) CCTV-closed-circuit television.

(3) DBS-direct broadcasting satellite.

Contact Information:

24 Hours Available
Name:Wendy Lee
Mobile (waht's app):+86 15958030333
Phone:+86-571-61070066
Fax:+86-571-63763198

Web address:www.dongsheng.com

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories

Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
