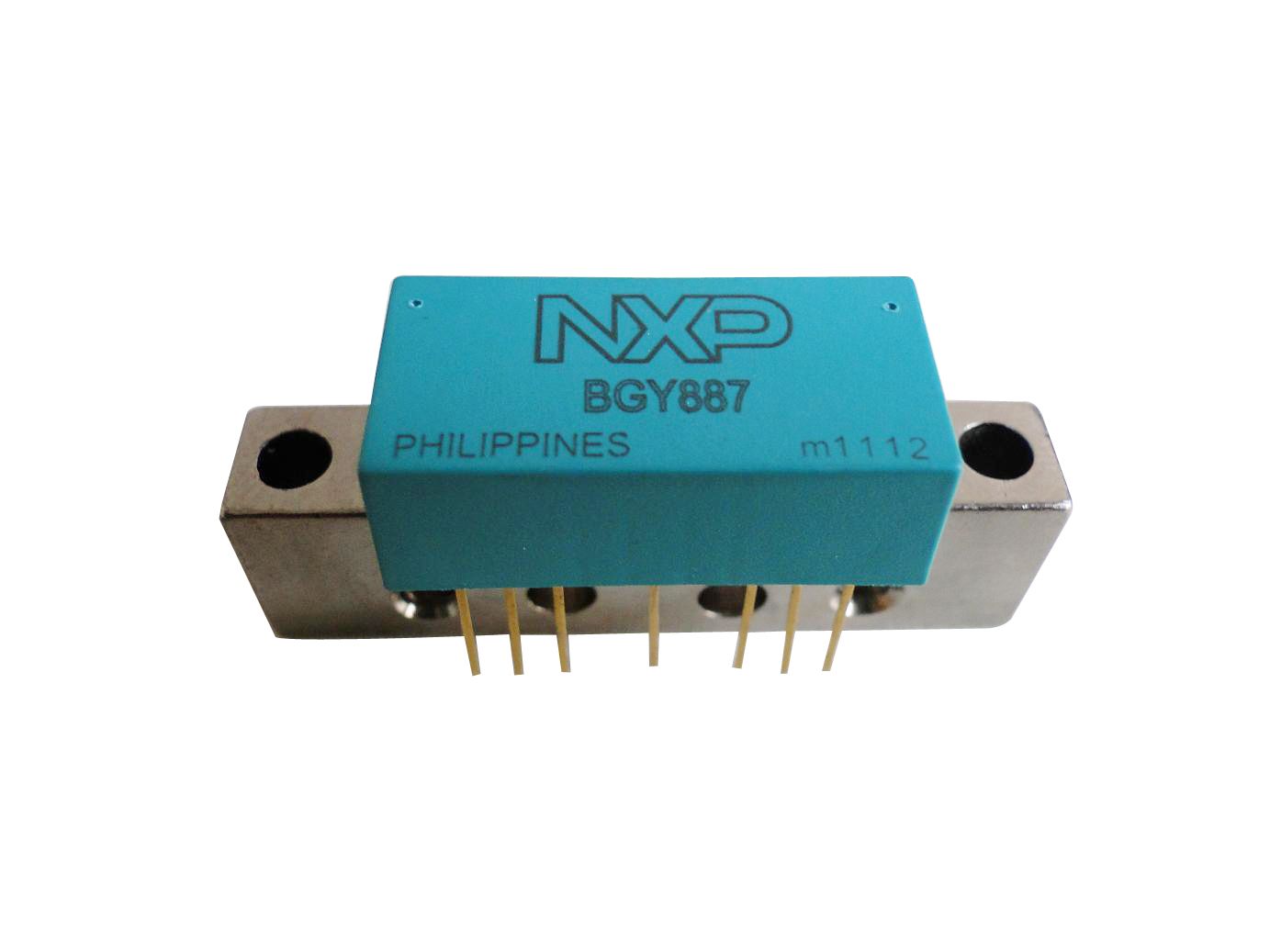

Hybrid Module-Philips Module\Semiconductors (BGY887)
FEATURES
Excellent linearity
Extremely low noise
Excellent return loss properties
Silicon nitride passivation
Rugged construction
Gold metallization ensures
Excellent reliability.
APPLICATIONS
CATV systems operating in the
40 to 860 MHz frequency range.
DESCRIPTION
Hybrid dynamic range amplifier
Module in a SOT115J package
Operating with a voltage supply of
24 V (DC).
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Gp power gain f = 50 MHz 21 22 dB
F = 860 MHz 21.5 -dB
Itot total current consumption (DC) VB = 24 V -235 mA
DEFINITIONS
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
Products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
Use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
Improper use or sale.
Data Sheet Status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; Supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Gp power gain f = 50 MHz 21 22 dB
F = 860 MHz 21.5 - dB
Itot total current consumption (DC) VB = 24 V - 235 mA.
SYMBOL
|
PARAMETER
|
CONDITIONS
|
MIN
|
MAX
|
UNIT
|
Gp
|
power gain
|
f = 50 MHz
|
21
|
22
|
dB
|
f = 860 MHz
|
21.5
|
--
|
dB
|
Itot
|
total current consumption (DC)
|
VB =24V
|
---
|
235
|
mA
|
SYMBOL
|
PARAMETER
|
CONDITIONS
|
MIN.
|
TYP.
|
MAX.
|
UNIT
|
Gp
|
power gain
|
f = 50 MHz
|
21
|
21.5
|
22
|
dB
|
f = 860 MHz
|
21.5
|
22.5
|
−
|
dB
|
SL
|
slope cable equivalent
|
f = 40 to 860 MHz
|
0.2
|
1
|
2
|
dB
|
FL
|
flatness of frequency response
|
f = 40 to 860 MHz
|
−
|
± 0.2
|
± 0.3
|
dB
|
S11
|
input return losses
|
f = 40 to 80 MHz
|
20
|
29.5
|
−
|
dB
|
f = 80 to 160 MHz
|
18.5
|
27.5
|
−
|
dB
|
f = 160 to 320 MHz
|
17
|
23
|
−
|
dB
|
f = 320 to 640 MHz
|
15.5
|
22
|
−
|
dB
|
f = 640 to 860 MHz
|
14
|
20
|
−
|
dB
|
S22
|
output return losses
|
f = 40 to 80 MHz
|
20
|
27
|
−
|
dB
|
f = 80 to 160 MHz
|
18.5
|
25
|
−
|
dB
|
f = 160 to 320 MHz
|
17
|
20.5
|
−
|
dB
|
f = 320 to 640 MHz
|
15.5
|
19
|
−
|
dB
|
f = 640 to 860 MHz
|
14
|
19
|
−
|
dB
|
S21
|
phase response
|
f = 50 MHz
|
− 45
|
−
|
+45
|
deg
|
CTB
|
composite triple beat
|
49 channels flat; Vo = 44 dBmV; measured at 859.25 MHz
|
− −
|
64.5
|
− 62
|
dB
|
Xmod
|
cross modulation
|
49 channels flat; Vo = 44 dBmV; measured at 55.25 MHz
|
− −
|
64.5
|
− 61
|
dB
|
CSO
|
composite second order distortion
|
49 channels flat; Vo = 44 dBmV; measured at 860.5 MHz
|
− −
|
67.5
|
− 61
|
dB
|
d2
|
second order distortion
|
note 1
|
− −
|
77
|
− 70
|
dB
|
Vo
|
output voltage
|
dim = − 60 dB; note 2
|
59
|
60.5
|
−
|
dBmV
|
F
|
noise figure
|
f = 50 MHz
|
−
|
4
|
4.5
|
dB
|
f = 550 MHz
|
−
|
−
|
5
|
dB
|
f = 600 MHz
|
−
|
−
|
5
|
dB
|
f = 650 MHz
|
−
|
−
|
5
|
dB
|
f = 750 MHz
|
−
|
−
|
5.5
|
dB
|
f = 860 MHz
|
−
|
5
|
6.5
|
dB
|
Itot
|
total current consumption (DC)
|
note 3
|
−
|
220
|
235
|
mA
|
