Changan Group Co., Ltd. >> Caw1 Series Intelligent Universal Circuit Breaker Acb 6300A Caw1 Series

Caw1 Series Intelligent Universal Circuit Breaker Acb 6300A Caw1 Series

Caw1 Series Intelligent Universal Circuit Breaker Acb 6300A Caw1 Series
Price: US $ 636/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CAW1 Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturer: Original Factory
Company Credit Rate: AAA
Company Certification: ISO9001,SGS
Company Size: Over 2000 Stuff
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Structure: ACB
Poles Number: 3
Certification: RoHS
Installation: Fix Type/Drawer Type
Function: Air Circuit Breaker

Product Description


Product Description

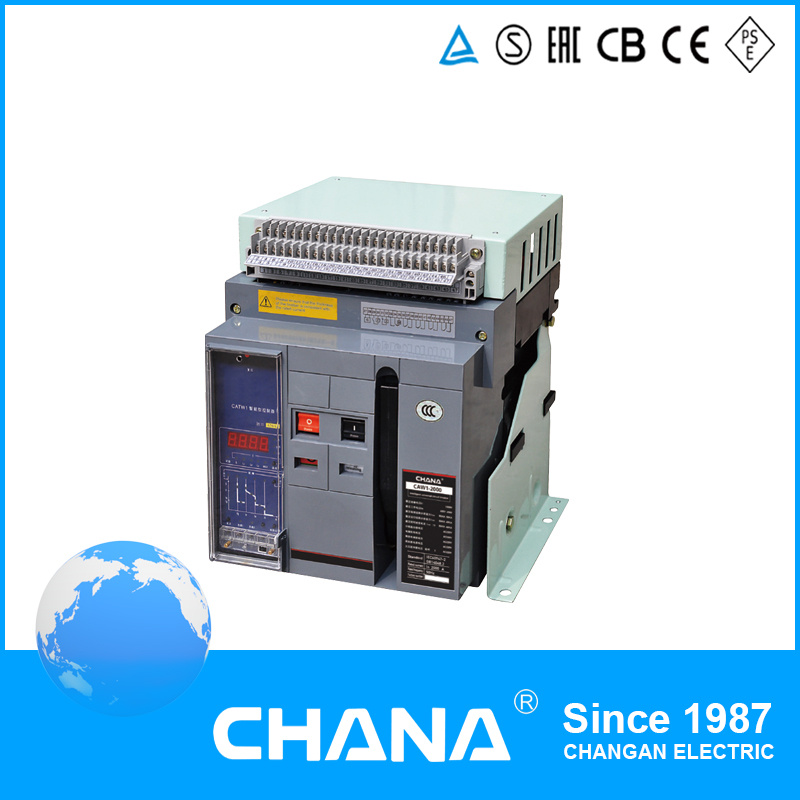

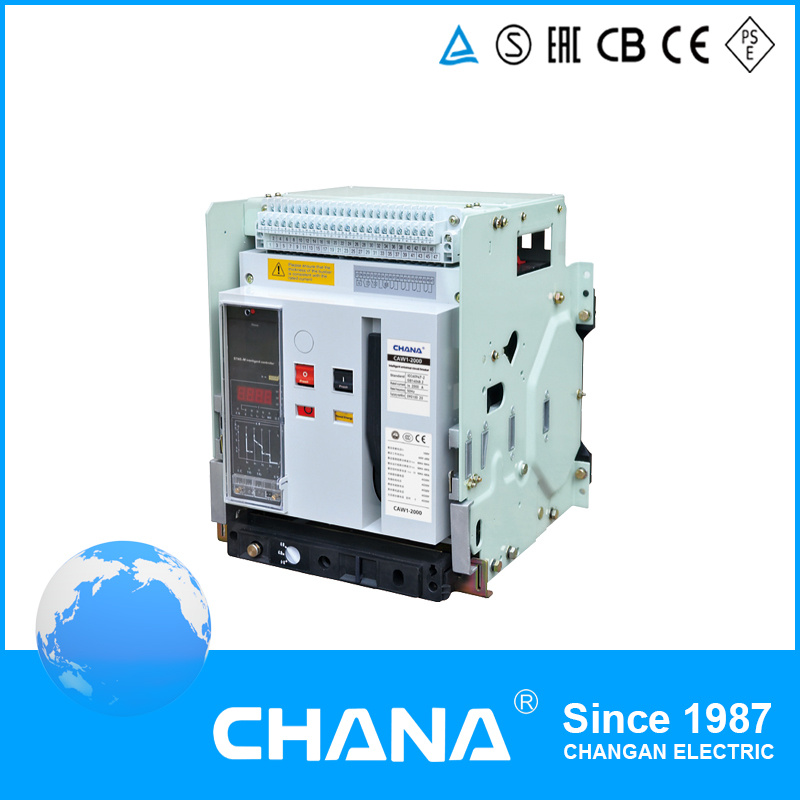

CAW1 Series Intelligent Air Circuit Breaker:
Air circuit breaker is suitable for the circuit of AC 50Hz with rated voltage up to 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuit and power supply equipment from overload, under voltage, short circuit and single phase earthing with intelligentized and selective protection function, the breaker can improve the reliability of power supply and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines (for 690V) and modern high-buildings, especially for the distribution system of intelligentized building. The whole series have past CCC and CE certification.

Application:
. Rated operational voltage of the breaker is AC400/415/690V, with the rated current ranges      from 400A to 6300A
. Compact design with fixed and withdrawerable type
. Standard: IEC/EC 60947-2
. Telecommunication protocal: The protocals of Modbus, Profibus-DP and Device Net are avaiable
. Breaking capacity under 415V
Type

                             CAW1-1000

CAW1-2000CAW1-3200CAW1-4000CAW1-6300

Frame rated

current Inm (A)

10002000320040006300
Number of poles3,43,43,43,43,4
Rated current In (A)

200,400,630,

800,1000

630,800,1000,

1250,1600,2000







2000,2500,3200



2000,2500,3200,40004000,5000,6300
Icu (kA)O-CO400V4280100100120
690V2550656580
Ics (kA)O-CO-CO400V3050656580
690V2040505070
Icw(kA)O-CO400V20506565/80(MCR)85/100(MCR)
690V20405050/65(MCR)65/75(MCR)

Rated current

at N-pole In (A)

50%In, 100%In

Inherent making&

breaking

time

23-32ms

Operational performance (operations)

Electric

life

500
Mechanical lifeMaintenance-free2500 Maintenance 10000

Mounting

mode

Fixed with drawable

Arcing

distance(mm)

0

Intelligent

controller

Standard type(M)                    Telecommunication type (H)


CAW1 ACB(Air Circuit Breaker):
ACB(Air circuit breaker) is suitable for the circuit of AC 50Hz with rated voltage up to 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuit and power supply equipment from overload, under voltage, short circuit and single phase earthing with intelligentized and selective protection function, the breaker can improve the reliability of power supply and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines (for 690V) and modern high-buildings, especially for the distribution system of intelligentized building. The whole series have past CCC and CE certification.

ACB(Air Circuit Breaker) Application:
. Rated operational voltage of the breaker is AC400/415/690V, with the rated current ranges from 630A to 6300A
. Compact design with fixed and withdrawerable type
. Standard of ACB: IEC/EC 60947-2
. Telecommunication protocal: The protocals of Modbus, Profibus-DP and Device Net are avaiable
. Breaking capacity under 415V
Payment:
1. We usually use T/T
2. 30% deposit and 70% To be paid against the copy of B/L.
3. L/C also acceptable

Warranty:
1.We provide 3 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods


Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!






Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
