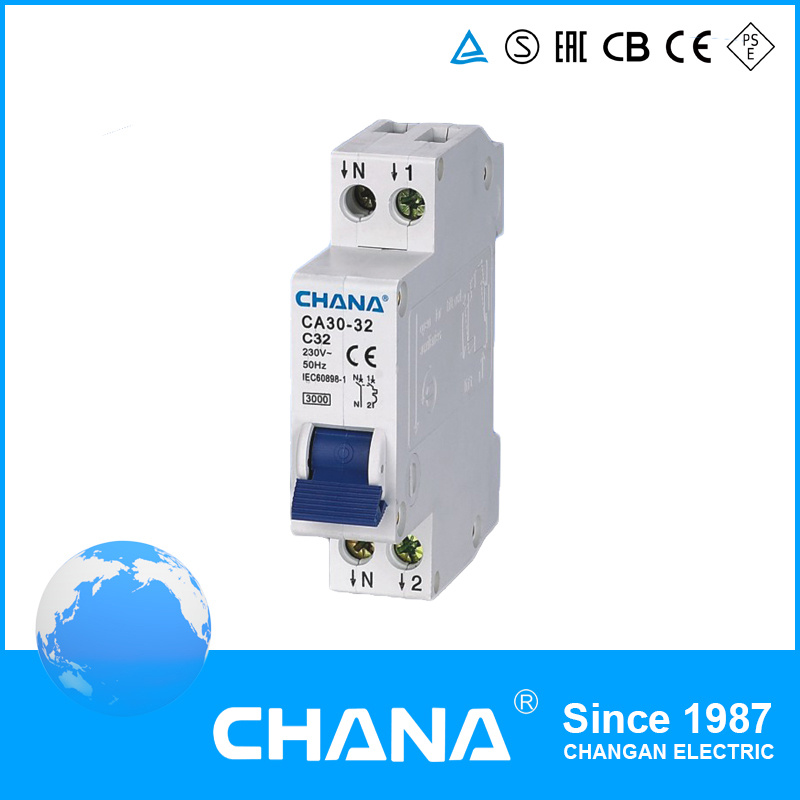

| Prod Model: |
CA30-32 |
| Poles: |
1p+N |
| Rated Voltage: |
AC230/400V |
| Rated Current: |
25A |
| Rated Frequency: |
50Hz |
| Pollution Degree: |
2 |
| Rated Sensitivity: |
0.03A,0.1A,0.3A |
| Electrical Life: |
4000 Times |
| Mechanical Life: |
10000 |
| Insulation Voltage: |
500V |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Structure: |
MCB |
| Poles Number: |
2 |
| Certification: |
CCC |
Product Description
Electrical Features of DPN Circuit Breaker.
Rated current In :1,2,3,4,6,10,16,20,25,32A
Poles:1P+N
Rated voltage Ue:240/415V
Insulation voltage Ui :500V
Rated frequency:50/60Hz
Rated breaking capacity :3000A
Energy limiting class:3
Rated impulse withstand voltage(1.2/50) Uimp:4,000V
Dielectric test voltage at ind. Freq. for 1 min:2kV
Pollution degree of DPN:2
Thermo-magnetic release characteristic: B,C
Mechanical Features of the mini circuit breaker
Electrical life:3,000
Mechanical life:6,000
Protection degree:IP20
Reference temperature for setting of thermal element:30?
Ambient temperature (with daily average?35?): -5?...+40?
Storage temperation: -25?...+70?

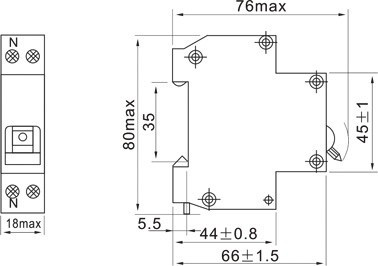

Installation of Circuit Breaker
Terminal size top/bottom for cable: 10mm2
Terminal size top/bottom for busbar:10mm2
Tightening torque 1.2 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
