CB and RoHS Approved Dpn Mini MCB

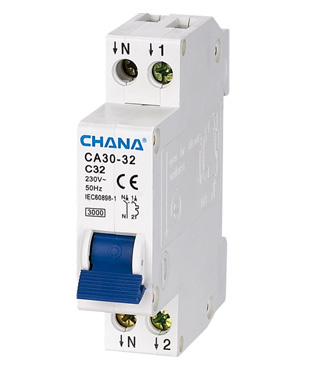

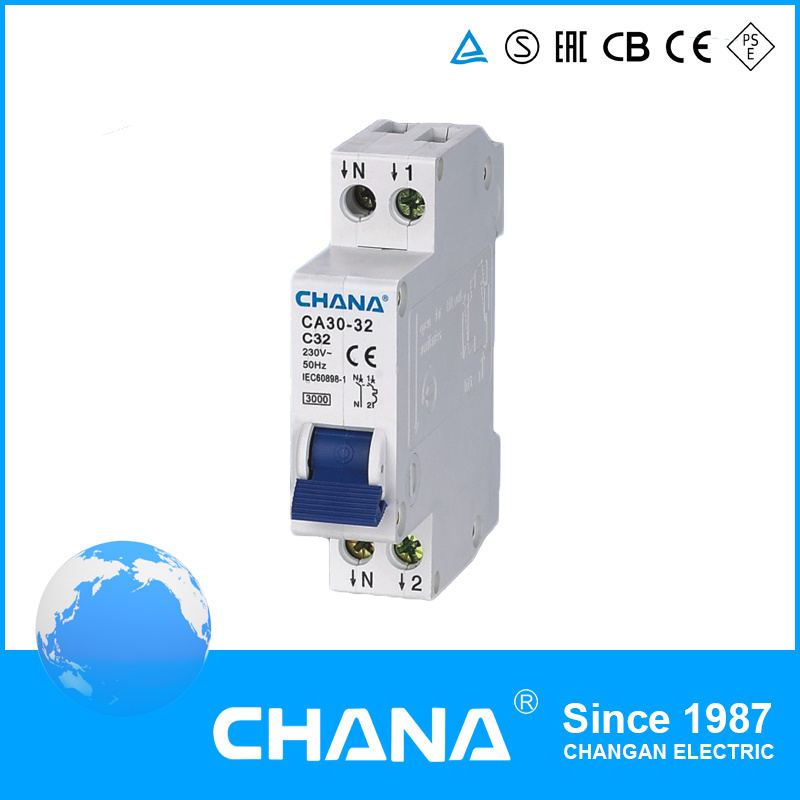

Name: CB and RoHS Approved Dpn Mini MCB
Brand: all-electronics-online.com
SKU: 744400855
Availability: InStock
Rating: 4.6 (23 reviews)

Price:	US $ 1.4-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CA30-32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles:	1p+N
Rated Voltage:	AC230/400V
Rated Current:	25A
Rated Frequency:	50Hz
Pollution Degree:	2
Rated Sensitivity:	0.03A,0.1A,0.3A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

Electrical Features of DPN Circuit Breaker.

Rated current In :1,2,3,4,6,10,16,20,25,32A
Poles:1P+N
Rated voltage Ue:240/415V
Insulation voltage Ui :500V
Rated frequency:50/60Hz
Rated breaking capacity :3000A
Energy limiting class:3
Rated impulse withstand voltage(1.2/50) Uimp:4,000V
Dielectric test voltage at ind. Freq. for 1 min:2kV
Pollution degree of DPN:2
Thermo-magnetic release characteristic: B,C
Mechanical Features of the mini circuit breaker
Electrical life:3,000
Mechanical life:6,000
Protection degree:IP20
Reference temperature for setting of thermal element:30?
Ambient temperature (with daily average?35?): -5?...+40?
Storage temperation: -25?...+70?
Installation
Terminal size top/bottom for cable: 10mm2
Terminal size top/bottom for busbar:10mm2
Tightening torque 1.2 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes

Items	Poles	Ampers	Voltage	Electrical Life	Mechanical life	Protection Degree	Breaking capacity
CA30-32	1P+N	10	240/415V	3000	6000	2	3000
CA30-32	1P+N	16	240/415V	3000	6000	2	3000
CA30-32	1P+N	32	240/415V	3000	6000	2	3000

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

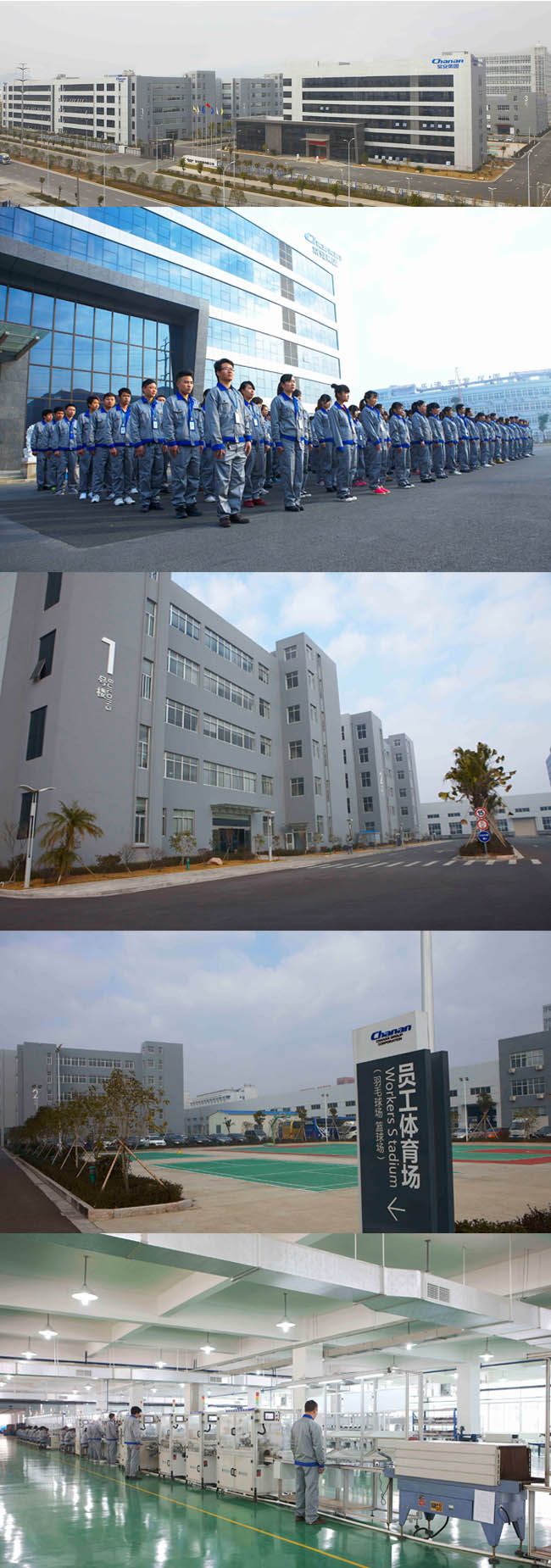

Company View:

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
