Cbb15/16 Capacitor for Welding Inverter
| Price: |
US $ 4/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
cbb15/15 |
| Operating Temperature: |
40c ~ +85c |
| Capacior Item: |
Welding Machine DC-Link Film Capacitor 1400VDC 20u |
| Capacitor Material: |
Metallized Polypropylene Film |
| Capacitor Filling: |
Resin |
| Capacitor Voltage Range: |
1000VDC~1800VDC |
| Capacitor Life Span: |
1, 000, 000times |
| Capacitor Standard: |
IEC60831-2 |
| Capacitor Application: |
Transducer,Convertor,Chopper Ect. |
| Manufacturer: |
Anhui Safe Electronics Co., Ltd |
| Type: |
Polypropylene Capacitor |
| Application: |
Welding Inverter |
| Package Type: |
Through Hole |
| Capacitance: |
0.47UF ~ 50UF |
| Manufacturing Material: |
Polypropylene Film |
| Electrolyte: |
Polypropylene |
| Usage: |
Welding Inverter |
Product Description
CBB15/16 description:
These capacitors are used for high frequency switching power supply filter,absorption, in every other straight, resonant circuit.And it is widely applied to EMI, such as high frequency welding inverter, UPS, electric vehicles,etc
Features:
Non-inductive construction;
Excellent self-healing performance;
Small equivalent series resistance;
High stability and long product life;
Very small dissipation factor and bear the huge amperage;
Strong flow-proof performance and efficiently filter harmonic wave interference;
Dry capacitor structure, no liquid material,non-toxic, no leakage and environmentally friendly;
Certificated by ISO9001, CE, ROHS, SGS UL VDEetc.
Structure:
Using our own patented technology, polypropylene film dielectric vacuum deposition of metal electrodes, non-inductive winding, special spraying techniques, Mylar tape or natural resistance molded package and end with epoxy potting, and output by large brass nut, tinned wire lead or copper plates.

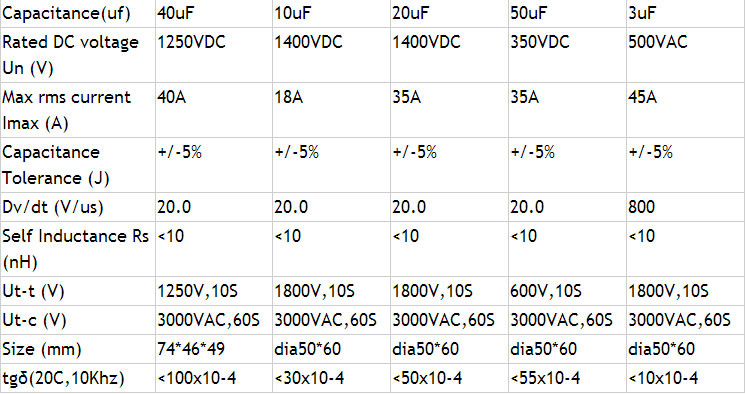

CBB15/16 capacitor technical data:

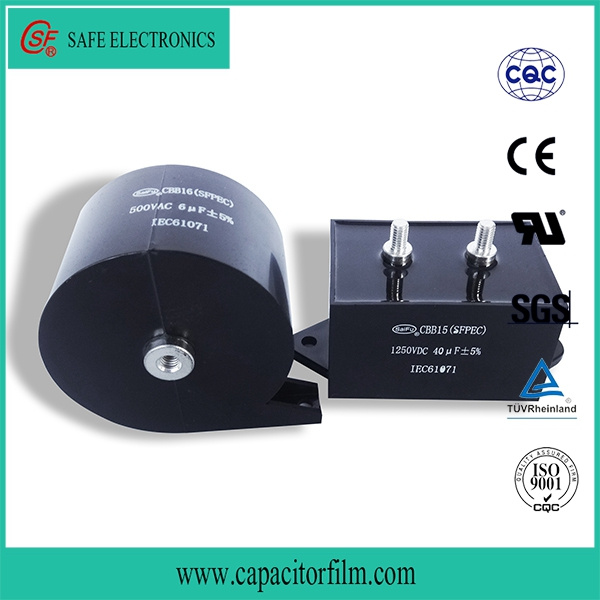

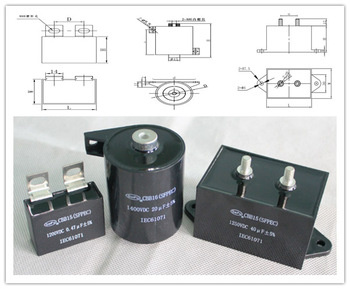

CBB15/16 Product show:
CBB15/16 product package:
CBB15/16 applications:
Our company's own proprietary technology improves product life and its safety performance. The product is widely used in the frequency converter , SVG, UPS, electric vehicles, hybrid vehicles, electroplating power supply, inverter welding machine, and reverse "across-the-bus" variable power supply circuit design, such as induction heating equipment, high-frequency switching power supply, elevator motor drives, solar / wind power converter etc. And it absorbs peak voltage and protects all kinds of IGBT modules.

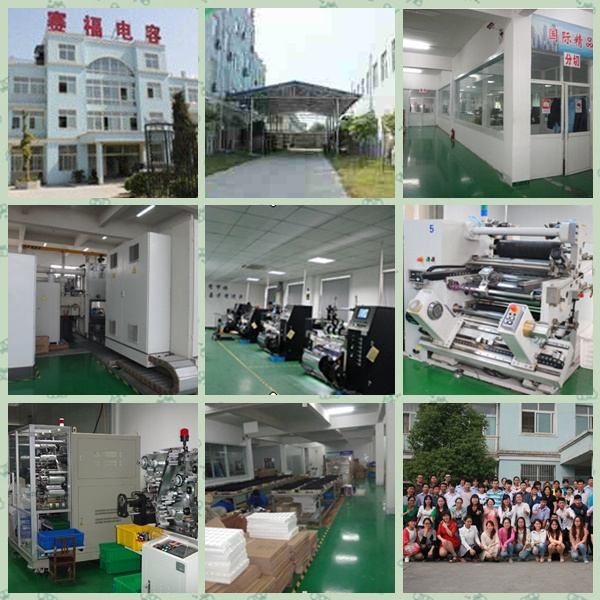

Our factory:
FAQ:
Certification:
More information you can visite our website: www.capacitorfilm.com or www.anhuisafe.com
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.
Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
