Cbb60 Air Compressor Capacitor, Lighting Capacitor

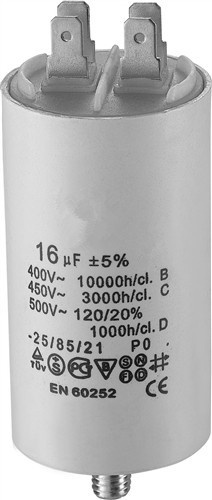

Name: Cbb60 Air Compressor Capacitor, Lighting Capacitor
Brand: all-electronics-online.com
SKU: 811769765
Availability: InStock
Rating: 4.7 (70 reviews)

Price:	US $ 0.12/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	cbb60
Capacitance (UF):	1-120UF
Life Times:	30000 Hours
Delivery Time:	2 Weeks
Service:	ODM and OEM
Certificate:	UL ,Ce ,RoHS ,ISO9001 ,IEC60252
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

Main Feature:
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.

Applications:
Used widely in washing machine,water pump,air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.

Techinnical Parameters:

Capacitance range	1-150μf
Rated voltage Un	250v.ac/400/450V.ac
Rated frequency	50Hz;60Hz
Capacitance tolerance	±5%;±10%
Climatic category	-25+70°C
Dissipation factor(at 50Hz-Hz and 20°C)	≤0.002(100Hz,20°C)
Test voltage between terminals	2×Un for 3s
Test voltage between terminals and case	2×Un+1000VDC FOR 2s
Reference standard	EN 60252-1:2001;IEC252

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
