Cbb60 Generator Capacitor 35UF 450VAC
| Price: |
US $ 0.1-30/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CBB60 |
| Rated Voltage: |
200VAC-500VAC |
| Operating Temperature: |
40/85/21 |
| Terminal: |
Lead Wire,Pin or Cable (Also Customize) |
| Shape: |
Oval |
| Shell: |
Plastic |
| Protection Class: |
P0,P2 |
| Certificate: |
UL,TUV,CQC,ISO9001,SGS |
| OEM: |
Ok |
| Service: |
24 Hours Online |
| Color: |
White or Black |
| Type: |
Polystyrene-film-capacitors |
| Application: |
Fan |
| Package Type: |
Through Hole |
| Capacitance: |
1~60UF |
| Electrolyte: |
Castor Oil |
| Usage: |
Fan/AC/Motor |
| Tuning: |
Film Capacitor |
| Filter: |
Film Capacitor |
Product Description

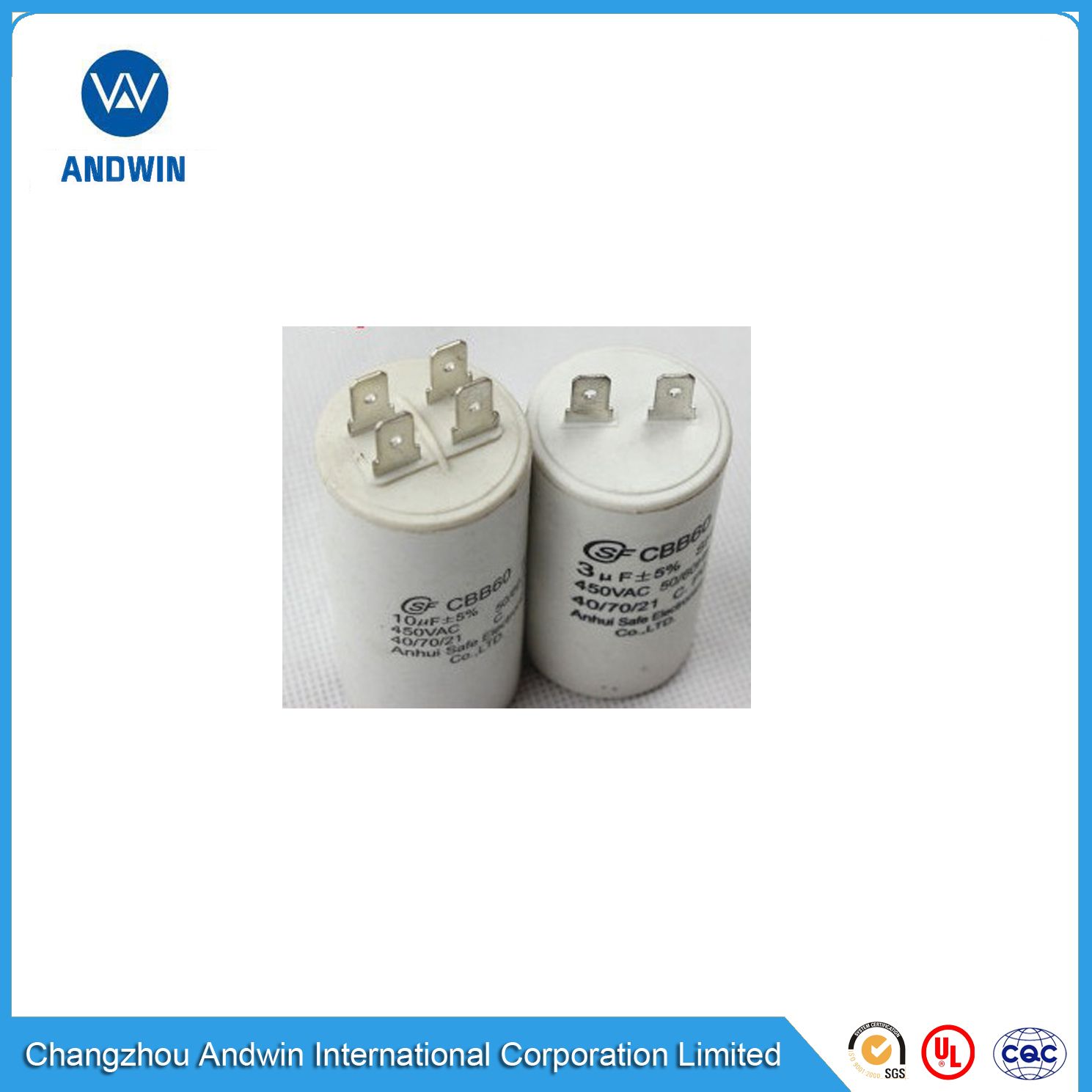

CBB60 Generator Capacitor 35UF 450VAC
Air conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.Specifications:CBB60 AC Motor Run Capacitor, it is used for the starting and running of 50~60 Hz AC single-phase motors.
Metalized Polypropylene Film/ AC Motor Run Capacitor CBB60
FEATURES & USE:
1. Small and light;
2. High insulation resistance, small warm up inside;
3. Low wastage, suit for Alternating Current;
4. Good capacitance stability and self-recovery;
5. Safety and high reliability due to flame-retardant plastic and metal case enclosed and flame-retardant epoxy resin filled.
6. CBB60 Metalized Polypropylene Film Capacitor, which can be used for the start and running of 50/60Hz AC (Alternating Current) single-phase asynchronous motors, pumps, washing machines and so on.
Specifications: Can be supplied according to the customers' special need.Technical parameter:1. Operation Temperature: -40oC~85oC
2. Raed Voltage: 220~630V. AC
3. Voltage Proof: T-T 2UR/10S T-C 2200V. AC/10S
4. Capacitance Tolerance: ± 5%, ± 10%
5. Insulation Resistance: T-T≥ 3000MΩ UF T-C≥ 1000 MΩ
6. Dissipation Factor: Tgδ ≤ 0.002
7. Capacitance Rang: CBB60: 1uf ~100uf
8. Dimension: CBB60 D: 22~65 H: 30~55
9. Reference Standard: IEC60252-1: 2001 GB/T3667-1-2005 Dimensions:| specifications | routine | with screws or pins |
| 450VAC | 250VAC | 450VAC | 250VAC |
| 1µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 2µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 2.5µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 3µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 3.5µF | Φ26*52 | Φ26*52 | Φ30*59 | Φ30*52 |
| 4µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
| 4.5µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
| 5µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
| 5.5µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 6µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 6.5µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 7µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 8µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 9µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 10µF | Φ34*62 | Φ26*52 | Φ35*72 | Φ30*52 |
| 12µF | Φ37*73 | Φ26*52 | Φ35*72 | Φ30*61 |
| 14µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
| 15µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
| 16µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
| 18µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ35*67 |
| 20µF | Φ40*70 | Φ34*62 | Φ40*72 | Φ35*67 |
| 25µF | Φ42*80 | Φ42*62 | Φ40*72 | Φ35*67 |
| 30µF | Φ42*90 | Φ40*72 | Φ45*95 | Φ40*72 |
| 35µF | Φ45*90 | Φ40*72 | Φ45*95 | Φ40*72 |
| 40µF | Φ50*100 | Φ42*90 | Φ50*110 | Φ40*97 |
| 45µF | Φ50*100 | Φ42*90 | Φ50*110 | Φ40*97 |
| 50µF | Φ50*100 | Φ42*90 | Φ50*120 | Φ40*97 |
| 60µF | Φ50*115 | Φ42*90 | Φ50*120 | Φ40*97 |
Note:Other specifications,size and terminal outside table are negotiable.
FAQ:1.How is your product quality?We strictly executive ISO9001 quality management system certification; and our products won UL CQC, TUV, VDE performance certification and SGS report.2.How can I get some samples?We are honored to offer you samples if you need! The little sample cost can be free, the large quantity samples,can be negotiable.Advanced production facilities and inspection equipmentFast delivery at large production capacity for big orders
Shipment:
Our another product:
Advanced One-Stop Purchasing Service. Welcome !Contact:Aimee Chen
Changzhou Andwin International Corporation Limited
Add:No.91 Hanjiang Road, New District, Changzhou, Jiangsu, China.
Phone: 0086 18015803382
Tel: 0086-519-83984950-803
Fax: 0086-519-83984950-808
Changzhou Andwin Company located in Changzhou Jiangsu near Shanghai city, which is a professional supplier of materials and parts of air conditioner, refrigerator, wash machine.
Andwin promotes One-Stop Purchasing Service for customers, thus to save customers' costing and time. Set up warehouse in Changzhou, manage all items and integrate resources around China for Customers.
Andwin company businesses cover: Capillary tube, aluminum tube, cu-al bimetal tube(ACC, CCA tube), CAT tube, brass, fan motors for air-con, Compressors, spin motor for wash machines, insulation connection pipe kits for air-con, PE tapes, soldering rod for copper tube and aluminum tube, all hardware such as fasteners, latches… All these items are related with Refrigeration industry, as Andwin is special and professional in this industry.
Through years of hard work, Andwin's successful clients cover Malaysia, Thailand, Korea, Pakistan, Australia, Turkey, Indonesia, India, Sri Lanka, Kuwait and so on. Choosing Andwin company as professional partner in China, you can leave out lots of affairs, will not worry about your fund security and goods quality. Andwin will handle all these for you.
