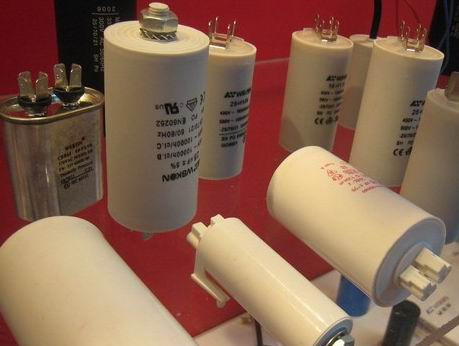

Cbb60 Lighting Capacitor with UL Certificate

Name: Cbb60 Lighting Capacitor with UL Certificate
Brand: all-electronics-online.com
SKU: 814111185
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	US $ 0.2-0.24/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	cbb60
Capacitance Range:	1-120UF
Terminals:	Wire ,Cable Wire ,Faster on Terminals with Bolt
Body Materials:	Plastic or Al Can
Certificate:	UL ,Ce ,RoHS ,ISO9001 ,IEC60252
Life Time:	Three Years
Delivery Time:	2 Weeks
Payment:	30% T/T for Order Confirmation
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-120UF

Product Description

CBB60 series washing machine capacitors ./AC motor run capacitors
1 Main Feature
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
2 Applications
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
3 Manufacturing
Self-healing metallized polypropylene film capacitors
Non inductive winding.
Wound capacitor elements fully immersed into resin.
Self-extinguishing plastic case.
Execulions:
Flat bottom-metal fixing stud M8×1 2
faston terminals 0.8×6.35 simple or double
standard distance p=13.2mm±0.5
unipolar cable-bipolar cable
discharge resistance-Dlaslic cover

4 Techinnical Parameters

Capacitance range	1-120μf
Rated voltage Un	250v.ac/400/450V.ac
Rated frequency	50Hz;60Hz
Capacitance tolerance	±5%;±10%
Climatic category	-25+70ºC
Dissipation factor(at 50Hz-Hz and 20ºC)	≤0.002(100Hz,20ºC)
Test voltage between terminals	2×Un for 3s
Test voltage between terminals and case	2×Un+1000VDC FOR 2s
Reference standard	EN 60252-1:2001;IEC252

apacitance(μf)	250 V. ac-450 V. ac ΦD×H(mm)
3μf	25×57
3.5μf	25×57
4μf	25×57
4.5μf	32×55
5μf	32×55
6μf	32×55
8μf	32×55
10μf	36×58
12μf	36×70
15μf	40×70
16μf	40×70
18μf	40×70
20μf	40×70
21μf	40×70
22μf	40×70
25μf	45×70
30μf	45× 92

31.5μf	45× 92
35μf	45× 92
36μf	45× 92
40μf	45× 92
45μf	50×92
47μf	50×92
50μf	50×92
55μf	50×117
60μf	50×117
65μf	50×117
70μf	55×120
75μf	55×120
80μf	60×120
85μf	60×120
90μf	60×120
95μf	60×120
100μf	60×120

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
