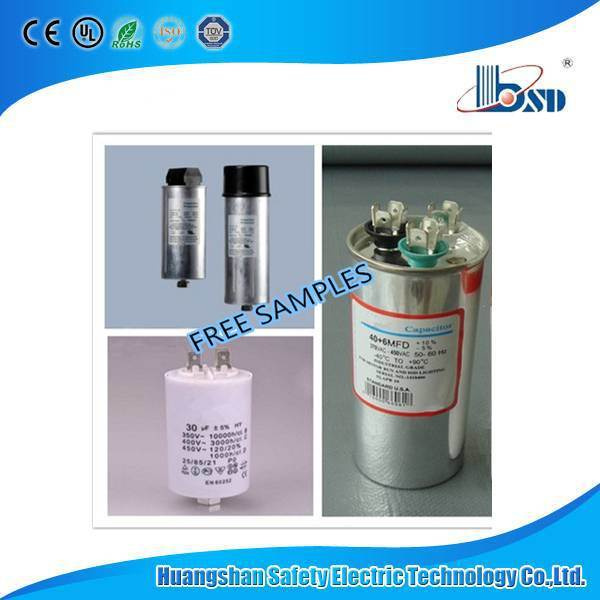

Cbb60 Motor Run Capacitor, Good Quality, RoHS

Name: Cbb60 Motor Run Capacitor, Good Quality, RoHS
Brand: all-electronics-online.com
SKU: 838112365
Availability: InStock
Rating: 5 (146 reviews)

Price:	US $ 0.12/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB60
Material Type:	Plastic or Al Can
Warranty Time:	3 Years
Delivery Time:	2 Weeks
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

CBB60 Series motor run and start capacitors with UL ,CE ,VDE ,CQC ,ROHS ,ISO9001 certificate .

1 Main Feature:
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.

2 Applications:
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.

3 Manufacturing:
Self-healing metallized polypropylene film capacitors
Non inductive winding.
Wound capacitor elements fully immersed into resin.
Self-extinguishing plastic case.
Execulions:
Flat bottom-metal fixing stud M8×1 2
faston terminals 0.8×6.35 simple or double
standard distance p=13.2mm±0.5
unipolar cable-bipolar cable
discharge resistance-Dlaslic cover

4 Techinnical Parameters :

Capacitance range	1-150μf
Rated voltage Un	250v.ac/400/450V.ac
Rated frequency	50Hz;60Hz
Capacitance tolerance	±5%;±10%
Climatic category	-25+70ºC
Dissipation factor(at 50Hz-Hz and 20ºC)	≤0.002(100Hz,20ºC)
Test voltage between terminals	2×Un for 3s
Test voltage between terminals and case	2×Un+1000VDC FOR 2s
Reference standard	EN 60252-1:2001;IEC252
