Cbb60 Motor Run Capacitor with UL, Ce Certificate

Name: Cbb60 Motor Run Capacitor with UL, Ce Certificate
Brand: all-electronics-online.com
SKU: 814686145
Availability: InStock
Rating: 4.5 (142 reviews)

Price:	US $ 0.12/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	cbb60
Capacitance (UF):	1-120UF
Terminals:	Wire Leading ,Cable Wire Ledaing or Pins with Bolt
Voltage:	220VAC ,370VAC ,400VAC ,440VAC 500V
Service:	ODM & OEM
Certificate:	UL ,Ce ,RoHS ,ISO9001 ,IEC60252
Delivery Time:	2 Weeks
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

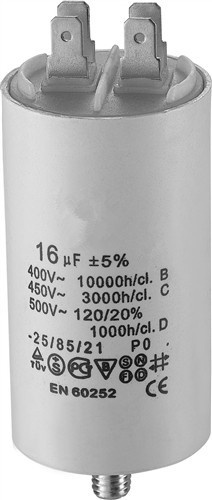

Motor run capacitor series (CBB60)
1 Main FeatureLow dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.2 Applications
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
3 Manufacturing
Self-healing metallized polypropylene film capacitors
Non inductive winding.
Wound capacitor elements fully immersed into resin.
Self-extinguishing plastic case.
Execulions:
Flat bottom-metal fixing stud M8×1 2
faston terminals 0.8×6.35 simple or double
standard distance p=13.2mm±0.5
unipolar cable-bipolar cable
discharge resistance-Dlaslic cover

Range		1-120μF
Rated voltage Vn		400V.ac
Rated frequency		50Hz;60Hz
Capacitance tolerance		±5%;±10%
Climatic category		-25+85ºC
Dissipation Test voltage between armatures factor(at 50Hz-100Hz and 20ºC)		≤0.0022.15×Vn for 2s
Test voltage between terminals and case		2.5kV.ac for 1s
Reference standard		EN 60252,ROHS,

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
