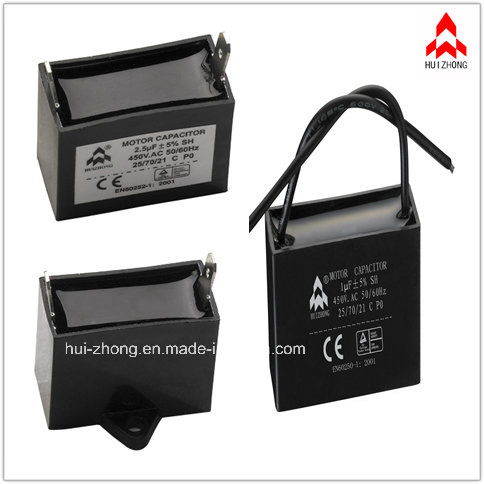

Name: Cbb61 Capacitor 450VAC
Brand: all-electronics-online.com
SKU: 301007327
Availability: InStock
Rating: 5 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Type:	Polypropylene Capacitor
Package Type:	Through Hole
Capacitance:	1-50uf

Product Description

CBB61 POLYPROPYLENE PELLICLE CAPACITORS SERIES
Main Feature:
Low dissipation factor,small inherent temperature rise.excellent
self-healing stability,safety and high voltage withstand,etc.
Applications:
To start and run single phase motors in alternating current usage.

Techinnical Parameters:
Capacitance range:1 uF~25uF
Rated voltage:250~500Vac (50 Hz/60Hz)
Capacitance tolerance:±5%,±10%
Dissipation factor:≤0.0020(100Hz)
Climate category:-25/70/21
Size:

Rated Capacitance(μf }	250V. ac	400 V. ac-450 V. ac
Rated Capacitance(μf }	LxWxH(mm)	LxWxH(mm)
1	37x11 x25	37x11 x25
1.2	37x11 x25	37x11 x25
1.5	37x14x26	37x14x26
2	37x17x27	37x17x27
2.5	37x17x27	37x17x27
3	37x20x27	37x20x27
4	47x18x33	47x18x33
5	47x18x33	47x18x33
6	47x18x34	47x18x34
8	50x23x40	50x23x40
10	50x23x40	50x23x40

Remark: Special requirement can be fulfilled at the request Of Customers

We were founded in 1991 and later developed to a company with working force of over 500staffs, among which are 50 technicians. Our working facilities cover an area of 100, 000 square meters with floor area of 25, 000 square meters.

We are specialized in manufacturing all kinds of metallized film AC/DC capacitor, aluminum electrolytic capacitor, power capacitors, motor capacitors, etc. With fixed assets reaching USD5, 000, 000, we own a special production line of annual output over 4, 000, 000 electronic containers.

Our products have gained an envious reputation overseas due to their high quality standards and consistent performance under all conditions. Together with UL, CE, CCEE, VDE and TUV certification that we have received for various series, we have also obtained ISO9001: 2000 authorization.

Our pursuit of first-rate quality, competitive prices and comprehensive after-sales services offers both potential and long-standing clients confidence in our company. If your business needs any of the products we have available, please contact us with your details of your specific requirement.
