| Prod Model: |
CBB61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black, Gray, White |
| Capacity: |
1-30UF |
| Rated Voltagge: |
200-250VAC |
| Capacitance Tolerance: |
±5% |
| Insulation Resistance: |
≥4000s |
| Type: |
Polypropylene Capacitor |
| Application: |
Fan |
| Package Type: |
Surface Mount |
| Capacitance: |
1UF-30UF |
Product Description

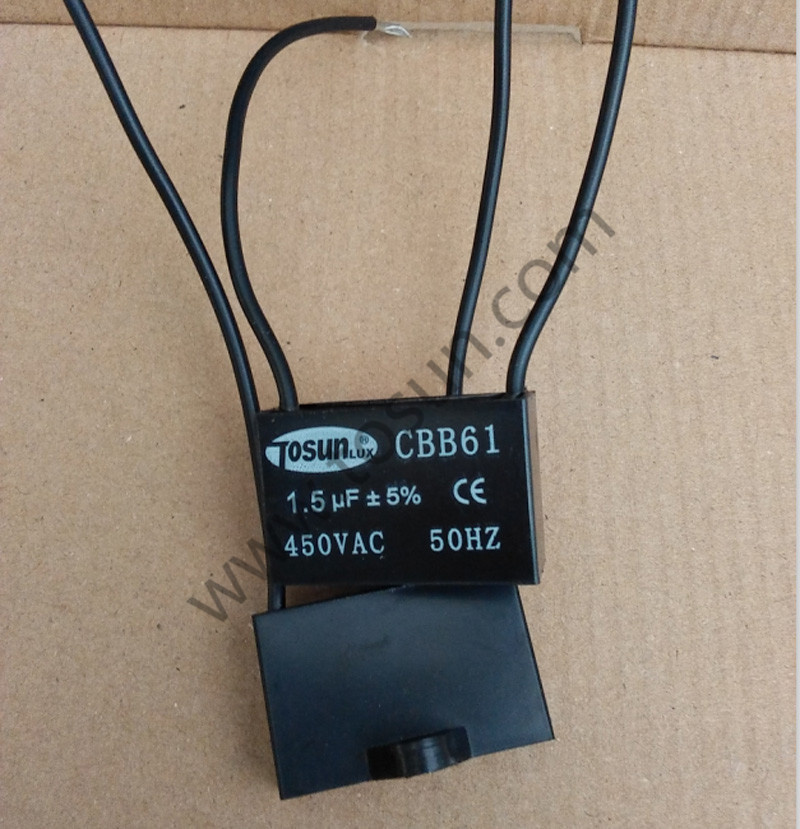

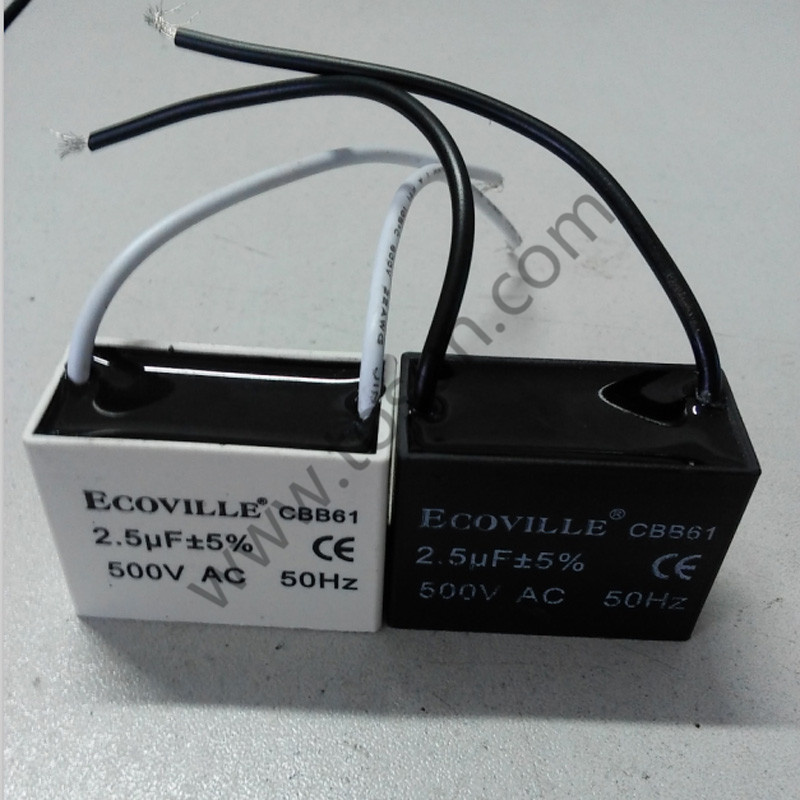

CBB61 Fan Capacitor for Air conditioner, Electric Water Pump, Electric motor and etc.ApplicationNone induction winding structure of metallic polypropylene membrane.
Use square plastic shell and insulation sealed lid for sealing, plastic lid for sealing or resin for sealing.
Small volume, light weight, low loss, excellent sel-healing performance.
Copper soldering terminal. plastic coated copper wire and CP wire are available.
With its good self-healing characteristic long life span and high proportionality, it is widely used as the start-up.
Suitable for electric fan, air conditioner. electric water pump, electric motor and etc.
Widely used for starting and operating 50/60Hz single-phase electromotor.
It can continuously operate under rated conditions.Pictures
Specification | Capacitor | 1-30uf |
| Rated Voltage | 200-250VAC |
| Capacitance Tolerance | ±5% |
| Dissipation Factor | Tan≤0.002(50Hz) |
| Withstand Voltage | AC≥1.75 Un 2s(Imax≤1.3lnA |
| Insulation Resistance | ≥4000S |
| Operating Temperature | -40ºC~+70ºC |
Dimension
| Capacitor | 450VAC | 250VAC |
| L(mm) | W(mm) | H(mm) | L(mm) | W(mm) | H(mm) |
| 1uf | 36 | 11 | 22 | 37 | 15 | 26 |
| 1.5uf | 38 | 13.5 | 24 | 37 | 15 | 26 |
| 2uf | 38 | 15 | 25 | 38 | 15 | 26 |
| 3uf | 38 | 15 | 25 | 37 | 15 | 30 |
| 5uf | 47 | 20.5 | 33 | 37 | 16 | 30 |
| 8uf | 48 | 22 | 35 | 47 | 17 | 32 |
| 10uf | 47 | 23 | 35 | 47 | 17 | 33 |
| 12uf | 58 | 25 | 38 | 47 | 23 | 35 |
| 15uf | 59 | 28 | 40 | 47 | 23 | 35 |
| 18uf | 59 | 30 | 40 | 25 | 24 | 33 |
| 20uf | 59 | 30 | 40 | 58 | 26 | 38 |
| 25uf | - | - | - | 58 | 26 | 38 |
| 30uf | - | - | - | 58 | 26 | 38 |
