| Prod Model: |
CBB61 |
| Capacitance Tolerance: |
Around 5% |
| Voltage Range: |
200~500VAC |
| Reference Standards: |
GB/T 3667.1 (IEC60252-1) |
Product Description
CBB60/65 Super Capacitors AC Motor Electrolytic Capacitor (column,plastic case)
Features:
1: Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
2: Self-healing property.
3: High stability and reliability.
4. Safer with Anti-explosion design.
5. Round capacitor, can be provided oval capacitor
6. Single capacitor, Can be provided double
Motor capacitor, oil capacitor, IGBT capacitor, aluminum case capacitor , anti-explosion capacitor ,CBB65 motor run capacitor,CBB61 capacitor, air conditioner capacitor ,fan capacitor, inverter welding capacitor,
The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Technical Specifications:
1. Capacitance: 1uF --50uF.
2. Rated voltage: 250VAC / 370VAC / 440VAC / 450VAC / 500VAC
3. Operating temperature: 40 /85/21
4. Operating frequency: 50/60Hz
5. Endurable voltage (T-T): 1.75Un/2.0Un
6. Tangent of loss angle: <=0.0040(1kHz)
7. Capacitance deviation: +-5%
8. Out leads: Wire or tabs
9. Specifications can be supplied according to the customers' special need.
10. Reasonable price and stable quality.
Dimensions(mm)
| CBB61 metalized film capacitor | |
| Specification |

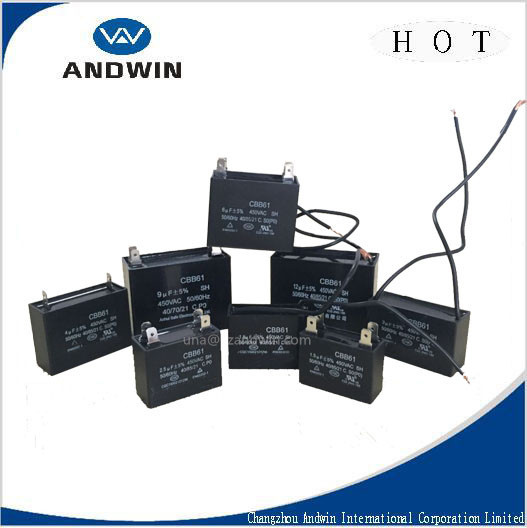

| product name: | CBB61 fan motor capacitor |
| product type: | polypropylene film capacitor |
| Model Number: | CBB61 |
| Capacitance: | 1-60uf |
| capacitance tolerance | ± 5% |
| Rated Voltage: | 110V-630VAC |
| Operating Temperature: | -40~70° C |
| Climate type: | 40/70/21 |
| Application: | AC motor, air conditioner, washing machine, water pump and generator. |
| Safety Class: | P0, P1 |
| Certificate: | CE, ROHS, CUL, TUV, DIN, CQC, SGS |
| the Leader type: | wire/2 pin/4pin |
| Material: | Plastic/metal case |
| Housing Color: | black, white aluminium, grey aluminium, blue |
| product Size: | kinds of different sizes or as customer' s request. |
Note:Other specifications,Size and terminal outside table are negotiable.
Other specifications, Size and terminal outside table are negotiable.
Note:Other specifications,size and terminal outside table are negotiable.
