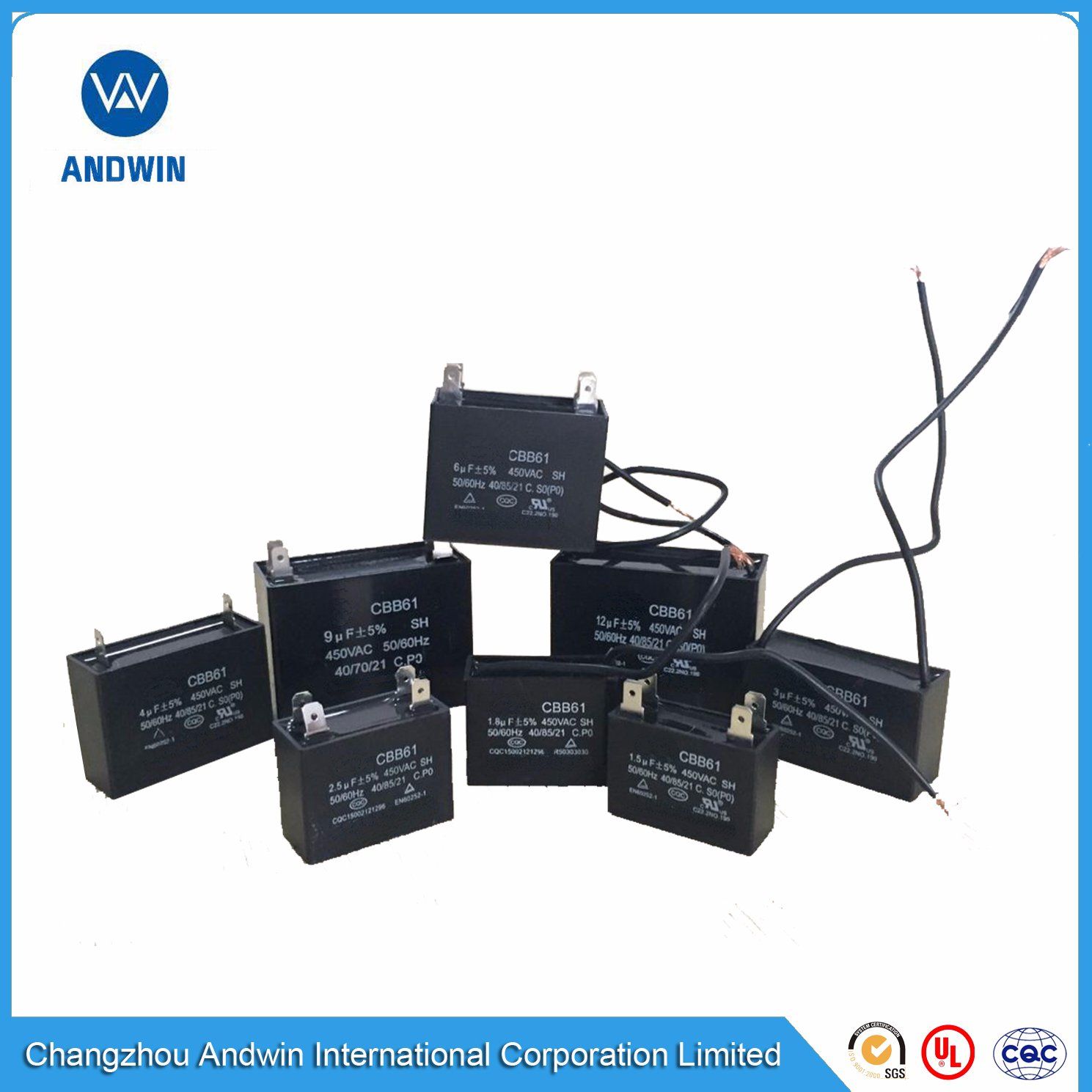

Cbb61 Fan Motor Run Capacitor, Capacitor for Fan

Prod Model:	Cbb61
Capacitance Tolerance:	Around 5%
Voltage Range:	200~500VAC
Reference Standards:	GB/T 3667.1 (IEC60252-1)
Type:	Polypropylene Capacitor
Application:	Fan
Capacitance:	1-50uf
Package Type:	Standard Waterproof Packing

Product Description

CBB AC motor capacitor(column,plastic case)



Features:
1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
2:Self-healing property.
3:High stability and reliability.

Motor capacitor, oil capacitor, IGBT capacitor, aluminum case capacitor , anti-explosion capacitor  ,CBB65 motor run capacitor,CBB61 capacitor, air conditioner capacitor ,fan capacitor, inverter welding capacitor,

The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.

Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.

Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
Insulation Resistance:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)

Application requirements:
Altitude:≤2000m
Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current

Dimensions & specifications (mm):


Rated voltage(VAC)	Nominal capacitance(μF)	Size(mm)
		D	H
200,250,370,  400,440,450,600  ,700,1200	1,1.2,1.5,2,2.5,3,3.5,4,4.5,  5,5.5,6,6.5,7,8,10,10.5,11,  11.5,12,15,16,20,25,30,35,  40,45,50,55,60,  12+6, 10+5.5, 13+6,…	30,32,35,40, 41,43,45,46, 50	47,57,65,73,80,84,85,98,105,110


Note:1,Terminal leads are wires or 250# (187#) single (dual) tab(s).
         2,Other dimension serials can be specified in pursuance of customer's request.


reference standards	GB/T 3667.1 (IEC60252-1)
Climatic category	40/70/21,  40/85/21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	P0/P2
Voltage range	200~500VAC
Capacitance range	1~60 µF
Capacitance tolerance	±5%
Dissipation factor	20×10-4 (100Hz,20ºC)
Test voltage terminal to terminal UTT	2 Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or  2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000MΩ.µF(100Hz,20ºC,1min)


Dimensions:


specifications	routine		with screws or pins
	450VAC	250VAC	450VAC	250VAC
1µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
2µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
2.5µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
3µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
3.5µF	Φ26*52	Φ26*52	Φ30*59	Φ30*52
4µF	Φ28.5*55	Φ26*52	Φ35*62	Φ30*52
4.5µF	Φ28.5*55	Φ26*52	Φ35*62	Φ30*52
5µF	Φ28.5*55	Φ26*52	Φ35*62	Φ30*52
5.5µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
6µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
6.5µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
7µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
8µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
9µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
10µF	Φ34*62	Φ26*52	Φ35*72	Φ30*52
12µF	Φ37*73	Φ26*52	Φ35*72	Φ30*61
14µF	Φ37*73	Φ34*62	Φ40*72	Φ30*61
15µF	Φ37*73	Φ34*62	Φ40*72	Φ30*61
16µF	Φ37*73	Φ34*62	Φ40*72	Φ30*61
18µF	Φ37*73	Φ34*62	Φ40*72	Φ35*67
20µF	Φ40*70	Φ34*62	Φ40*72	Φ35*67
25µF	Φ42*80	Φ42*62	Φ40*72	Φ35*67
30µF	Φ42*90	Φ40*72	Φ45*95	Φ40*72
35µF	Φ45*90	Φ40*72	Φ45*95	Φ40*72
40µF	Φ50*100	Φ42*90	Φ50*110	Φ40*97
45µF	Φ50*100	Φ42*90	Φ50*110	Φ40*97
50µF	Φ50*100	Φ42*90	Φ50*120	Φ40*97
60µF	Φ50*115	Φ42*90	Φ50*120	Φ40*97

Note:Other specifications,size and terminal outside table are negotiable.
