Cbb61 FUJI 2.5UF Fan Metallized Polypropylene Film Capacitor

Name: Cbb61 FUJI 2.5UF Fan Metallized Polypropylene Film Capacitor
Brand: all-electronics-online.com
SKU: 698904762
Availability: InStock
Rating: 4.5 (125 reviews)

Price:	US $ 0.18/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell:	Plastic
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	1-50uf

Product Description

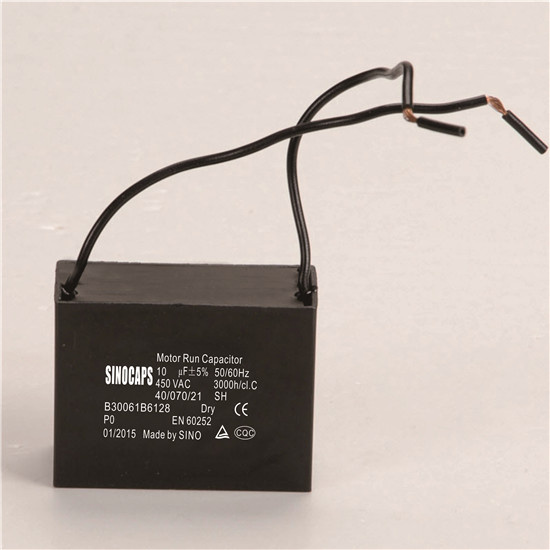

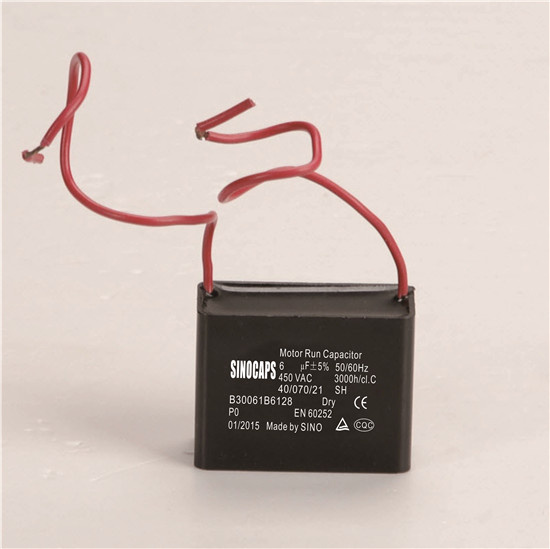

CBB61 AC motor run capacitor

Detailed Product Description:

1. Used widely in motors, fans.

2. High performance & Long life Capacitor.

3. Work well even in hot area.

Main Feature:

Low dissipation factor,small inherent temperature rise.excellent

self-healing stability,safety and high voltage withstand,etc.

Applications:

To start and run single phase motors in alternating current usage.

MSDS of SINO #CBB61 Motor run capacitor:
Capacitance Range	1μF~30μF
Rated Voltage	250VAC~500VAC(50/60Hz)
Capacitance Tolerance	±5% or Fulfilled upon request
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Standard Temperature	-25ºC~+70ºC,-40ºC~+85ºC
Climate Class	25/70/21, 40/85/21
Test Voltage	Between terminals	AC≥2.00Un 2S NO BREAKDOWN
	Between terminals and case	AC≥2000V 2S NO BREAKDOWN
Insulation Resistance	Between terminals	Rj·C≥3000MΩ.μF
	Between terminals and case	Rj≥1000 MΩ.μF
Security Level	P0, P1, P2
Executing Standard	GB/T3667.1-2005, IEC60252-1:2001, IEC252
