| Prod Model: |
CBB61 |
| Rating Capacity (UF): |
1-25UF |
| Rating Voltage: |
250-500VAC |
| Testing Voltage: |
T-T 2un/2s T-C:2200VAC,10s |
| Inslutation Resistance: |
T-T ≥3000m.Ωμf |
| Working Temperature: |
- 25ºC -70ºC |
| Loss Tangen: |
< 0.004(100Hz) |
| Frequency: |
50/60Hz |
| Size: |
Can Be Customized |
| Tolerance: |
Can Be ±3% as Well |
Product Description

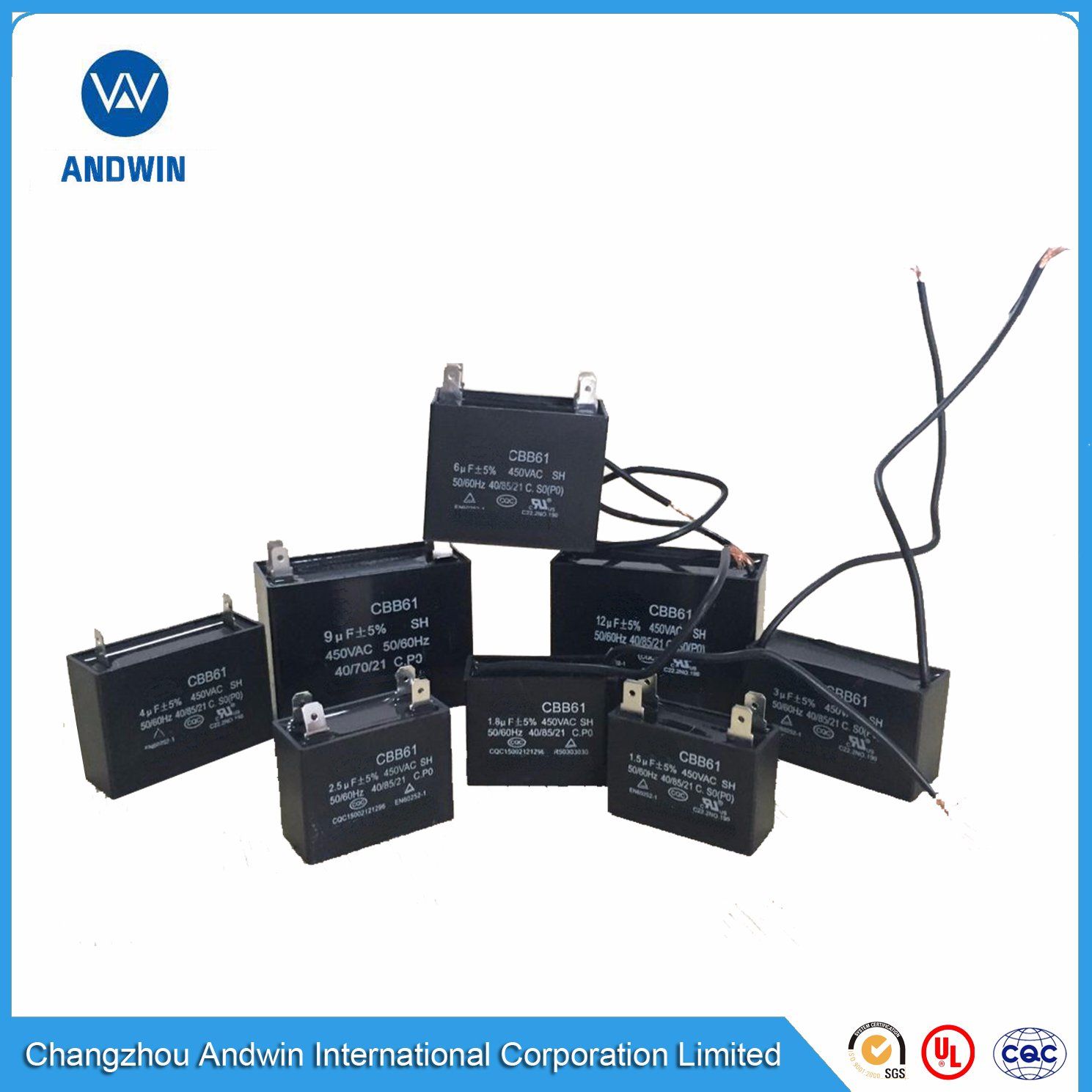

CBB61 AC Metallized polypropylene capacitor
Product Description
Fan capacitor, CBB61 capacitor,air conditioner capacitor , oil capacitor, motor capacitor, IGBT capacitor, CBB65 motor run capacitor, aluminum case capacitor ,anti-explosion capacitor ,inverter welding capacitor. The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. It is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size, reliable performance and long endurance. Applications: Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans, electric fans and exhaust fans etc. at comparatively low rated power. Technical SpecificationsStandard:IEC 60252-1:2001
Technical Parameter
Execution standard:GB/T3667.1-2005
Climate type: 25/70/21
Tolerance of capacity: ±5%
Insulation resistance:≥5000SµFI>R
Electeodes Voltage T-T:2Un,2Seconds
Loss tangent:tgδ≤0.002(50Hz~100Hz)
| Rating Capacity (UF) | Rating Voltage | Testing Voltage | Inslutation Resistance | Working Temperature | Loss Tangen | Frequency |
| 1-25UF | 250-500VAC | T-T 2Un/2S T-C:2200VAC,10S | T-T ≥3000M.Ωμf | - 25ºC -70ºC | < 0.004(100HZ) | 50/60HZ |
| Capacitance | Terminal | Size | | Capacitance | Terminal | Size |
| 450V1.0UF | 187 # Pin | 36*10*20 | | 450V8.0UF | 187 # Pin | 48*20.5*33 |
| 450V1.5UF | 187 # Pin | 36*11*22 | | 450V10.0UF | 187 # Pin | 48*23*35 |
| 450V2.0UF | 187 # Pin | 37*13.5*24 | | 450V12.0UF | 187 # Pin | 48*23*35 |
| 450V3.0UF | 187 # Pin | 37*16*26 | | 450V14.0UF | 187 # Pin | 48*30*40 |
| 450V3.5UF | 187 # Pin | 37*17*28 | | 450V15.0UF | 187 # Pin | 48*30*40 |
| 450V4.0UF | 187 # Pin | 38*18.5*29 | | 450V16.0UF | 187 # Pin | 48*32*43 |
| 450V4.5UF | 187 # Pin | 38*19.5*29 | | 450V18.0UF | 187 # Pin | 58*28*38 |
| 450V5.0UF | 187 # Pin | 38*20*31 | | 450V20.0UF | 187 # Pin | 58*30*40 |
| 450V6.0UF | 187 # Pin | 38*22*31 | | 450V25.0UF | 187 # Pin | 57*32*44 |
Size is as follows. also can be done as your requirement.

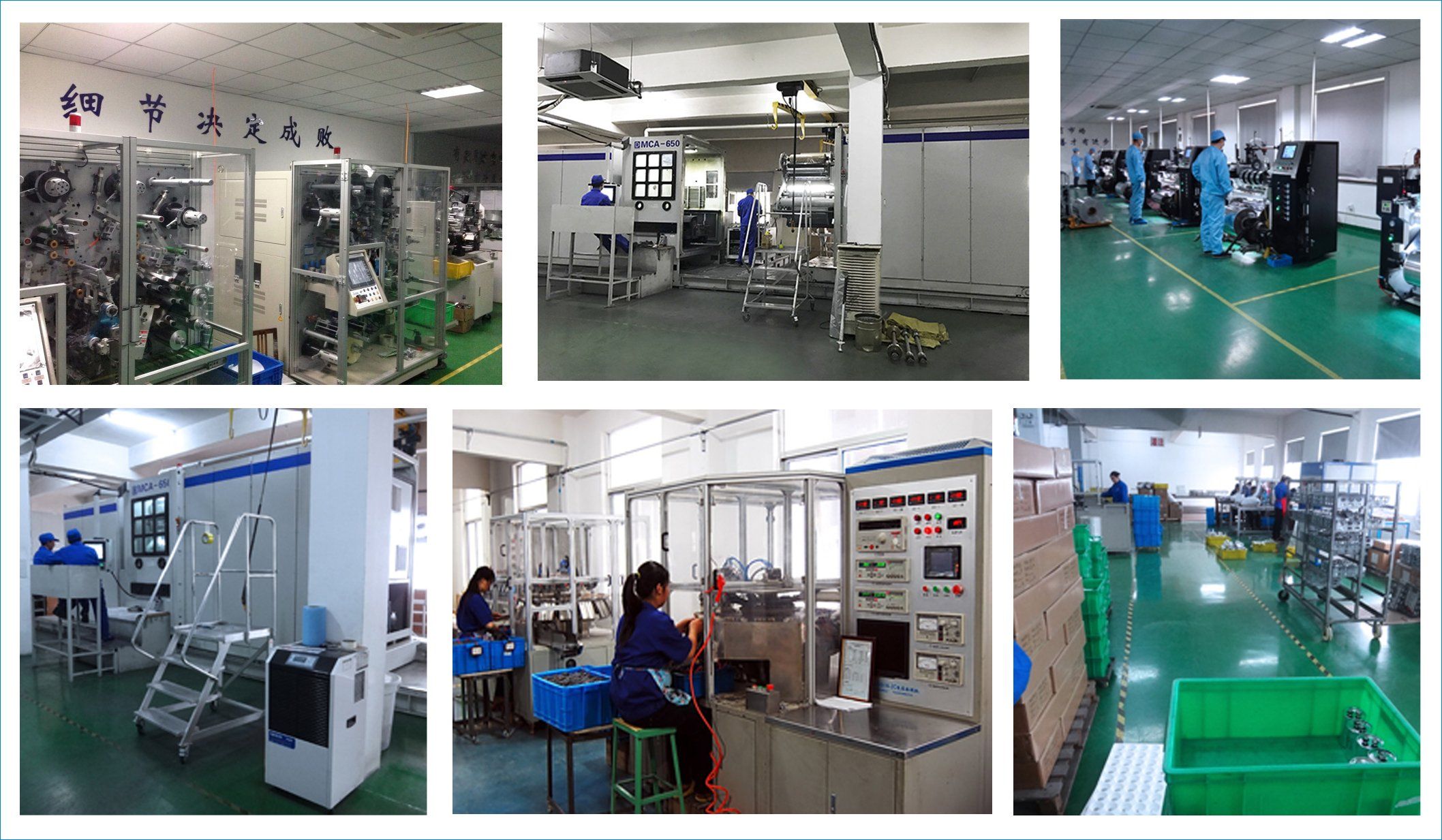

Application requirements:Altitude:≤2000mResidual voltage in application: less than 10% of rated voltage.Allowed maximum voltage: less than 1.1 times of rated voltagePermissible maximum current: less than 1.3 times of rated currentProduction
Packing
6. Our SerivePre-sale service:
1. 24 hour online to ensure quick response to customers inquiry or online message.2. Guide customers to choose the best suitable machine model.3. Offer detailed specification and competitive prices.
Contract execution:1. Product production will be arranged strictly according to the contract.2. Product photos will be sent to your for inspection during production.3. Update latest news after delivery and prepare customs clearance.
After-sale service:
1.12 months warranty except for wear parts.2. Broken spare parts(except for wear parts) will be sent for free due to the quality problems.3. In time response to customers technical problems.
4. New products update for customers' reference. 7. FAQ
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4. What is your sample policy?
A: We are glad to send samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q5. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: How to confirm the quality with us before starting to produce? 1) We can provide samples and you can choose one or more, then we make the quality according to your requests.
2) Send us your samples, and we will make it according to your quality.
Q7: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q8. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
