Cbb65 Air Conditioner Compressor Capacitor /Motor Run and Start Capacitor

Name: Cbb65 Air Conditioner Compressor Capacitor /Motor Run and Start Capacitor
Brand: all-electronics-online.com
SKU: 782107845
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 0.55-3.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB 65 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types And Specification:	Oil Filled Motor Run Capacitor for Air Conditioner
Cacitance (UF):	1-120UF
Certificate:	UL ,CE ,RoHS ,ISO9001 ,IEC60252
Safety Grade(Class):	Explosion-Proof; &P2 Grade
Warranty Time:	3 Years
Service:	OEM and ODM Service
Delivery Time:	2 Weeks
Type:	Polypropylene Capacitor
Application:	Air Conditioner
Package Type:	Surface Mount
Capacitance:	1-100UF

Product Description

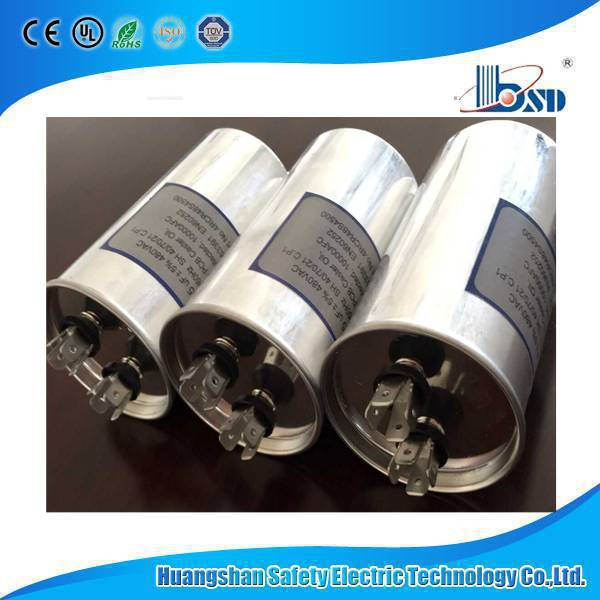

CBB65 series motor run and start capacitor ,for air-conditioner ,motor with UL ,CE ,VDE ,ROHS ,IEC60252 ,ISO9001-2008 Certificate and standards

Applications:

Run starting in household electric appliances air conditioner,

refrigerator which demand 50/60Hz AC power supply Have

safe protection constrution.

Specifications

Climatic

category

Rate voltage

Testing voltage

T-T

Testing voltage

T-C

Capacitance

tolerance

Dissipation

factor

-25/+70/21

-40/+85/21

370/440VAC

1.75Un/5S

(2Un/5S)

2000V.AC/5s

±5%

(±10%)

≤0.002

(100Hz)

Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD

Dimension(mm):D: Φ40-Φ60,H:60-150

Reference standard:UL810,IEC252,EN60252,GB3667

Certificate,UL 10,000AFC,CE ,ROHS ,ISO9001-2008

Safety grade:P1,P2.

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

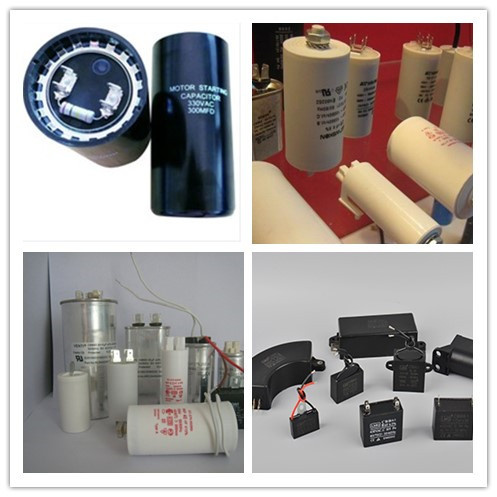

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
