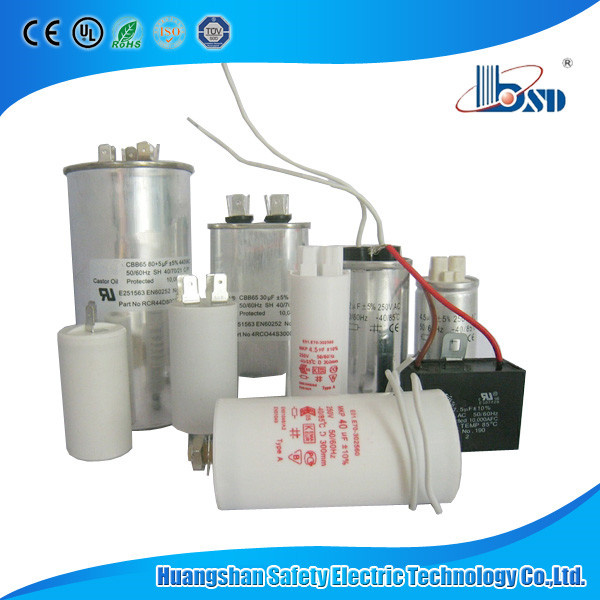

Cbb65 Round Type Air-Conditioner Capacitors

Name: Cbb65 Round Type Air-Conditioner Capacitors
Brand: all-electronics-online.com
SKU: 813989785
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	US $ 0.55-3.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	cbb65
Items:	General Purpose, AC / Motor, Lighting, Air Condit
Capacitance (UF):	1-100UF
Voltage:	250V,370V,440V,450V
Life Time:	10000-30000 Hours
Safety Grade:	P2
H.S.Code No:	8532.25.90
Certificate:	Ce ,UL ,RoHS ,
Type:	Polypropylene Capacitor
Application:	Air Conditioner
Package Type:	Surface Mount
Capacitance:	1-100UF

Product Description

Capacitor series for air conditioner (CBB65) With UL ,CE ,ROHS ,ISO9001-2008 ,IEC60252 certificate
1 Main Feature
Low dissipation factor small inherent temperature rise, excellent self-healing stability safety and high voltage withstand etc.
2 Applications
Running and starting in household electric appliances air conditioner,Refrigerator which demand 50/60Hz AC power supply Havesafe protection construction.
3 Specifications

Climatic Category	Rate voltage	Testing voltage T-T	Testing voltage T-C	Capacitance Tolerance	Dissipation Factor
40/70/21 40/85/21 40/90/21 40/105/21	110V.AC-600V.AC	1.5Un/5S 1.75Un/5S 2.0Un/5S	2000V.AC/5S	±3% ±5% ±10%	≤0.002 (50Hz/60Hz)

capacitance Range	Dimension	Reference Standard	Certifilcation	class of Operation	Safety grade
3μf ~ 120μf	D:Φ42 ~ Φ60 W:51.5(71) H:60 ~ 240 T:31.5(45)	UL810 IEC252 GB3667 EN60252	UL CE	A 30000h B 30000h C 30000h	P2

4 Outline size

Capacitance	OVAL SHAPE DIMENSION in mm
Capacitance	WIDT(W1)	DEPTH(W2)	HEIGHT(L)
2MFD	52	32	40
3MFD	52	32	40
4MFD	52	32	60
5MFD	52	32	60
6MFD	52	32	60
7.5MFD	52	32	60
10MFD	52	32	80
12.5MFD	52	32	80
15MFD	52	32	80
17.5MFD	71	45	80
20MFD	71	45	80
25MFD	71	45	80
30MFD	71	45	90
35MFD	71	45	90
40MFD	71	45	90
45MFD	71	45	90
50MFD	71	45	90
55MFD	71	45	110
60MFD	71	45	110

Capacitance	ROUND SHAPE DIMENSION in mm
Capacitance	DIA.(d)	HEIGHT(L)
5MFD	42	60
6MFD	42	60
7.5MFD	42	60
10MFD	42	70
12.5MFD	42	70
15MFD	42	80
17.5MFD	42	80
20MFD	45	80
25MFD	45	90
30MFD	50	100
35MFD	50	100
40MFD	50	110
45MFD	50	110
50MFD	50	110
55MFD	55	130
60MFD	55	130
70MFD	60	120
80MFD	60	120

*Special requirement can be fulfilled at the request Of Customers
