Cbb65 Series Aluminum Run Capacitor with UL

Name: Cbb65 Series Aluminum Run Capacitor with UL
Brand: all-electronics-online.com
SKU: 826621775
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	US $ 1-2/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	cbb65
Appearance:	Round
Mold:	CD60
Voltage:	110V
Colour:	Blue, Black,White...
Type:	Aluminum Electrolytic Capacitor
Application:	Air Conditioner
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

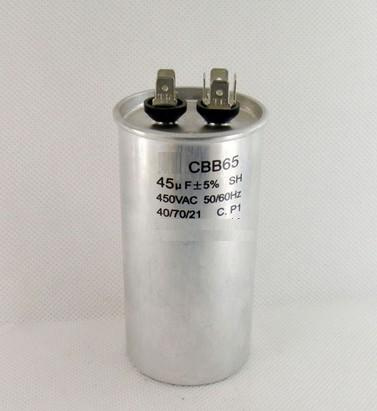

Cbb65 Series Aluminum Run Capacitor with UL

Run capacitor for single phase a/c motors for running, air conditioner, refrigerator, lamps, pumps.

Type: CBB 65, Oval type, aluminum sealed oil-filled.
Capacitance Range: 5-50mfd
Temperature range: -25~85 degree
Rated voltage: 250-500vac

Certificate: UL, CE, SGS.

CD Series

No. Model Capacity Size
1 CD60 21-25uF 110VAC 36x70mm
2 CD60 25-30uF 110VAC 36x70mm
3 CD60 30-36uF 110VAC 36x70mm
4 CD60 36-43uF 110VAC 36x70mm
5 CD60 43-52uF 110VAC 36x70mm
6 CD60 47-56uF 110VAC 36x70mm
7 CD60 53-64uF 110VAC 36x70mm
8 CD60 64-77uF 110VAC 36x70mm
9 CD60 72-88uF 110VAC 36x70mm
10 CD60 88-108uF 110VAC 36x70mm
11 CD60 108-130uF 110VAC 36x70mm
12 CD60 124-149uF 110VAC 36x70mm
13 CD60 130-156uF 110VAC 36x70mm
14 CD60 145-175uF 110VAC 36x70mm
15 CD60 161-193uF 110VAC 36x70mm
16 CD60 189-227uF 110VAC 36x85mm
17 CD60 216-259uF 110VAC 36x85mm
18 CD60 223-280uF 110VAC 36x85mm
19 CD60 243-292uF 110VAC 36x85mm
20 CD60 270-324uF 110VAC 36x85mm
21 CD60 324-389uF 110VAC 36x85mm
22 CD60 340-408uF 110VAC 46x85mm
23 CD60 378-454uF 110VAC 46x85mm
24 CD60 400-480uF 110VAC 46x85mm
25 CD60 430-515uF 110VAC 46x85mm
26 CD60 460-552uF 110VAC 46x85mm
27 CD60 540-648uF 110VAC 46x111mm
28 CD60 590-708uF 110VAC 46x111mm
29 CD60 645-774uF 110VAC 46x111mm
30 CD60 708-850uF 110VAC 46x111mm
31 CD60 720-864uF 110VAC 46x111mm
32 CD60 800-960uF 110VAC 46x111mm
33 CD60 815-978uF 110VAC 46x111mm
34 CD60 829-995uF 110VAC 46x111mm
35 CD60 850-1020uF 110VAC 46x111mm
36 CD60 1000-1200uF 110VAC 65x111mm
37 CD60 1280-1500uF 110VAC 65x111mm

Climatic category	Rate voltage	Testing voltage T-T	Testing voltage T-C	Capacitance tolerance	Dissipation factor
-25/+70/21 -40/+85/21	370/440VAC	1.75Un/5S (2Un/5S)	2000V.AC/5s	±5% (±10%)	≤0.002 (100Hz)

If you request it, please kindly send us the details, we would send our competitive prices to you for your reference.

Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.

With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.

Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
