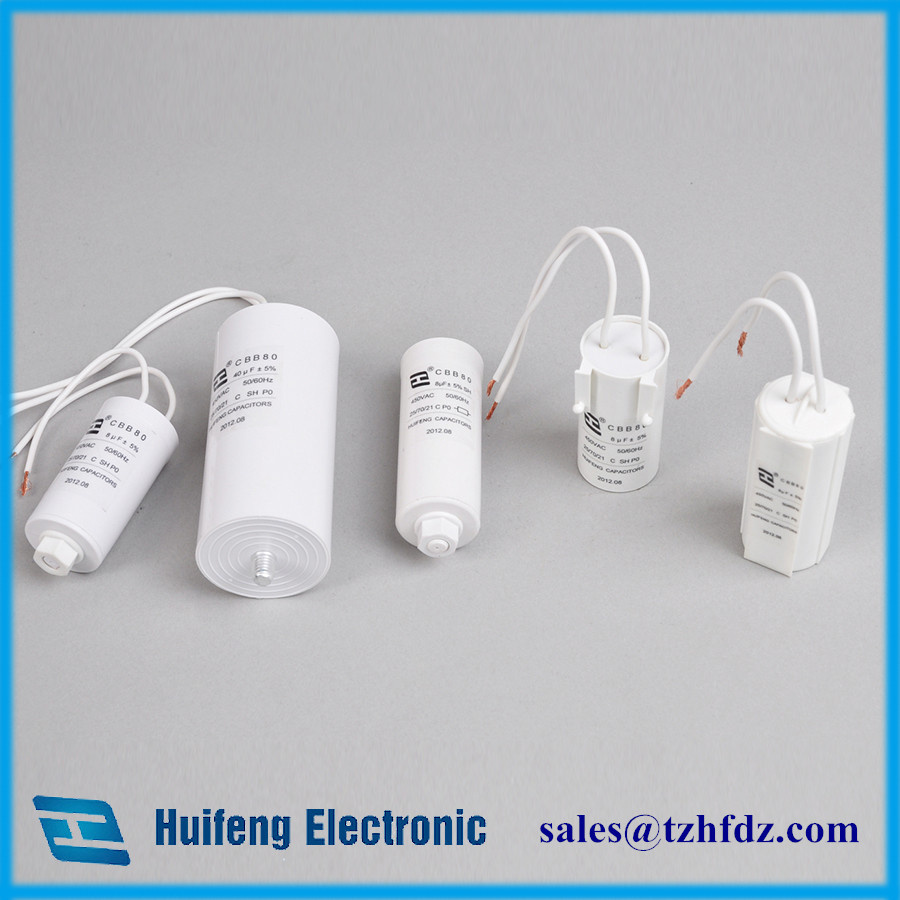

Cbb80 Light Capacitor

Name: Cbb80 Light Capacitor
Brand: all-electronics-online.com
SKU: 781699835
Availability: InStock
Rating: 4.6 (136 reviews)

Price:	US $ 1.8-2/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Polypropylene Capacitor
Application:	Lighting
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

Lighting capacitor ,SH ,for power factor
Capacitance: 2 to 50uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.

Small size, small loss and excellent self-healing property.
Very small dissipation factor, small inherent temperature rise.
High insulation resistance.
Good capacitance stability.
Available for fluorescent lamps,daylight lamps,halogen lamps, high pressure sodium lamps,etc.

Products feather	ITEM NO.	Rated Voltage (VAC)	Temperature (°C)	Rated capacitance (uf)	Diameter (D)mm	Length (L1)mm	PCS/CTN	G.W / N.W (KG)	MEASUREMENT (CM)
	CBB80-3	250	85	18	40	72	100	8.3/7.7	45.5x24.5x21
		250	105	3.4	30	67
		250	105	6	35	67
		250	105	6.3	35	67
		250	105	8	35	67
		250	105	9	35	72
		250	105	12	35	72	100	6.5/5.9	40x21x23
		250	105	14	35	72	100	6.4/6	40x21x23
		250	105	18	40	85
		250	105	20	40	85	100	7.4/7	40x21x23
		250	105	25	40	85
		250	105	32	40	85	100	9.5/9.1	45.5x24.5x25
		250	105	42	50	105
		250	105	45	50	105
		250	105	50	50	105
Products name	CBB80-3 compensation capacitor for lighting fixtures
Products type	Aluminium case cable type with stud
Technical parameter	1. Rated frequency: 50/60HZ
	2. Capacitance range: 1-50uf
	3. Capacitance deviation: +/-5%
Certificate	UL, CE ,ISO9001-2008,ROHS

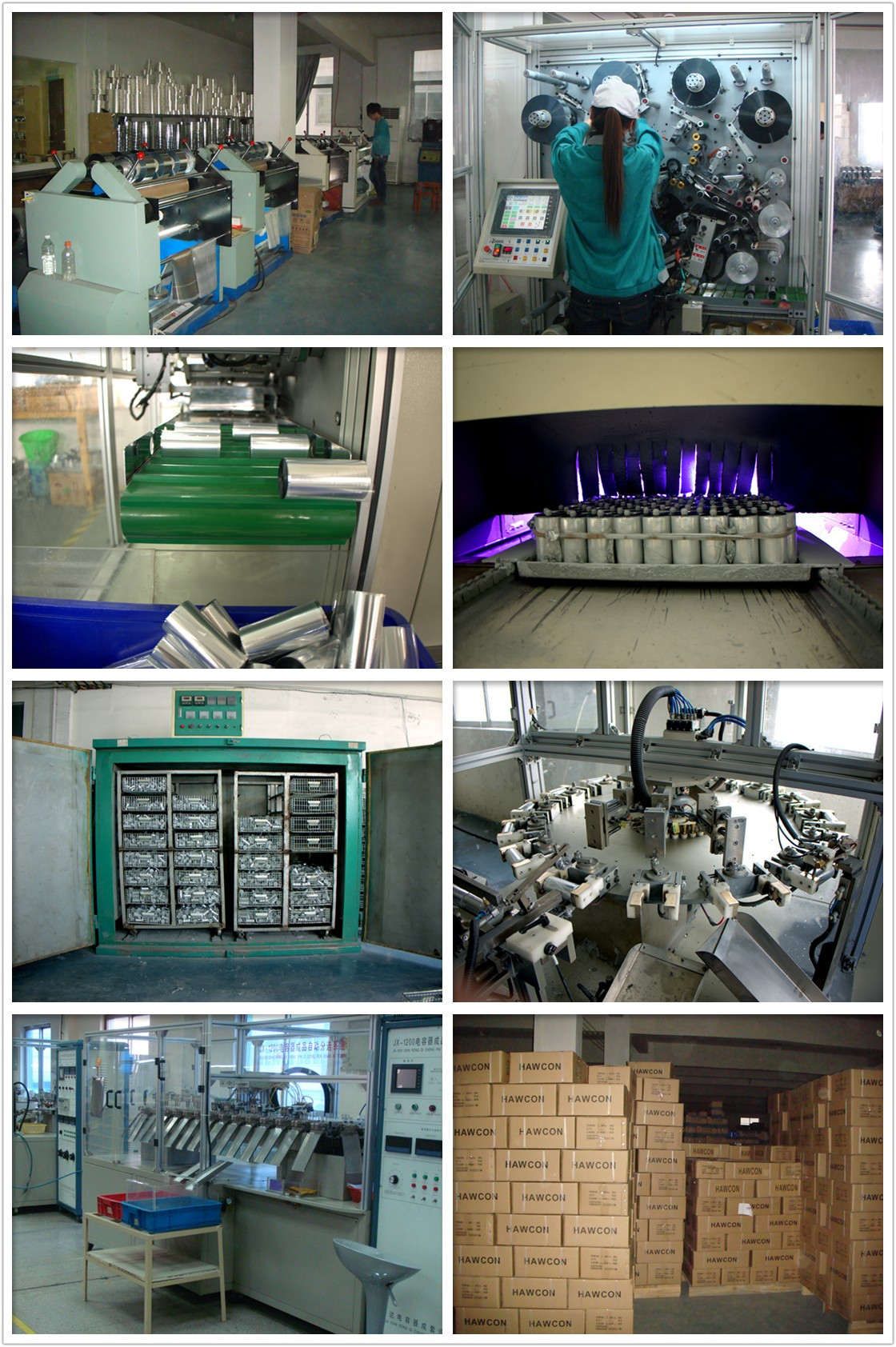

Founded in 1993, Taizhou Huifeng Electronic Co., Ltd. is specialized in manufacturing CD60 starting capacitors as well as CBB60motor running capacitors, CBB65 air conditioner capacitors, CBB61 fan/generator capacitors and CBB80 lighting capacitors. Our company covers an area of 7200 square meters and has more than 100 employees, including 10 engineers and technicians and 6 full-time inspectors. We have advanced automatic winding machines, spraying machines, automatic testing machines, automatic welding machines and dipping machines. We also have a group of well-trained and aggressive marketing team to meet the demands of clients from at home and abroad. We comply with ISO9001 Quality Control system Standard to ensure product quality. Besides, we have passed UL, VDE, CQC, CE and RoHS certifications.

Huifeng promotes "Huifeng Brand" all the time, follows the commercial spirit of "quality first, customer first, reputation first" and the principle of "people-oriented", develops high-tech industry and attaches importance to talent training. Our products are welcomed by customers from all over the world.

We have already established long-term business relationships with many enterprises, winning a good reputation among them. We also provide excellent service. You are welcome to visit our company and do business with us. We will try our best to provide high-quality products and excellent after-sales service for you.

Add. Qiaoli Village, Daxi Town, Wenling City, Zhejiang Province. 318050

Contact person: Ms. Summer

Tel: 0086 13968649796
