HUANGSHAN SAFETY ELECTRIC TECHNOLOGY CO., LTD. >> Cbb80 Lighting Capacitors with Ce, UL Certificate

Cbb80 Lighting Capacitors with Ce, UL Certificate

Cbb80 Lighting Capacitors with Ce, UL Certificate
Price: US $ 0.35-1.05/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: CBB80
Capacitance Range: 1-50UF
Rated Volatage: 250VAC to 630VAC
Ce ,RoHS Certificate: IEC61048&IEC61049 Standard
Standard: IEC61048&IEC61049
Package: Good Printing and Good Design
Delivery Time: 2 Weeks
Warranty Time: 3 Years
Material: Plastic Can or Al Can Design
Service: OEM and ODM
Temperature: :-40 to 105
Type: Polypropylene Capacitor
Application: Fan
Package Type: Surface Mount
Capacitance: 1-50uf

Product Description

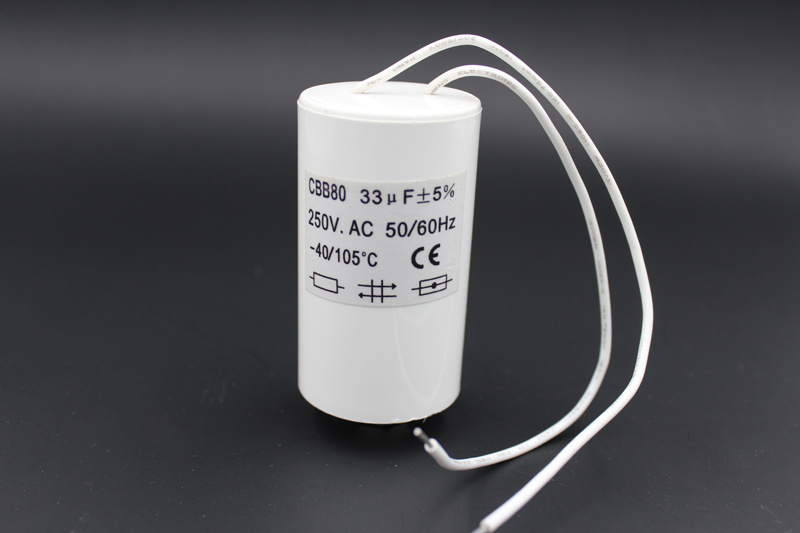

CBB80 LIGHTING CAPACITOR
Capacitance: 2 to 60uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.

Small size, small loss and excellent self-healing property.
Very small dissipation factor, small inherent temperature rise.
High insulation resistance.
Good capacitance stability.
Available for fluorescent lamps,daylight lamps,halogen lamps, high pressure sodium lamps,etc.


Capacitance Range:

2 to 60μF

Voltage Ratings:

110Vac to 630Vac.

Capacity volume variance:

±3%,±5%,±10%

Operating Temperature Range:

-40°C to +105°C

Operating Frequency:

50 to 60Hz

Loss tangent:

tgδ ≤0.002(100HZ)

Class of Safety Protection:

P2, P1

Class of Operation:

Class A, Class B

Dielectric Material:

Metallized Polypropylene

Case Material:

Plastic

Terminal

2 to 4 quick-disconnect, Wire


Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

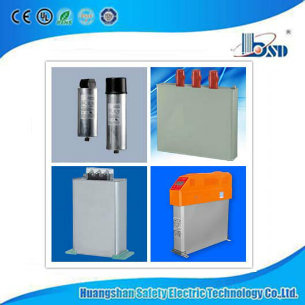

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
