Cbb80 Lighting Compensation Capacitor Lamp Capacitgor

Name: Cbb80 Lighting Compensation Capacitor Lamp Capacitgor
Brand: all-electronics-online.com
SKU: 802097325
Availability: InStock
Rating: 4.3 (104 reviews)

Price:	US $ 0.1-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB80
Type:	Polypropylene Capacitor
Application:	Lighting
Package Type:	Through Hole
Capacitance:	1-50uf

Product Description

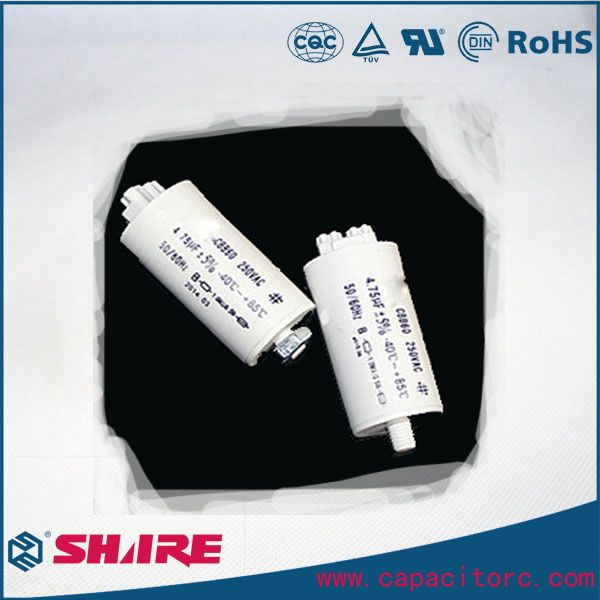

CBB80 Lighting Compensation Capacitor Lamp Capacitgor

CBB80 Capacitor Features:

Film capacitor(CBB80) lighting capacitor, polypropylene film lighting capacitors are widely used for illuminating lamps, etc.
1 plastic package outside the off, the appearance of consistency.
2 high-frequency loss, suitable for high current circuit.
3. High insulation resistance, good self-healing, long life.
4. Have a reliable security protection.

Lamp Capacitor Technical requirements:

Reference standard	IEC1048,EN61048
Climatic Category	40/85/21
Rated voltage	125VAC~630VAC
Capacitance Range	1~50μF
Capacitance deviation	±5%(J)
Withstand Voltage	Between terminals	1.6UR(5s)
	between terminals and case	2000VAC
Dissipation factor	≤0.2%(20°C,1kHz)
Insulation resistance	≥7500s	(20°C,1min)
Discharge performance	Un after the next break between the residual voltage less than 50V 60S
Steady-state over-voltage	Allowed under the long-running 1.1Un
	Allowed under the long-running 1.5Un

SHARE ELECTRONIC Company is a world-leading capacitor producer.

Our company was set up in 2008, NingGuo province. Since then, our company has

Been drived by an innovation system which centered on the needs of our

Customers. Such kind of system provid us a sustaining and healthy development

And help us to become one of the largest capacitor producer around the world. We

Has an annual aluminium electrolytic capacitor production capacity of 500 million

And our customers are covered more than 30 countries and regions all over the

World.

Our company has a scientific mangement and strong technical force. We estabished

A quality control system in accordance with the idea that quality is the basis of

Survival.

In the Internet era, we implement two strategic transformation. One is the business

Transformation. It means that we paid more attention on saling service instead of

Saling products. The other is the business mode transformation. We changed our

Business mode from the traditional one to a win-win situation. The orgainzational

Structure of SHARE is changed corresponding to the needs of the market.

It forms the organizational strucuture of flat network with the innovative basis of

Independent marketing units, driving the employees directly facing the market to

Acquire and satisfy the fragment and personnalized demand of the customers.

SHARE is becoming the leading global brand with the innovation through a winwin

Business form in the era of the Internet.
