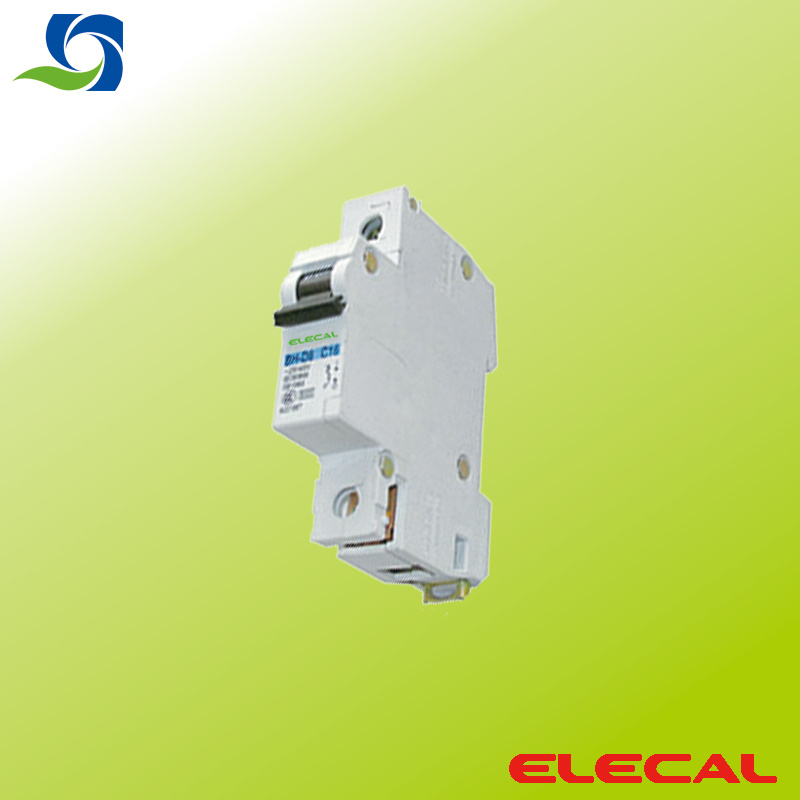

Cbh-D6 Miniature Circuit Breaker

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description



Aplication
CBH-D6 series circuit breaker is used in lighting distribuition system or motor idstribution system for protection overload and short circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two, three pole 415V circuit for overload and short circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & 3771.

Specification

Rated voltage 230/400V AC, max. 60V DC Rated current 6-63A Rated frequency 50/60Hz Rated breaking capacity 6KA Tripping characteristic B,C,D Cross-section of connecting lead 1-25mm2 Mechanical & electrical life 8000 Mtg Track of 35mm of IEC Bus.t 0.7-1.5mm Releasing method of overload Thermal-coil magnetic Accessories Insulation board Standards IEC 60898, EN 60898
