CC Series of Bar Colored POF Communication Cable

Name: CC Series of Bar Colored POF Communication Cable
Brand: all-electronics-online.com
SKU: 764225045
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	US $ 160-170/Roll
Trade Terms:	CFR,CIF,EXW
Min Order:	1/Roll
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC(R/G/Y)(2)-1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China(Mainland)
Application:	Submarine Cable
Conductor Material:	Plastic
Cover Material:	PE
Type:	Step Index Model
Wire Core Material:	PMMA
Model:	Cc(R/G/Y)(2)-1000
Brand:	Huiyuan

Product Description

CC Series of Bar Colored POF Communication Cable

1. Specifications

Model	Fiber dia. (mm)	Cable dia. (mm)	Coil length(m)	Color
CCR2-1000	1.0±0.06	2.2±0.1	1500	red
CCY2-1000				yellow
CCG2-1000				green
CCR -1000				red
CCY -1000				yellow
CCG -1000				green

2. Technical Parameters

Parameters	Unit	Numerical value
Fiber material	---	PMMA/Fluororesin
Jacket material	---	PE
Attenuation	dB/m	≤0.2
NA	---	0.5
Wavelength	nm	650
Incident angle	---	≤60°
Bandwidth	MHz· 100m	≥10
Bend radius	---	≥10times of fiber diameter
Operating temperature	ºC	-40~85
Storage temperature	ºC	-40~85
Refractive index	---	Step index

3. Features
Easy to install and connect, maintenance easy;
Heat and cold resistant(-20~70ºC);
Light in weight, energy saving and safe;
High bandwidth, excellent flexibility, vibration resistance;
Anti-electromagnetic interference, stable and reliable signal transmission;
Comply with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard;
Patent product (patent number: 201020135905.7)

4. Applications

Power system;
Sensor signal transmission;
Industrial control signal transmission;
Audio signal transmission;
Special LAN or access network;
Auto multimedia signals or control signal transmission;
Military Equipment.

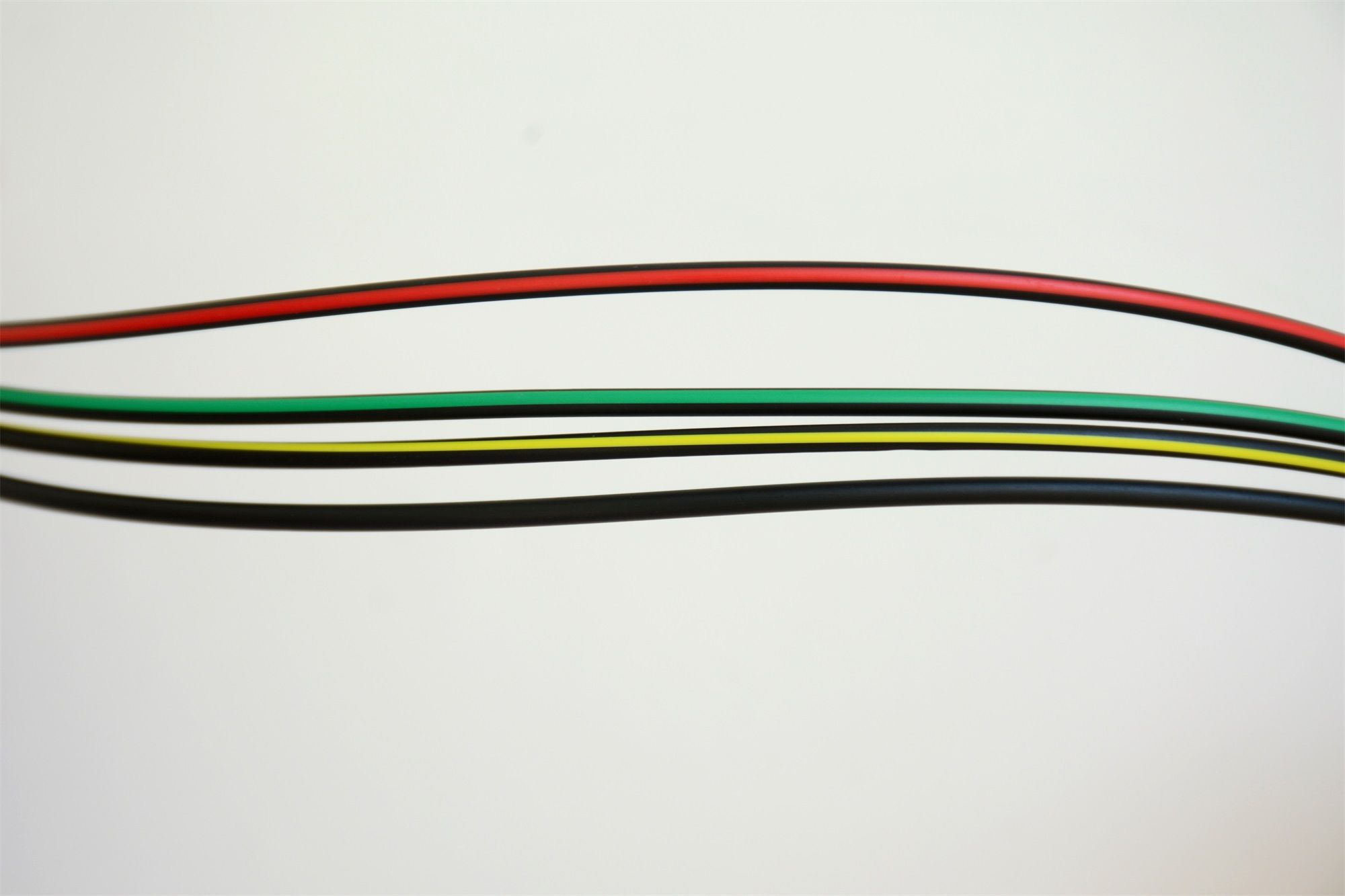

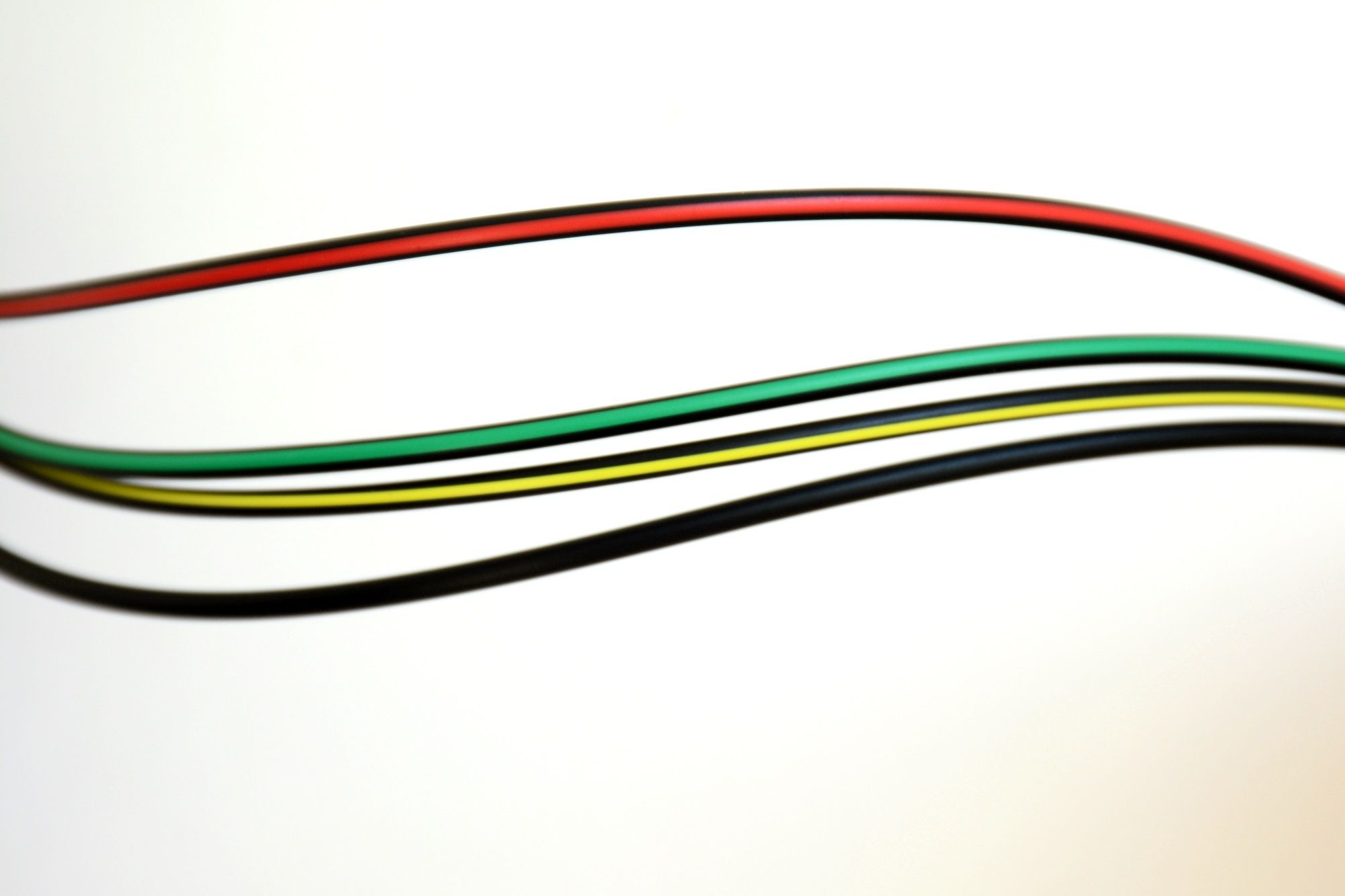

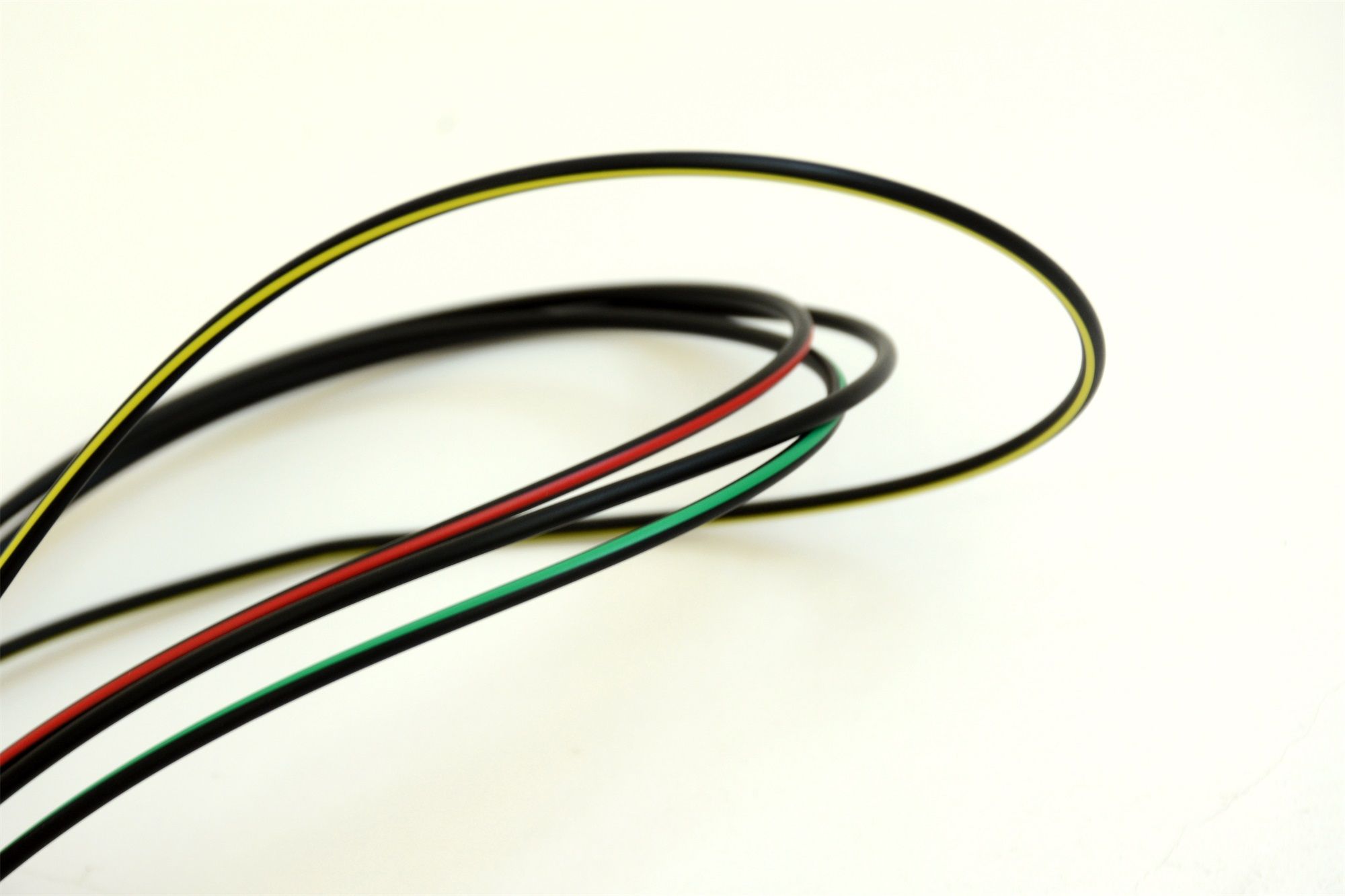

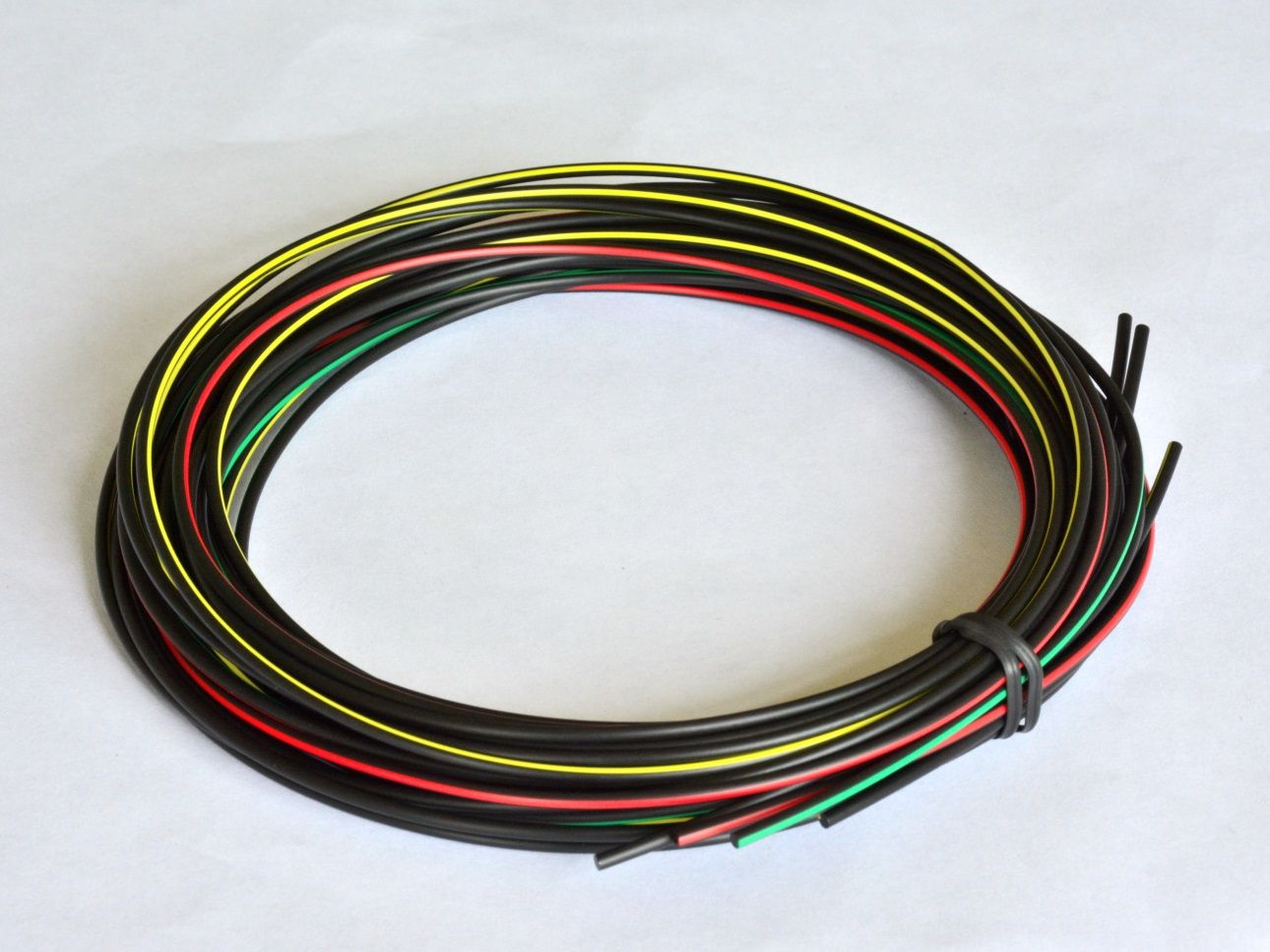

5. Product Pictures

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
