CC Series of Communication Plastic Optical Cable

Name: CC Series of Communication Plastic Optical Cable
Brand: all-electronics-online.com
SKU: 780940765
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	Negotiable/Roll
Trade Terms:	CFR,CIF,EXW
Min Order:	1/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China(Mainland)
Application:	Submarine Cable
Conductor Material:	Plastic
Cover Material:	PE
Certification:	RoHS
Type:	Step Index Model
Wire Core Material:	PMMA
Brand:	Huiyuan

Product Description

CC Series of Communication Plastic Optical Cable

1. Description

CC Series of Communication Plastic Optical Cable refers to the very kind of cable which has one black PE jacket wrapped around the communication plastic optical fiber, or which has one more PVC sheath covered the PE jacket. This cable is mainly used in short distance information transmission between 50m to 100m.

2. Specifications

Model	Attenuation (dB/m)	Fiber diameter (mm)	Cable diameter (mm)	Coil length (m)
CC2-1000U	low loss ≤0.16	1.0±0.06	2.2±0. 07	2600/5200
CC2-500	≤0.25	0.5±0.03	1.0±0.05	1000/6000
CC2-750	≤0.2	0.75±0.045	2.2±0.07	2700
CC2-1000	≤0.2	1.0±0.06	2.2±0. 07	2600/5200
CC2-1500	≤0.2	1.5±0.09	2.5±0.1	700
CC-500	≤0.4	0.5±0.03	1.0±0.05	1000/6000
CC-750	≤0.3	0.75±0.045	2.2±0.07	2700
CC-1000	≤0.3	1.0±0.06	2.2±0.07	1500/2500/5000
CC-1500	≤0.3	1.5±0.09	2.5±0.1	700

3. Technical Parameters

Parameters	Unit	Numerical value
Fiber material	---	Polymethylmethacrylate(PMMA)/ Fluroresin
Jacket material	---	PE
Numerical aperture	---	0.5
Wavelength	nm	650
Incident angle	---	≤60°
Bandwidth	MHz·100m	≥10
Bending radius	---	≥10 times of fiber diameter (Temporary)
Bending radius	---	≥20 times of fiber diameter (Permanent)
Operating temperature	ºC	-40 ~ +85(CC2 series)
Operating temperature	ºC	-40 ~ +70(CC series)
Storage temperature	ºC	-20 ~ +70
Refractive index	---	Step index

4. Applications

Sensor signal transmission;
Industrial control signal transmission;
Audio signal transmission;
Special LAN or access network;
Auto multimedia signals or control signal transmission;
Military equipment.

5. Features

Better compression resistance, tensile property, rub resistance, and anti-aging performances with the black PE jacket;

The unique tight jacket ensures the fiber won't slip when processing or using, but not difficult to strip off a little sheath;

High bandwidth, anti-electromagnetic interference, steady signal transmission, meet the National Communication Industry Standard (YD/T 1447-2006) of Plastic Optical Fiber for Communication and the National Communication Industry Standard (YD/T 1258.6-2006) of Indoor Optical Cable Chapter 6: Plastic Optical Cable.

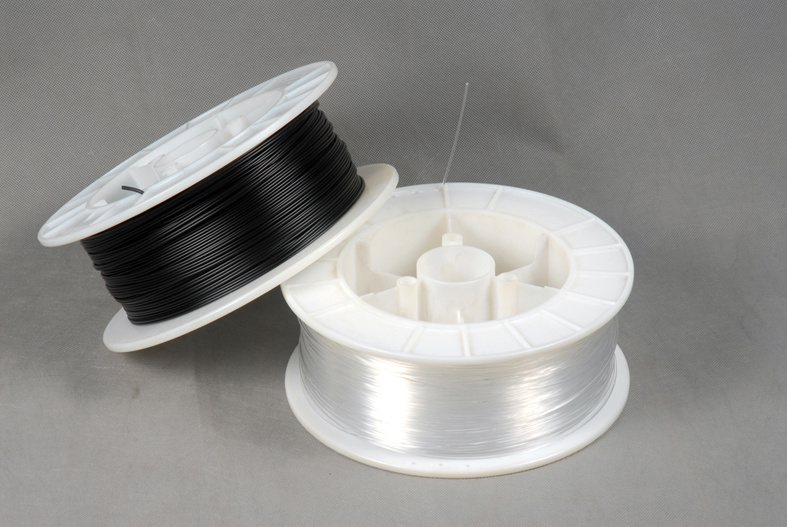

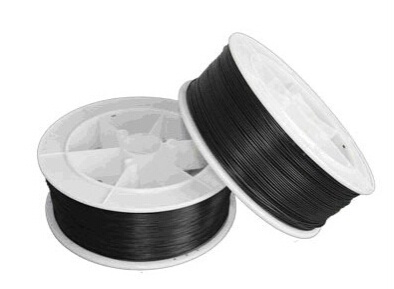

6. Product Pictures

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
