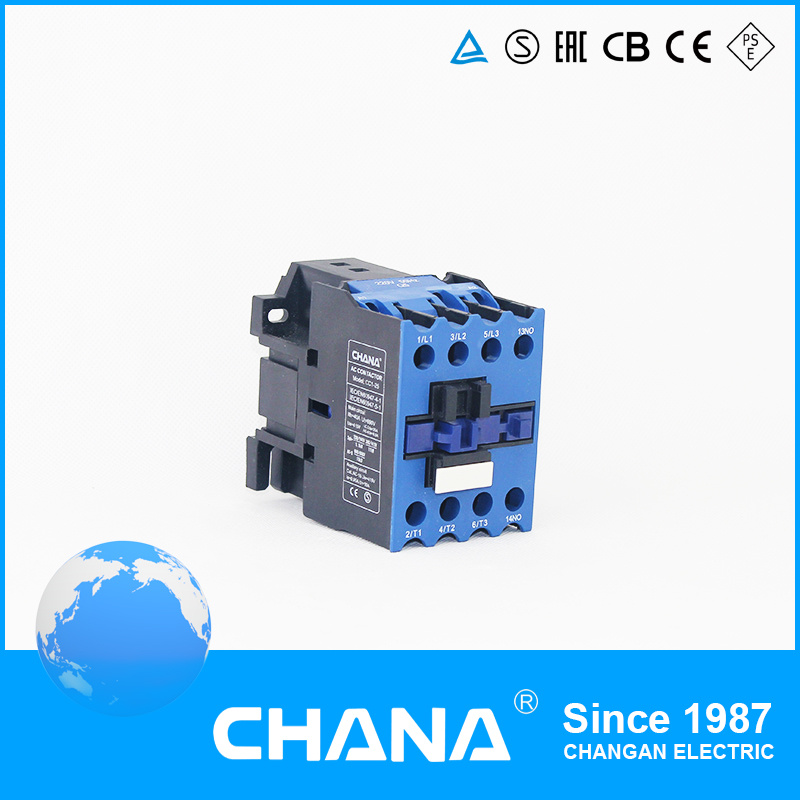

Cc1-18 18A 25AMP 3p 4p AC Coil Magnetic Contactor

Name: Cc1-18 18A 25AMP 3p 4p AC Coil Magnetic Contactor
Brand: all-electronics-online.com
SKU: 809946395
Availability: InStock
Rating: 4.5 (44 reviews)

Price:	US $ 2.808-2.92/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-18
Coil:	AC
Frequency:	50/60Hz
Pole:	3p/4p
Export Market:	World
Quality:	AAA

Product Description

Electrical 3phase 24v coil 220v AC coil motor control 9-95A types of contactor

Product Description

Specifications:
CC1-D=LC1-D,
CC1-F=LC1-F,
CC1-K=LC1-K

1,General

Appliacatuon:Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1

Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

60Hz

50/60Hz

Control Coil Valtage (Dc Coil Operation)

Volts(VAC)

110

220

Code

2 Technical Date

Model No.		CC1-09	CC1-12	CC1-18	CC1-25	CC1-32	CC1-40	CC1-50	CC1-65	CC1-80	CC1-95
Rated Conventional Heating Current	Ith(A)	20	20	32	40	50	60	80	80	100	125
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	9	12	18	25	32	40	50	65	80	95
Rated Operation Current Ue=380/415V	AC-4 Le(A)	3.5	5	7.7	8.5	12	18.5	24	28	37	44
	220/240 kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
Power Controlled 3Ph Cage Motor AC3	380/415 kW	4	5.5	7.5	11	15	18.5	22	30	37	45
Power Controlled 3Ph Cage Motor AC3	660/690 kW	5.5	7.5	10	15	18.5	30	33	37	45	45
Eletrical life(x10^3 operations)	AC-3	1000	1000	1000	1000	800	800	600	600	600	600
Eletrical life(x10^3 operations)	AC-4	200	200	200	200	200	150	150	150	100	100
Mechainical life(x10^3 operations)		10	10	10	10	8	8	8	8	6	6
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
Matched Fuse	A	20	20	32	40	50	63	80	80	100	125

Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..

1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

Shipping:

1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:

1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
