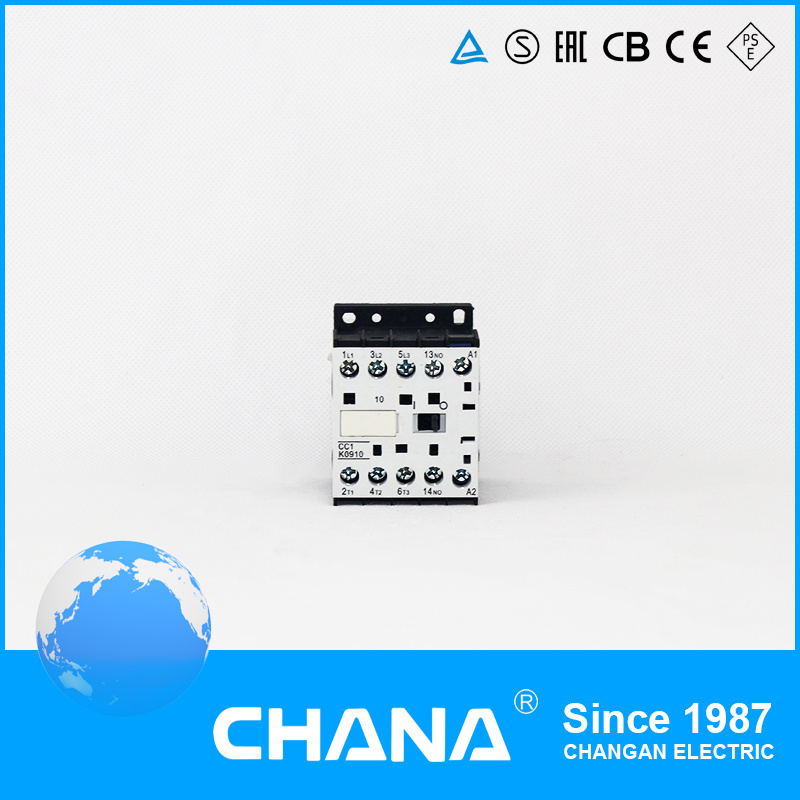

Cc1 Series Mini AC/DC Contactor Cc1-12K 20A
| Price: |
US $ 2.97-3.03/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
CC1-12K |
| Rated Voltage: |
690V |
| Rated Convertional Heating Current: |
20A |
| Utilization Category: |
AC-3, AC-4 |
| Main Coil Voltage: |
12,24,36,48,110,220V |
| Electrical Life: |
1000000 Times(AC3) |
| Mechanical Life: |
1 Million Times |
| Frequency: |
50Hz/60Hz |
| Export Market: |
Global |
| Quality: |
AAA |
Product Description
Description For CC1 Mini ContactorGeneral of DC mini contactor
Application: Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
DC mini contactor Electric ratings: AC50/60Hz, 690V, up to 12A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
DC mini contactor Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5° ;
DC mini contactor Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.
Control Coil Voltage(AC Coil Operation)About US:Changan Group Co., Ltd specializing in the R&D, manufacture and sale of low voltage Products, such as Circuit Breakers, Contactors, Relays, Switches, Distribution boxes and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS. CB IEC TUV
2. We have 27 years of manufacture and 17 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Bengal, Thailand, south American, Mid-east market and so on. | Volts(VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 |
50HZ
Code 60HZ
50/60HZ | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | - | S5 | Y5 |
| B6 | - | D6 | E6 | F6 | G6 | M6 | - | U6 | Q6 | - | R6 | T6 | - | - |
| B7 | - | D7 | E7 | F7 | - | M7 | P7 | - | Q7 | N7 | R7 | - | - | - |
| Control Coil Voltage(DC Coil Operation) |
| Volts(VDC) | 12 | 24 | 36 | 48 | 110 | 220 |
| Code | JD | BD | CD | ED | FD | MD |
| Standard | IEC/EN60947-4-1 IEC/EN60947-5-1 |
| Model No. | | CC1-06E | CC1-09K | CC1-12K |
| Rated Conventional Heating Current | lth(A) | 16 | 20 | 20 |
| Rated Voltage Ui(V) | Ui | 690 | 690 | 690 |
Rated Operation Current
Ue=380/415V | AC~3 le(A) | 6 | 9 | 12 |
| AC~4 le(A) | 1.5 | 3.5 | 5 |
Power Controlled
3ph cage Motor
AC~3 | 220/240V KW | 2.2 | 2.2 | 3 |
| 380/415V KW | 3 | 4 | 5.5 |
| 660/690V KW | 5.5 | 5.5 | 7.5 |
| Electrical life | AC~3 | 1000 | 1000 | 1000 |
| AC~4 | 200 | 200 | 200 |
| Mechanical life | | 10 | 10 | 10 |
| Matched Fuse | Size | RT16-00 | RT16-00 | RT16-00 |
| A | 20 | 20 | 20 |
| Main Fuse | 3P or 4P |
| Auxiliary circuit | 1NO or 1NC |
How to Order?1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM is welcomed. Free OEM for more than usd3000 orders.Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptableWarranty:1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!Our ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.
FAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
