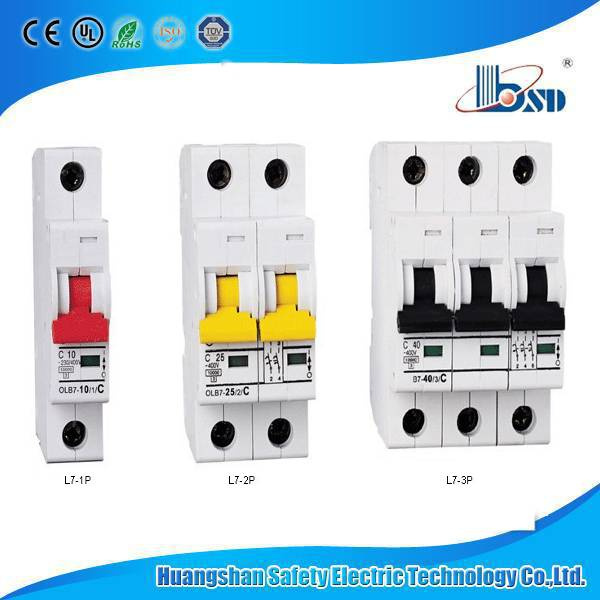

CCC Non-Polarized Solar 10ka L7 MCB, Mini Circuit Breaker

Prod Model:	L7
Pole Number:	1,2,3,4 P
Warranty Time:	3 Years
Certificate:	Ce ,CQC
Service:	OEM and ODM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	MCB

Product Description

Features:

1. Protection against both overload and short circuit
2. High short-circuit capacity
3. Contact position indication
4. Applicable to terminal and pin/fork type busbar connection
5. Easy mounting onto 35mm DIN rail

Special Tips:

1. MCB is for non-professional operation by those untrained, and no maintenance is required
2. Satisfying conditions and applications as mentioned above,MCB with "ON-OFF" indicating device is considered suitable for isolation function.
3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at    upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.

Specification:
Model NO.: New L7 MCB 1P ,2P 3P
Arc-extinguishing Medium: Air
Type:Circuit Breaker
Structure: MCB
Breaking Capacity:6KA or 10KA
Certification: ,CE,CB,CCC,ISO9001
Operation: Electric Type
Tripping Characteristics:B(1-5ln), C (5-10ln), D (10-15ln)
IP Grade:IP20
Color: According to Customer Requirement
Inner Material: According Customer Need
Product Description



Product specification and model	L7
Standard	IEC60898/GB10963
Product Certifications	CE,,ISO9001
Product Function	Short circuit protection, Over current protection
Number of Poles	1P,2P,3P
Rated Current(A)	1,3,6,10,16,20,25,32,40 ,50,63
Breaking Capacity(A)	6KA or 10KA
Rated Voltage(V)	230/400
Rated Frequency	50/60HZ
Endurance	≥20000
Circumstance Temperature	-5 °C ~+40 °C
Electrical Life	No less than 8000 operations
Mechanical Life	(o-c)no less than 20000 operations
Protection Degree	IP20
