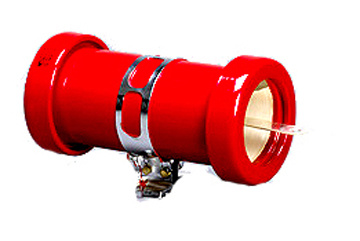

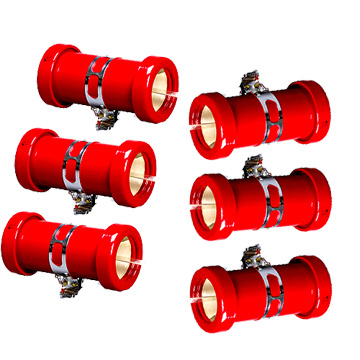

Ccg5 6800PF Cylindrical- Shaped High Power Ceramic Capacitor
| Price: |
US $ 58.35/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
30/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TMCC02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
15kv~30kv |
| Type: |
Ceramic Capacitor |
| Application: |
High-Frequency Electric Oven, Plastic Thermal Bond |
| Package Type: |
Soldering Terminal |
| Capacitance: |
1000~6800PF |
Product Description
CCG5 Cylindrical- shaped High Power Ceramic Capacitor
is with mature processing technology, stable and reliable performance and complete range of models.
Features: This product have the advantages of high withstand voltage, low dissipation factor, large reactive power, high frequency, long service life time and easy-installation, etc.
Application: It's mainly used in equipment of high-frequency welded pipe, high-frequency drying, high-frequency electric oven, plastic thermal bonding machine and radio communication equipment.
Specifications:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.

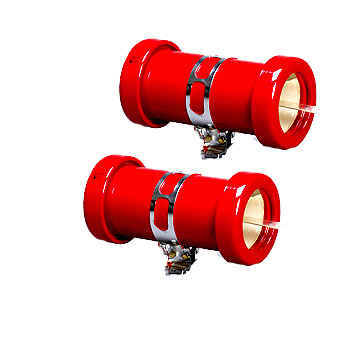

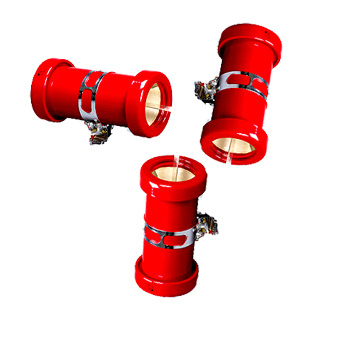

Pictures:
| Model | Nominal power capacity | Rated voltage(KV) | Reactive power | Current Maximum | Dimension(mm) | Temperature coefficient |
| (PF) | DC | HF(RMS) | (KVA) | (A) | D | H | L | C | (PPM/ ºC ) |
| CCG5-1 | 1000 | 30 | 20 | 100 | 40 | 120 | 140 | 170 | 42 | -750 |
| CCG5-2 | 1500 | 20 | 14 | 155 |
| CCG5-3 | 2200 | 160 |
| CCG5-4 | 3300 | 15 | 10 | 182 |
| CCG5-5 | 4700 | 184 |
| CCG5-6 | 5600 | 210 |
| 20 | 14 | 120 | 240 |
| 30 | 20 | 300 |
| CCG5-7 | 6800 | 20 | 14 | 250 |
