| Prod Model: |
CCTR-805 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
5 Years |
| Function: |
GPRS |
| Size: |
90mm*55mm*23mm |
| Weight: |
85g |
| GPS Positioning Accuracy: |
10-15m |
| Type: |
GPS Tracker |
| Use: |
Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Model: |
Cctr-805 |
| Brand: |
Etrack |
| Certification: |
Ce |
Product Description

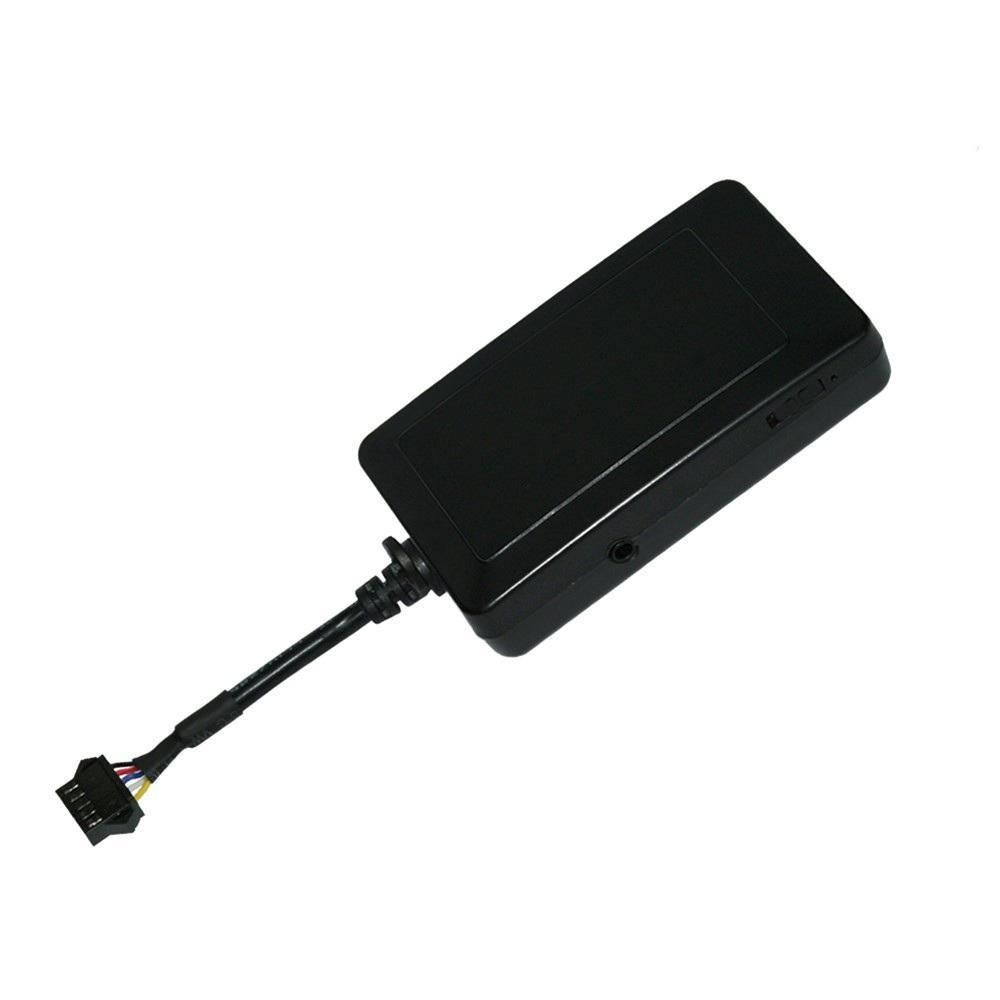

Cctr-805 3G WCDMA Vehicle Truck Car GPS Tracker with Ublox Chip, Remote Turn off Car Engine
Primary Competitive Advantages:- Built in 3G WCDMA & 2G GSM module & u-Blox GPS module
- External microphone for hearing voice in the car
- Auto download & configure APN & GPRS, Also can be set by SMS
- LBS locate (GSM network base station locate) without GPS
- Life time no platform Service charge (Our free tracking platform)
- U-Blox GPS module with A-GPS for fast locating
- Uploading tracking can be controlled by ON signal & Shock sensor
- GPRS protocol can be changed to work with client platform
- Listening or Monitor sound around tracker
- Remote Turn Off Car Engine (Cut Oil Power)Key Specifications/Special Features:
- External microphone for hearing voice in the car
- Auto download & configure APN & GPRS, Also can be set by SMS
- LBS locate (GSM network base station locate) without GPS
- Life time no platform Service charge (Our free tracking platform)
- Built in 3G WCDMA & 2G GSM module & u-Blox GPS module
- U-Blox GPS module with A-GPS for fast locating
- Device can be located by SMS or calling without server
- Report location by SMS with Google map link without server
- Report location by SMS with text description without server
- Multi-level user role for dealer / distributor / fleet management / Single user
- Alarm can be noticed by SMS & calling
- Built in rechargeable Li battery for backup & power down alarm
- Upload interval is 30 seconds & can be set by user sms
- Stop uploading after the tracker stop moving 2 minutes
- Uploading tracking is controlled by shock sensor
- Uploading tracking can be controlled by ACC/ ON signal
- Upload web or IP can be set by SMS
- Tracker status can be check by SMS
- Can Freeze car running on the platform (Remote turn off engine)
- Can preset 3 phone number by SMS
- Can send SOS or alarm information to preset phone
- Open GPRS protocol to client for adding protocol to platform
- GPRS protocol can be changed to work with client platform
- Visit website can track the car or display the history tracking
- History tracking can be saved on server over 6-12 months
- Suit for tracking car, bus, truck, taxi, rent cars, school bus, transportation vehicle, moving equipment etcSpecification:| Working Voltage | 7-36V DC | GSM Frequency | 850/900/1800/1900 MHz (Global) |
| Communication Chip set | Inter (USA) | WCDMA Frequency | 850(800)/900/1900/2100 MHz (Global) |
| GPS Chip Set | MTK | Locate precision | 5-10 Meters |
| 2G 3G / GPS Antenna | Internal | Tracking Current | <150mA /5V |
| Standby Current | < 3 mA /5V | Recharging Current | <400mA 5V |
| GPS Hot Start Time | 1 second average | GPS Cold Start Time | 36 seconds average |
| Battery | 800mAh (Polymer) | Working Temperature | -20 ºC to +55 ºC |
| Absolute Working Temperature | -40ºC to +80ºC | Storage Temperature | -40 ºC to +80 ºC |
Package Include:1pc* Main unit CCTR-8051pc* 5P Wires1pc* SOS button & Wire1pc* Microphone & Wire1pc* User Manual (CD or Print)Notes:Although the platform is free, but after receiving the ID to provide the activation
Shenzhen Haoday Technology Co., Ltd. Established in 2006, with more than 10 year's experience in GPS tracker, GPS fleet tracking system, is a leading hi-tech supplier and specializing in the fields of GPS pesonal and vehicle trackers.
Haoday can provide you professional digital products. Our products is cost-competitive, the quality is outstanding, and after-sale service is best.
We have the faith that "customer is the biggest asset". Customer's satisfaction is our greatest will, We believe that we will meet all your demands.
After many years of efforts, our company formed a team of professional and responsible sales. All email inquiries will receive a response within one working days. Looking forward to working with you.
