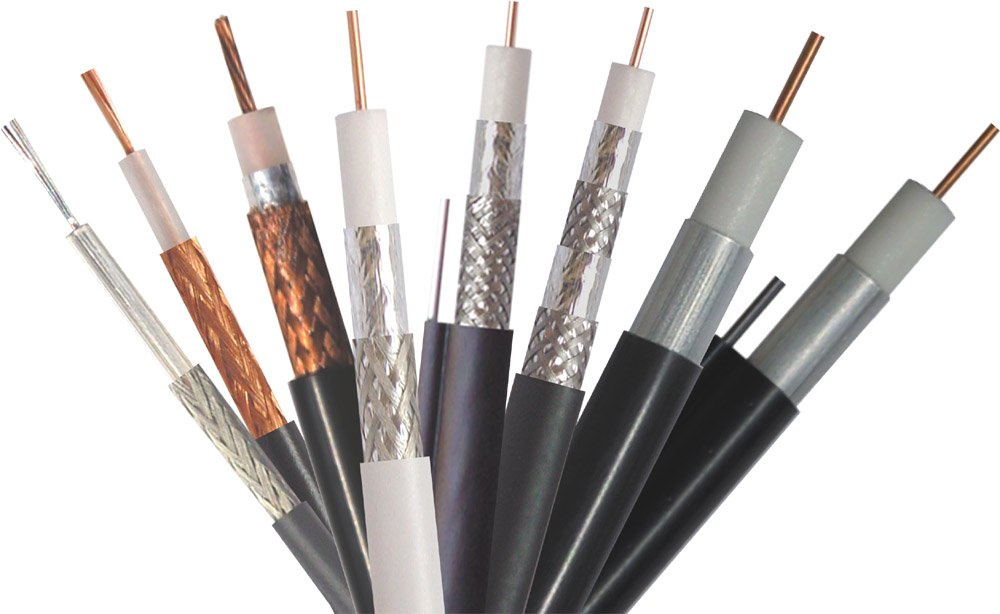

CCTV 75ohm 500 Cable Trunk Coaxial Cable

Name: CCTV 75ohm 500 Cable Trunk Coaxial Cable
Brand: all-electronics-online.com
SKU: 705528195
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	Negotiable750m
Trade Terms:	FOB,CFR,CIF
Min Order:	5750m
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable:	Qr540, P3 500
Jacket:	PVC
Jacket Color:	Black/White/Color
Impedance:	75 Ohm
Insulation Material:	Foamed PE
Certificate:	ISO9001, Cl2/CATV/Cm UL
Cable Series:	Jcajcam
Certification:	ISO
Cover Material:	PE
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Application:	Coaxial Cable
Type:	Coaxial Cable

Product Description

CATV trunk cable JCA JCAM P3 500 coaxial cable

Description

*Solid aluminum tube swaged onto dielectric code

*fully bonded Copper clad, center conductor PE jacket messenger

*Center Conductor: CCA, Φ 0.109"(2.77mm)

*Dielectric: Micro-celluar Foam PE, Φ 0.45" (11.43mm)

*Shield: Solid aluminum tube

*out conductor thickness: 0.024"(0.61mm)

*Jacket: PE jacket diameter: Φ 0.056(14.22mm)

*thickness of out jacket: 0.030(0.76mm)

Mechanical characteristic

Minimum Bend Radius: 10.2mm(0.253")

Maximum Pulling Tension: 10.2mm(0.253")

Electrical performance

Capacitance: 15.3± 0.1 pF/ft, (50± 3 nF/km)

Impedance: 75± 3 ohms

Velocity of Propagation: 87% (Nominal)

Maximum DC Loop Resistanc1.72 ohms/1000 ft (5.64 ohms/km)

Attenuation: @68 F(20° C)

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
